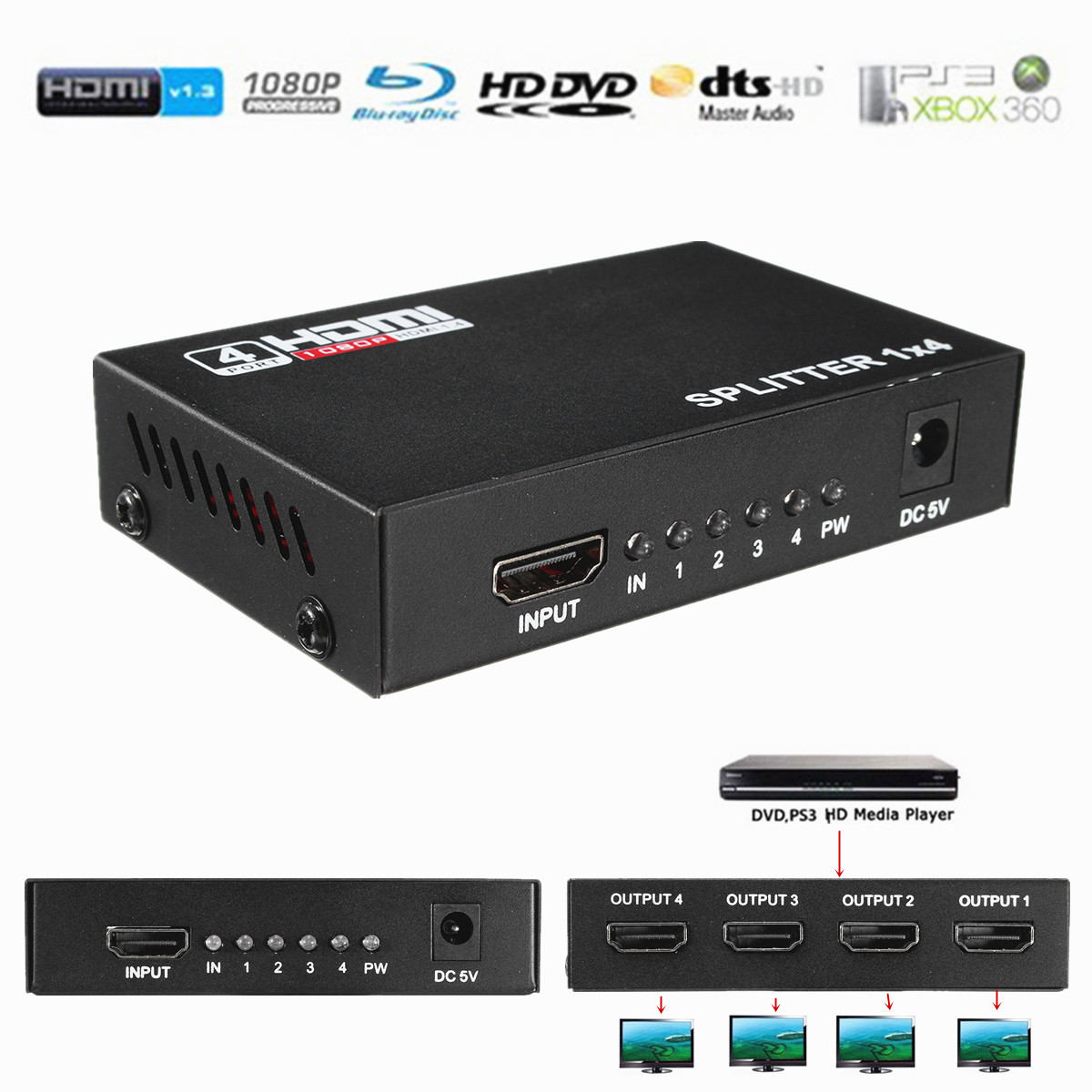

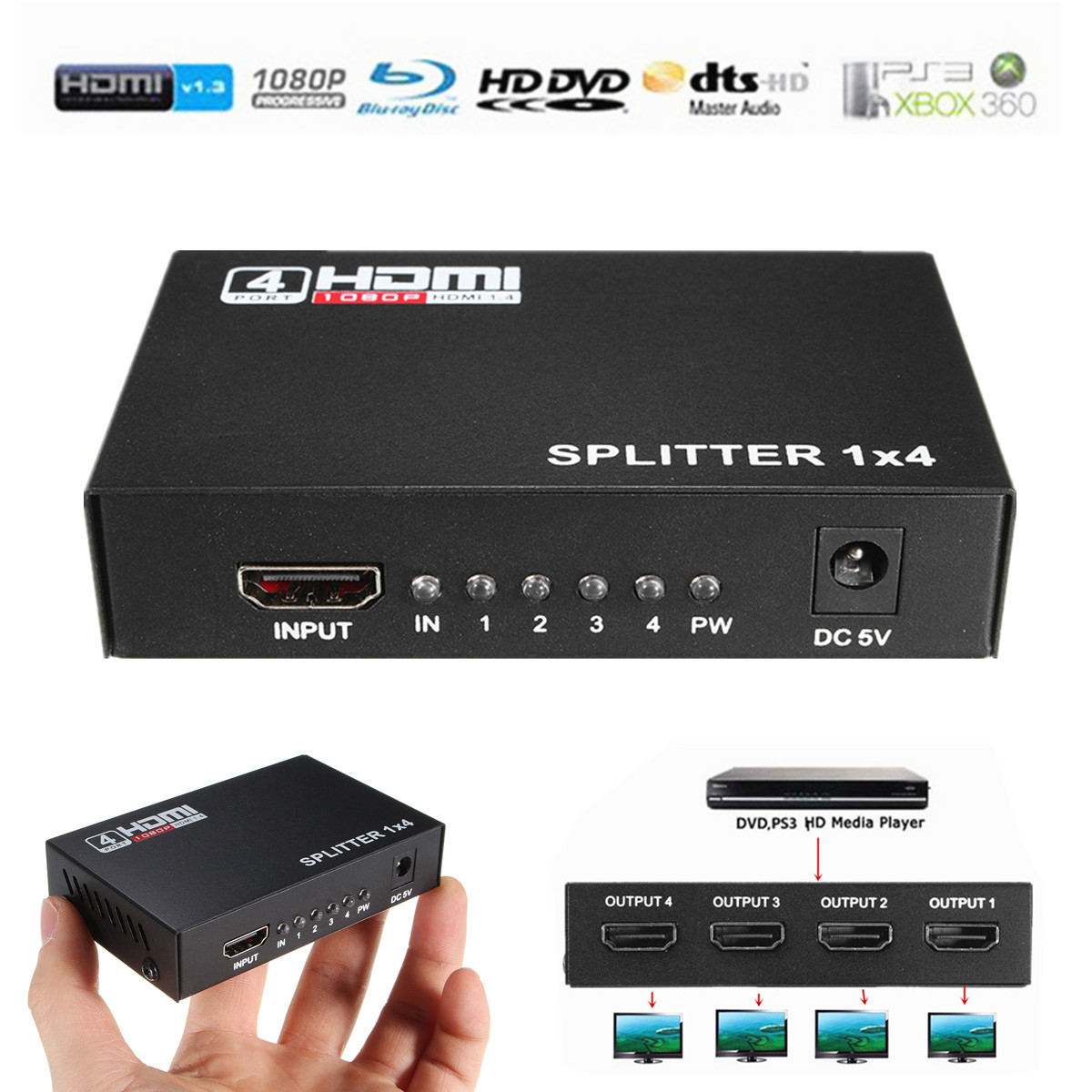

1.Name:1x4 port HDMI Splitter
2.Input Video Signal:0.5-1.0 volts p-p
3.Input DDC Signal:5 volts p-P(TTL)
4.Max Signal Link Range:1920x1200 1080p, 3D 1080p / 24Hz
5.HDMI Resolution:480i / 576i / 480P / 576P / 720P / 1080i / 1080P
6.DVI Resolution:480P / 576i / 576P / 720P / 1080i / 1080P / 24Hz
7.HDMI Version:HDMI 1.4, 3D
8.Ports:HDMI Standard (Female)
9.Power supply:DC 5V/2A (100V - 240V AC/DC Power Adapter included)
10.Bandwidth:up to 225MHz
11.EDID Duration:4 seconds
12.Output Video:HDMI 1.4V + HDCP1.0/1.1/1.2/1.2a/1.4
13.Operating Temperature Range:-5 ~ +35℃
14.Operating Humidity Range:5-90% RH
15.Dimensions:Approx.9.4 * 6 * 2.1cm / 3.70 * 2.36 * 0.83in

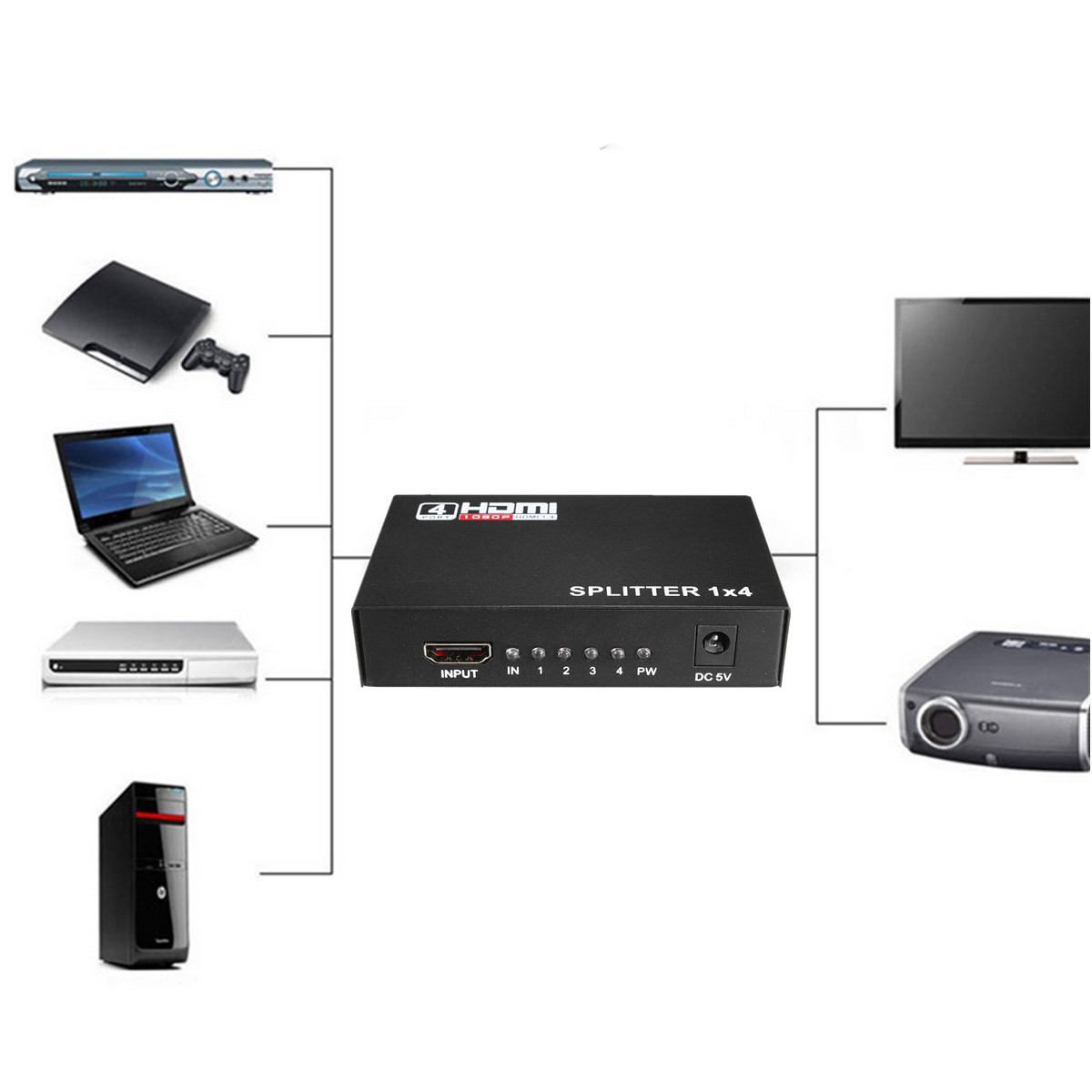

1.This compact HDMI splitter can reliably distribute a single HDMI source to four (4) synchronized outputs. More outputs can be created by cascading multiple splitters. Ideal for setting up HD video entertainment or informative displays in offices, shopping centers, conference rooms, schools, and training facilities.
2.Distributes HDMI input into four identical outputs, all four outputs are synchronized.
3.Support 120HZ 3D projection conversion (If your devices support 3D).
4.Support compressed and uncompressed digital audio formats including DTS-HD , Dolby True HD and LPCM7.1.
5.Compatible with Playstation, Xbox, Wii Consoles, Blu-Ray, satellite boxes, TV Box, laptops, computer.
6.Achieve long distance transmission of HDMI signal of more than 15 meters.
7.Supports HDCP, 8bit per channel (24bit all channel) deep color.
8.Cascaded: Large distribution achieved by cascading more HDMI amplifier splitter.
9.Support high-definition video, high-quality, clear, up to 1080p HDTV resolution.
10.Having signal buffering, amplification.
11.Easy to use, takes only seconds to install.
1 x 1X4 4 Port V1.4 3D 1080P Full HD HDMI Splitter Hub
1 x Power supply (We wiil send you a free adapter according to your country)
