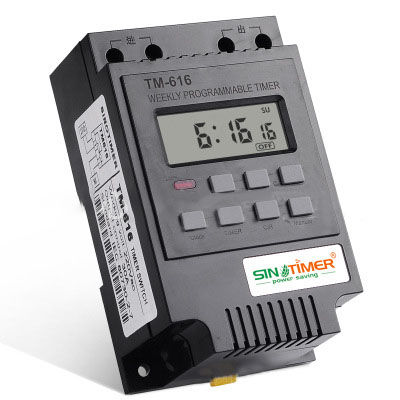

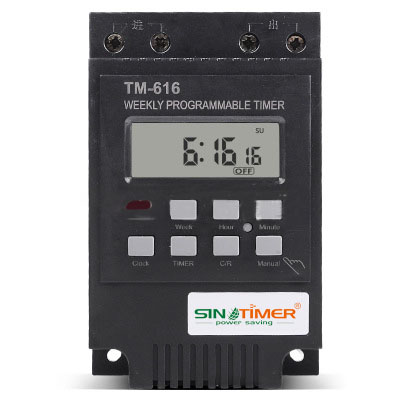

220V 110V 12V 30AMP TM616 Control Load 7 Days Programmable Digital TIME SWITCH Relay Timer Control

220V 110V 12V 30AMP TM616 Control Load 7 Days Programmable Digital TIME SWITCH Relay Timer Control
220V 110V 12V 30AMP TM616 Control Load 7 Days Programmable Digital TIME SWITCH Relay Timer Control
220V 110V 12V 30AMP TM616 Control Load 7 Days Programmable Digital TIME SWITCH Relay Timer Control
220V 110V 12V 30AMP TM616 Control Load 7 Days Programmable Digital TIME SWITCH Relay Timer Control
220V 110V 12V 30AMP TM616 Control Load 7 Days Programmable Digital TIME SWITCH Relay Timer Control
220V 110V 12V 30AMP TM616 Control Load 7 Days Programmable Digital TIME SWITCH Relay Timer Control
220V 110V 12V 30AMP TM616 Control Load 7 Days Programmable Digital TIME SWITCH Relay Timer Control
220V 110V 12V 30AMP TM616 Control Load 7 Days Programmable Digital TIME SWITCH Relay Timer Control
220V 110V 12V 30AMP TM616 Control Load 7 Days Programmable Digital TIME SWITCH Relay Timer Control
  • Stock: In Stock
  • Model: 1212531
$27.12
Ex Tax: $27.12

Available Options








220V-110V-12V-30AMP-TM616-Control-Load-7-Days-Programmable-Digital-TIME-SWITCH-Relay-Timer-Control-1212531

220V-110V-12V-30AMP-TM616-Control-Load-7-Days-Programmable-Digital-TIME-SWITCH-Relay-Timer-Control-1212531

220V-110V-12V-30AMP-TM616-Control-Load-7-Days-Programmable-Digital-TIME-SWITCH-Relay-Timer-Control-1212531

220V-110V-12V-30AMP-TM616-Control-Load-7-Days-Programmable-Digital-TIME-SWITCH-Relay-Timer-Control-1212531

220V 110V 12V 30AMP TM616 Control Load 7 Days Programmable Digital TIME SWITCH Relay Timer Control

Why choose SinoTimer TM616?

ONE:  Simple wiring,220V input, 220V output, no need to ask an Electrical Engineer,you can do it by yourself at home.
TWO: Excellent load capacity, upto 6500Watt,30AMP@250Vac.
THREE: Easy program, everyone can program it after he reads the manual JUST one time.
FOUR: Stable performance because of professinal manufacturing in power saver since 2002.
Five: Confirm to CE approval, LVD and EMC passsed.

Feature :

* You can use the tier to SWITCH ON/OFF any elctrical equipments at a preset timer
* Ideal for household use in DB Boards
* 6500 Watt / 30 Amps
* 24 hours / 7 days a week programmable
* Built-in battery for backup the memory (save the programs you set)when power failure
* Auto time error correction +/- 30 sec, weekly
* Repeat programs with 17 on/off settings, and setting on/off manually

Specification :

Model : TM616
Temp.range: -20°C+50°C
Ui:220~240V, 50/60Hz
Power consumption 4.5 VA (MAX)
Display: LCD
Switching contact: 1 changeover switch
Programs:17 on/off each day or week
Hysteresis 2 sec/day (25°C)
Mini interval: 1min
Capacity: 30(16) 250V AC
Black-out: 60 days
Timer range: 1min~168hr
Recharge battery: 1.2V 40Ma
Average error: 1s/24h, 25°C
Weight: 0.39kg

Package included:

1 x Programmable Timer
1 x English User Manual
