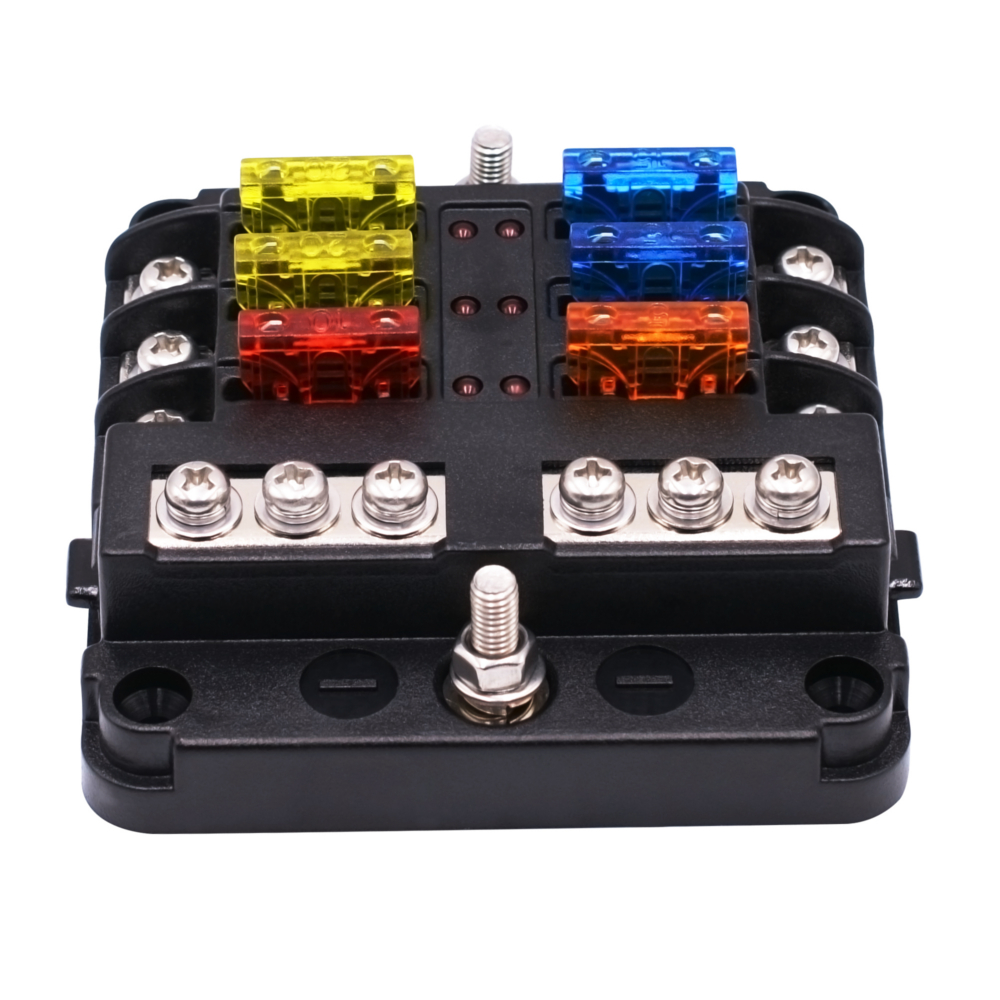

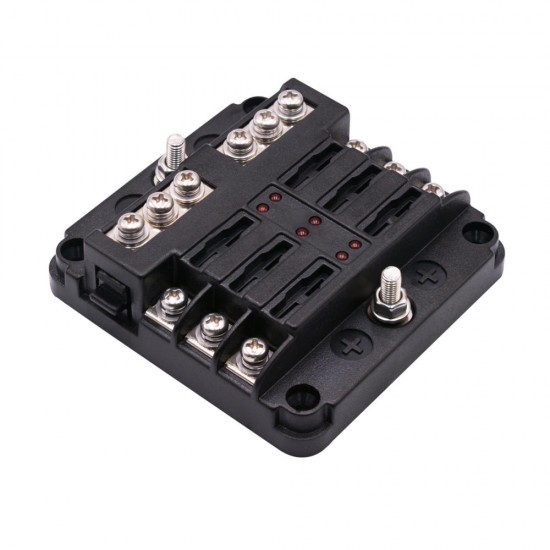

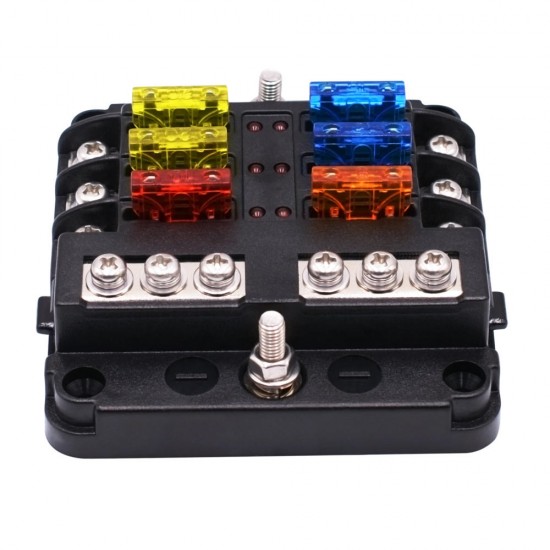

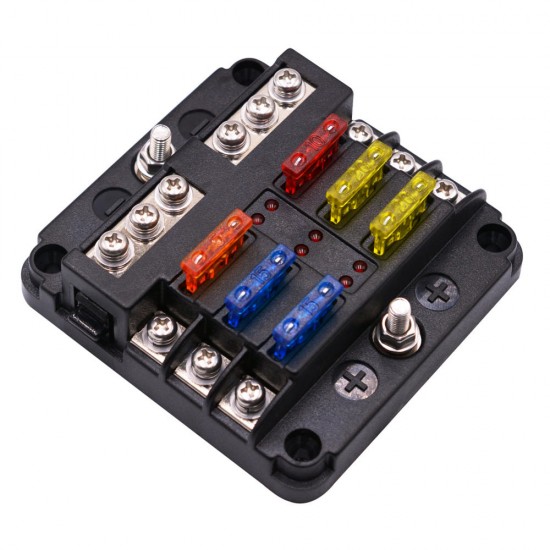

1 In 6 Out Independent Positive And Negative Of The Fuse Box With LED Indicator

1 In 6 Out Independent Positive And Negative Of The Fuse Box With LED Indicator
1 In 6 Out Independent Positive And Negative Of The Fuse Box With LED Indicator
1 In 6 Out Independent Positive And Negative Of The Fuse Box With LED Indicator
1 In 6 Out Independent Positive And Negative Of The Fuse Box With LED Indicator
1 In 6 Out Independent Positive And Negative Of The Fuse Box With LED Indicator
1 In 6 Out Independent Positive And Negative Of The Fuse Box With LED Indicator
1 In 6 Out Independent Positive And Negative Of The Fuse Box With LED Indicator
1 In 6 Out Independent Positive And Negative Of The Fuse Box With LED Indicator
1 In 6 Out Independent Positive And Negative Of The Fuse Box With LED Indicator
1 In 6 Out Independent Positive And Negative Of The Fuse Box With LED Indicator
1 In 6 Out Independent Positive And Negative Of The Fuse Box With LED Indicator
1 In 6 Out Independent Positive And Negative Of The Fuse Box With LED Indicator
1 In 6 Out Independent Positive And Negative Of The Fuse Box With LED Indicator
1 In 6 Out Independent Positive And Negative Of The Fuse Box With LED Indicator
1 In 6 Out Independent Positive And Negative Of The Fuse Box With LED Indicator
1 In 6 Out Independent Positive And Negative Of The Fuse Box With LED Indicator
1 In 6 Out Independent Positive And Negative Of The Fuse Box With LED Indicator
  • Stock: In Stock
  • Model: 1326556
$29.97
Ex Tax: $29.97







Feature:
1. The product adopts PBT anti-flame-resistance, high-low temperature and environmental protection materials, which fully meets the need of good mechanical strength, insulation, heat resistance and flame retardancy of the fuse holder. It should not cause breakage, deformation, burning and short circuit during use. condition.
2. All busbars and fuse clips are nickel plated copper for corrosion resistance and optimum conductivity.
3. All fasteners are stainless steel, the fuse box is input, the output end is fixed by screwing screws, which can be installed more quickly, and the safety box is fixed by self-tapping screws, which makes the installation simpler and safer.

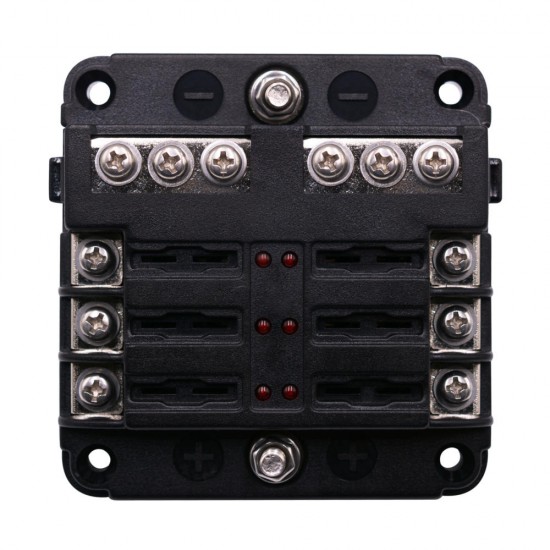

4. The product has a red LED design, corresponding to each fuse connected to the appliance, when the fuse is disconnected, the red light will be on, you can immediately know which fuse is broken, convenient and timely processing.

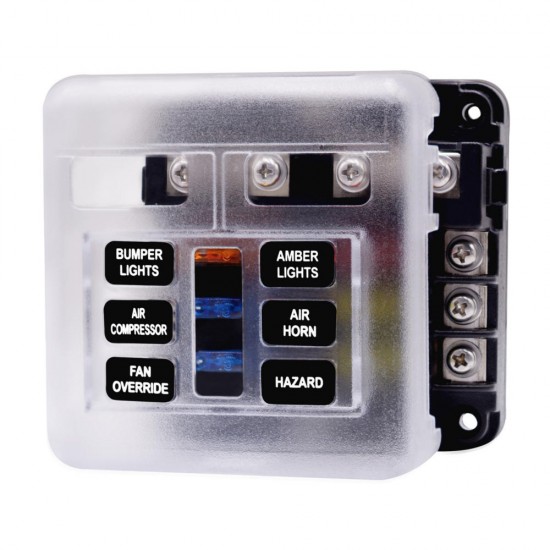

5. The product gift sticker can be attached to the electrical appliance we have connected according to the name of the sticker on the sticker. When the fuse is broken and the red light is on, we can identify which appliance has a problem in the first time, saving time and effort.

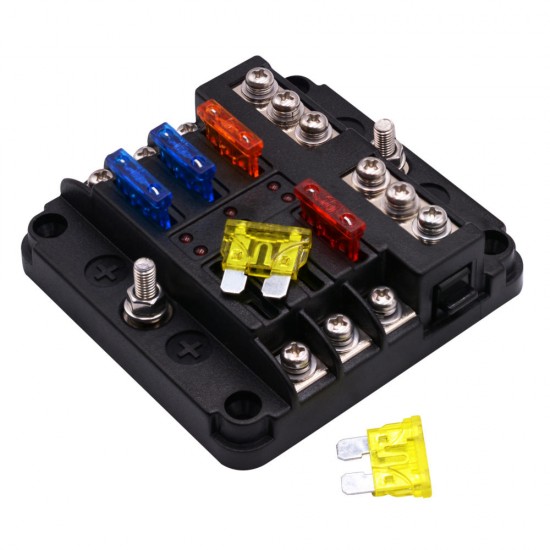

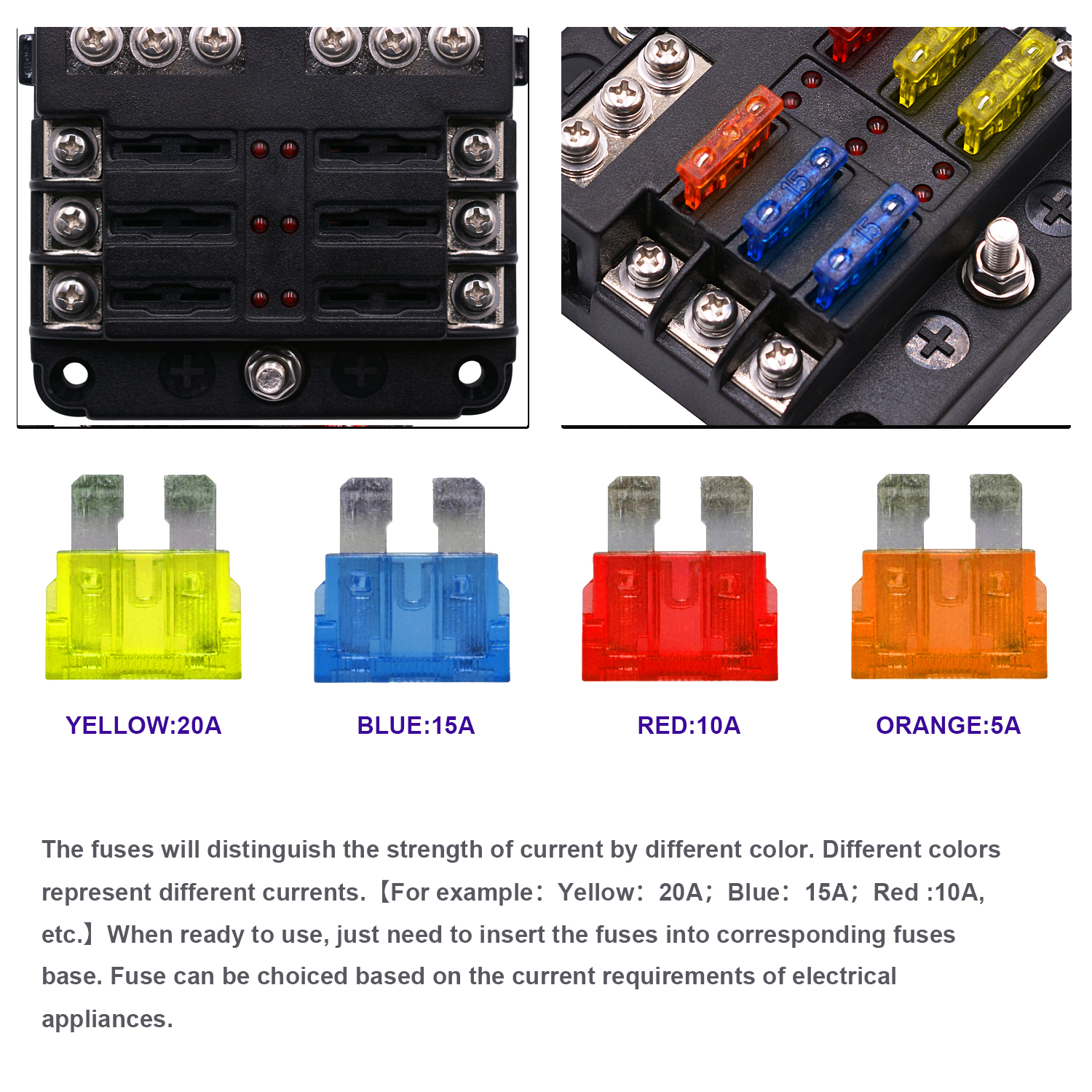

6. The product is delivered with double fuse. When applied, the fuse is burned off, it can be replaced immediately from the spare fuse, and the fuse is sent multiple Amp, and the fuse of Abe can be selected according to the current appliance.

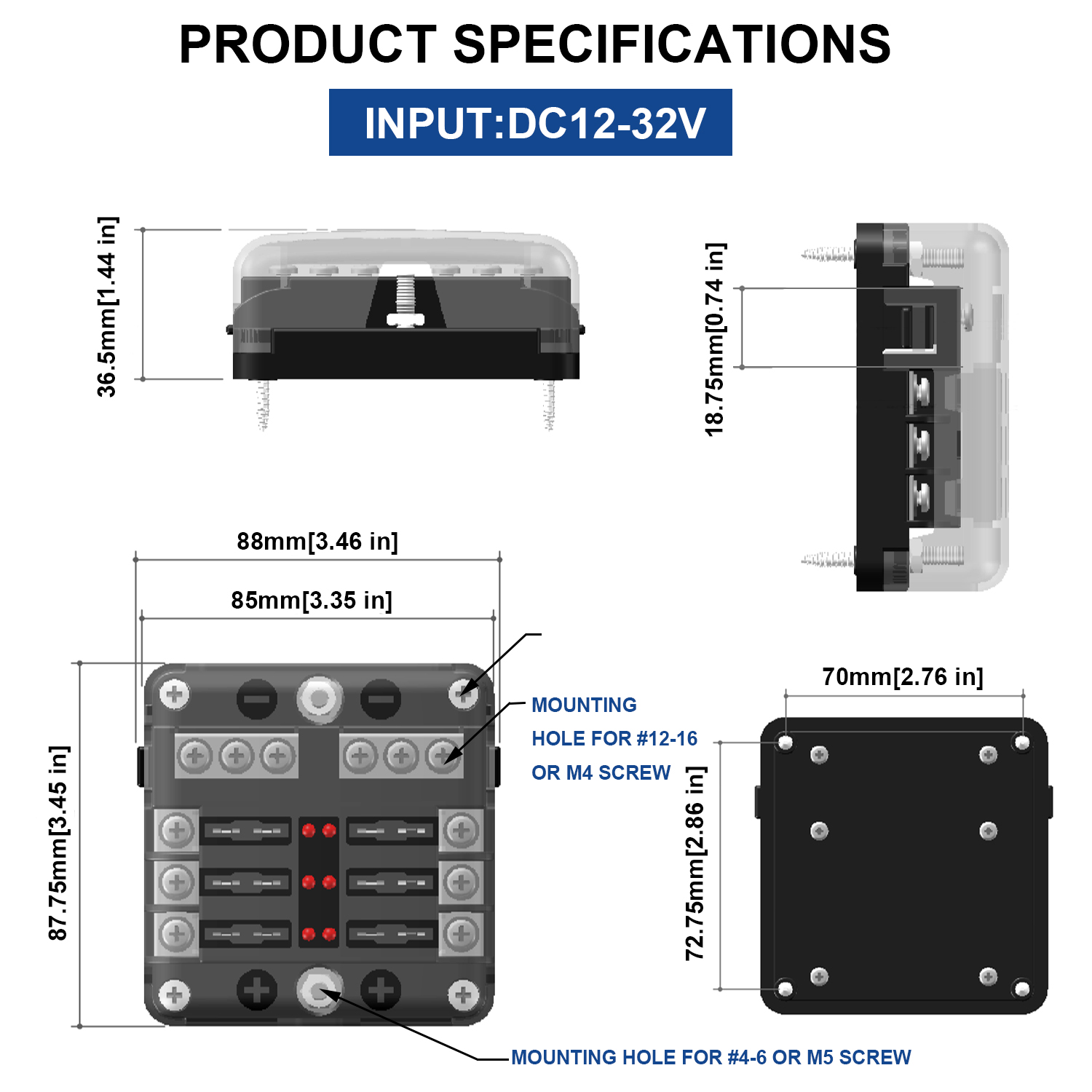

Specification:
Model: CS-664A1

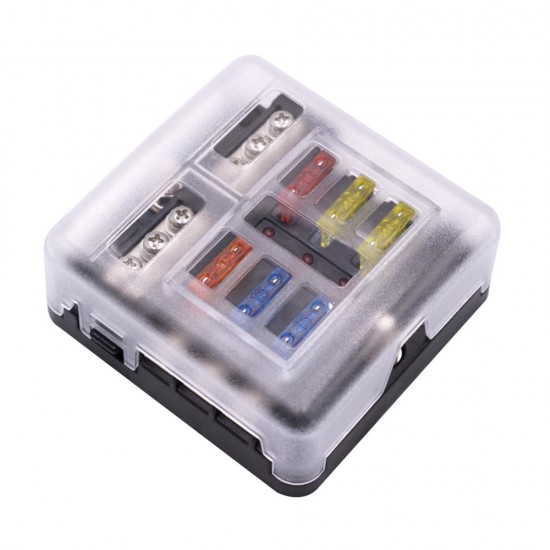

Material: PBT body, PC waterproof and dust cover, nickel-plated copper connection terminal, PPX40 sticker
Size: 87.75*85*36.5mm
Input rated voltage; 32V
Input rated current: 100A
Output maximum current: Each circuit 30A
Indicator color: Red

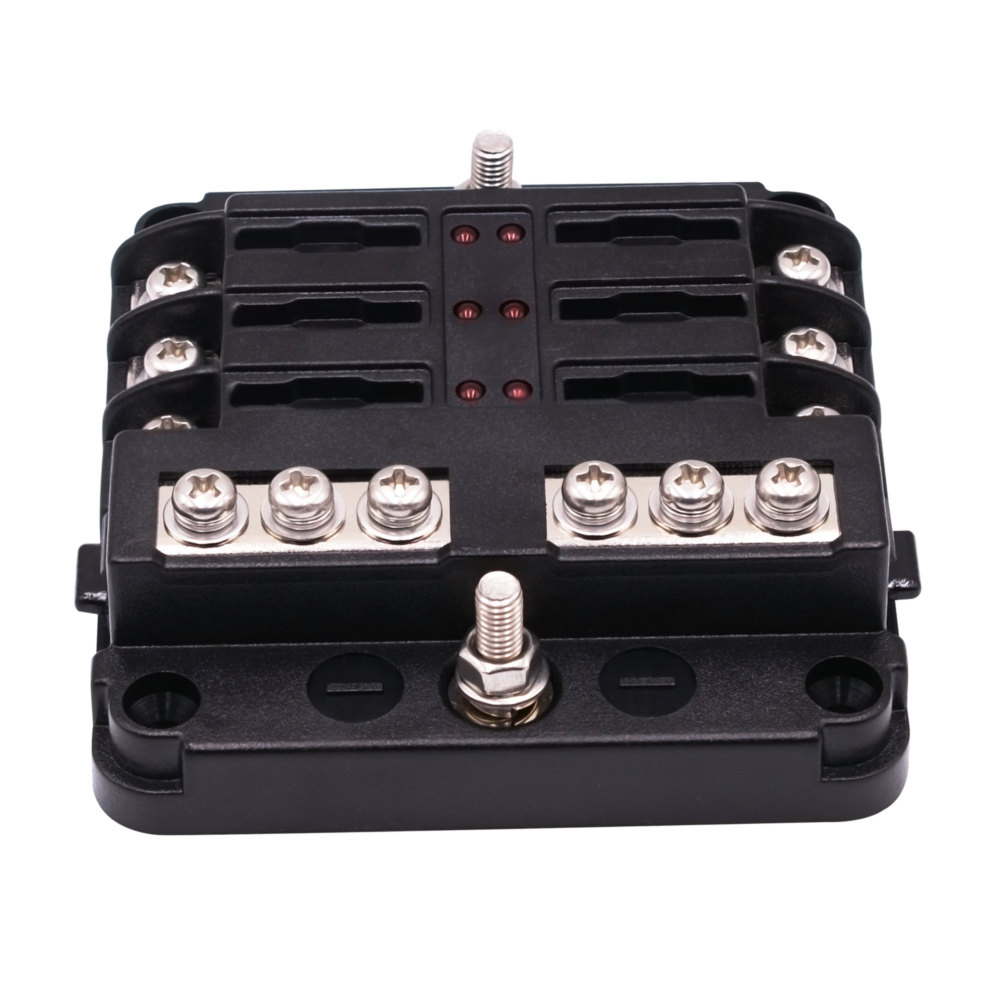

Main line terminal: M5 threaded stud
Main wire: Number 4-6
Single wire terminal: M4 threaded stud
Single wire:
 Number 12-16
Product installation range: Can be installed on cars, Yueshu, RV, bus, yacht, boat, etc.

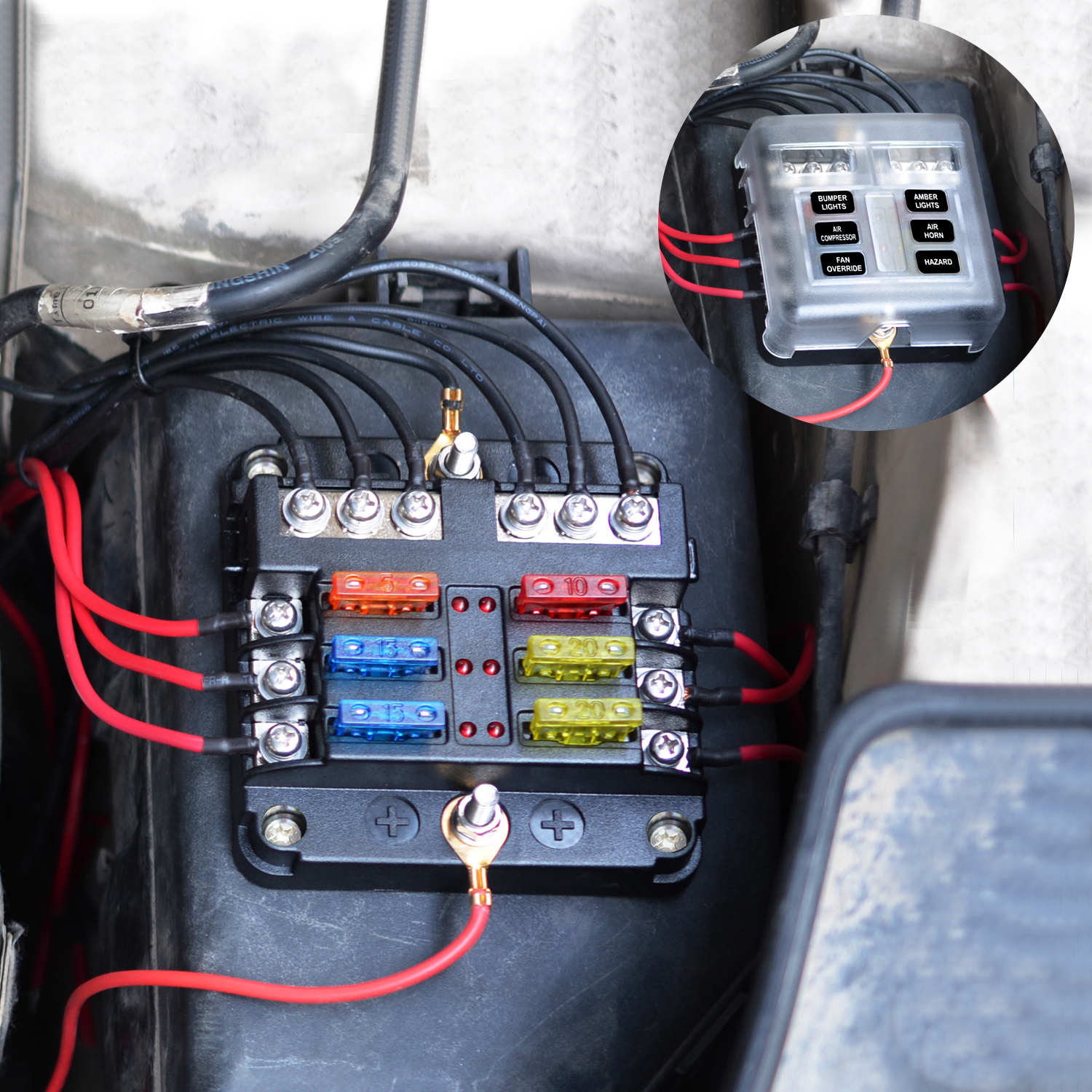

Product use range: Can be directly connected to the line of any electric appliance on the car/ship.

Package Included:
1 X Sticker
4 X Self-tapping screw
4 X 20A fuse
4 X 15A fuse
2 X 10A fuse
2 X 5A fuse






1-In-6-Out-Independent-Positive-And-Negative-Of-The-Fuse-Box-With-LED-Indicator-1326556
1-In-6-Out-Independent-Positive-And-Negative-Of-The-Fuse-Box-With-LED-Indicator-1326556
1-In-6-Out-Independent-Positive-And-Negative-Of-The-Fuse-Box-With-LED-Indicator-1326556
1-In-6-Out-Independent-Positive-And-Negative-Of-The-Fuse-Box-With-LED-Indicator-1326556
1-In-6-Out-Independent-Positive-And-Negative-Of-The-Fuse-Box-With-LED-Indicator-1326556
1-In-6-Out-Independent-Positive-And-Negative-Of-The-Fuse-Box-With-LED-Indicator-1326556
