  • Stock: In Stock
  • Model: 1109750
$89.99
Ex Tax: $89.99







Description:

This 10.1 inch High-resolution 1280*800 LCD display module kit is especially designed as a monitor for Raspberry Pi 3/2 Model B and Raspberry Pi B+ B A+.
For use with a Raspberry Pi we suggest editing config.txt to set the HDMI to the native 1280x800 in case it doesn't detect the resolution properly. The easiest way to edit the config.txt is to put the Pi TF card into an every day computer and edit config.txt with any text editor and save.

Feature:

Screen dimensions: 217mm x 135mm /  16:10
Display dimensions: 230mm x 150 x 3.5 mm
Panel type: a-Si TFT-LCD Panel
Panel size: 10.1"
Resolution (RGB): 1280x800, WXGA
Brightness: 350 cd/m^2
Operating voltage: 12V (current requirement 1A-2A)
Rated power: 6-7W
Signal input: AV + VGA + HDMI (HDMI 1.2)
Resolution: 1280* 800,
Plug and Play: Support
OSD language: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese
Control: Multi-function OSD operation or potentiometer adjust the brightness and color.

LCD screen parameters:

Screen size: 10.1 inch
Touch screen: Not support
Screen dimensions: 217mm x 135mm /  16:10
Display dimensions: 230mm x 150 x 5.2 mm
Panel type: a-Si TFT-LCD Panel
Panel size: 10.1"
Resolution (RGB): 1280x800, WXGA
Display mode: HFFS, Normally Black, Transmissive
Surface: Hard coating
Brightness: 350 cd/m^2
Contrast ratio: 800:1 (Min.)

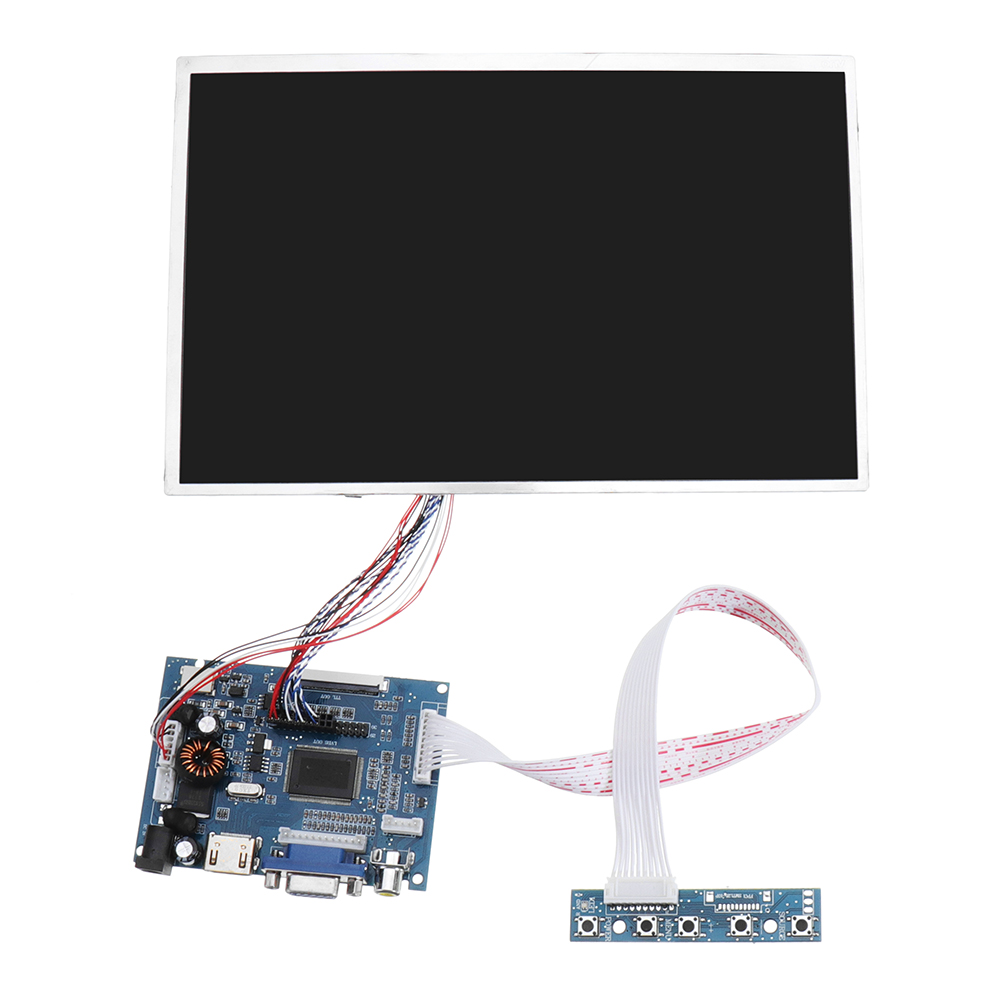

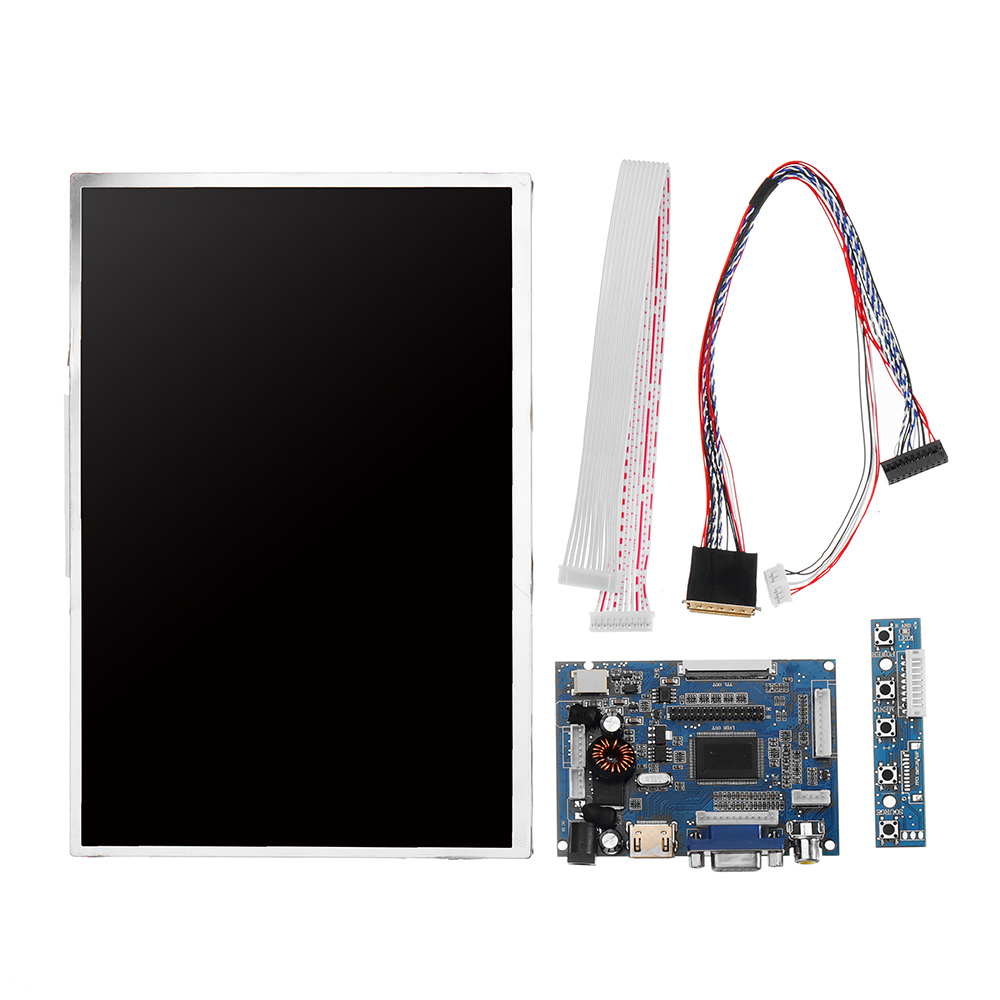

Package includes:

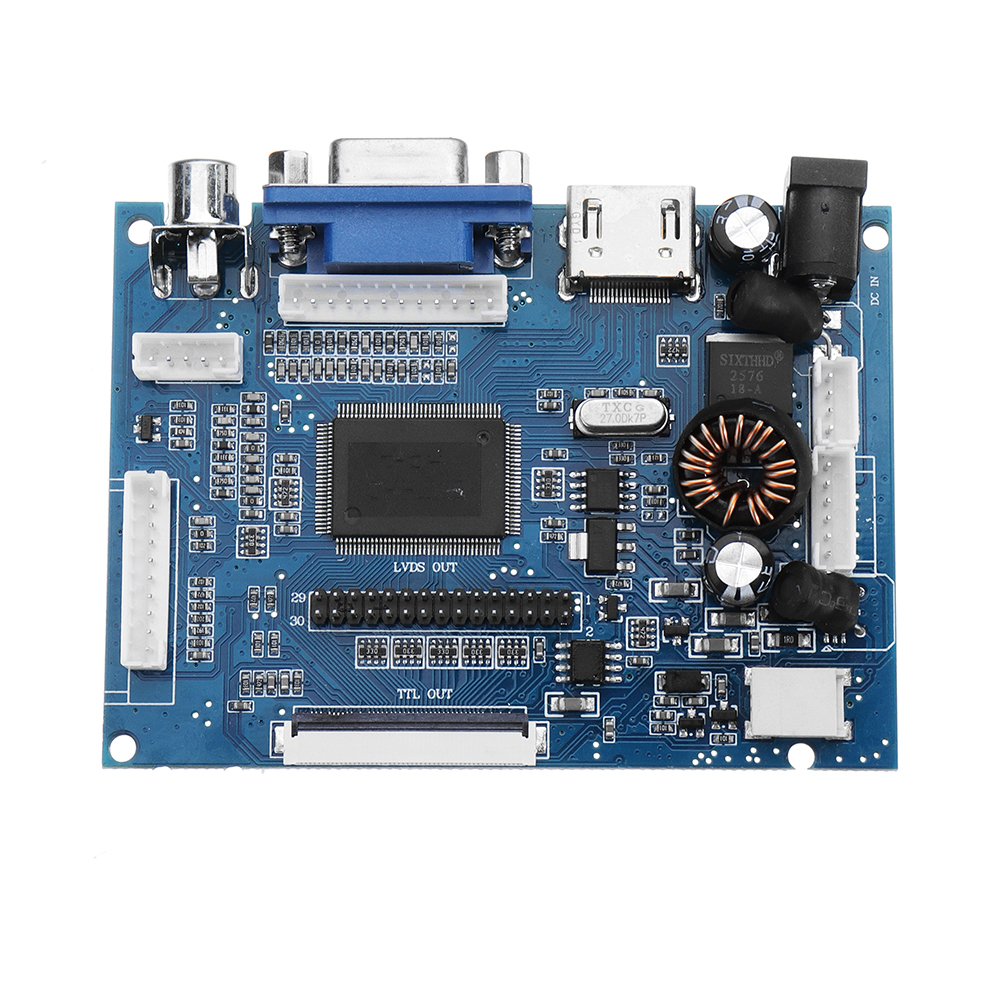

1 x HDMI+VGA+2AV LCD controller board

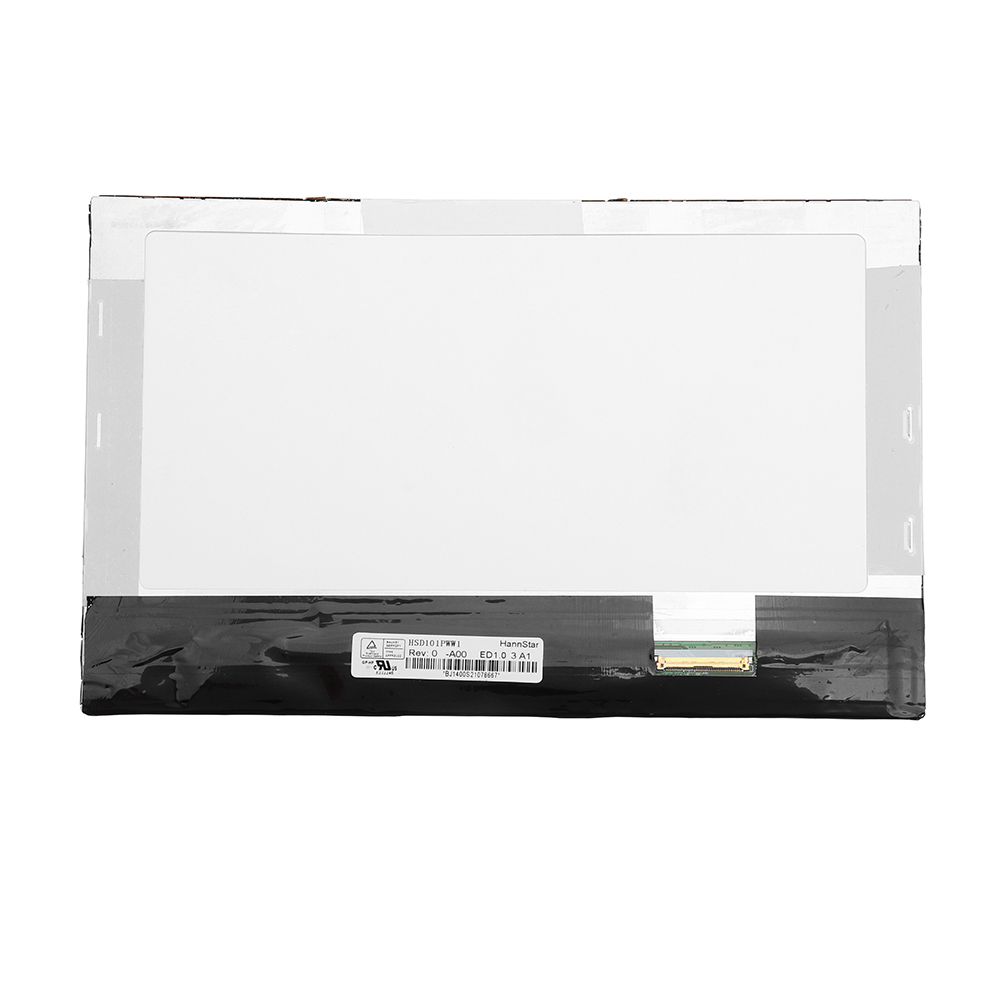

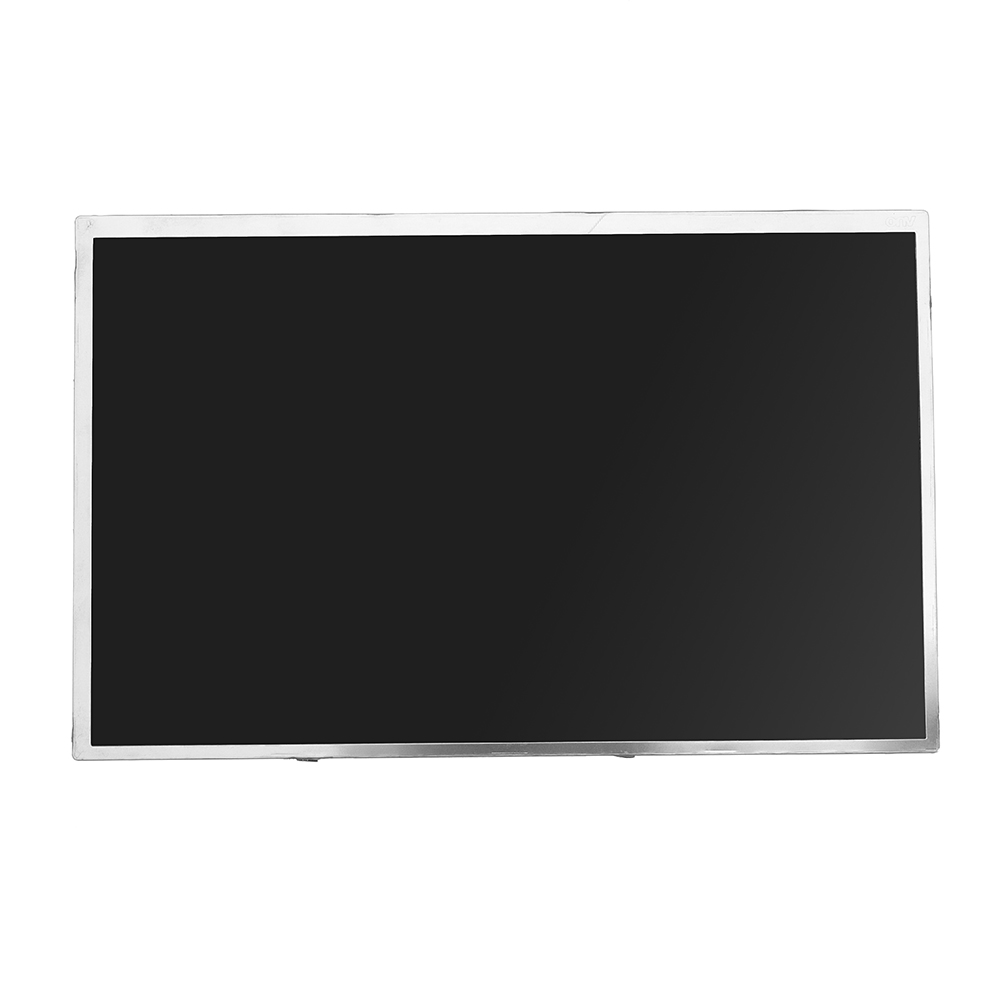

1 x 10.1 inch 1280x800  IPS LCD panel

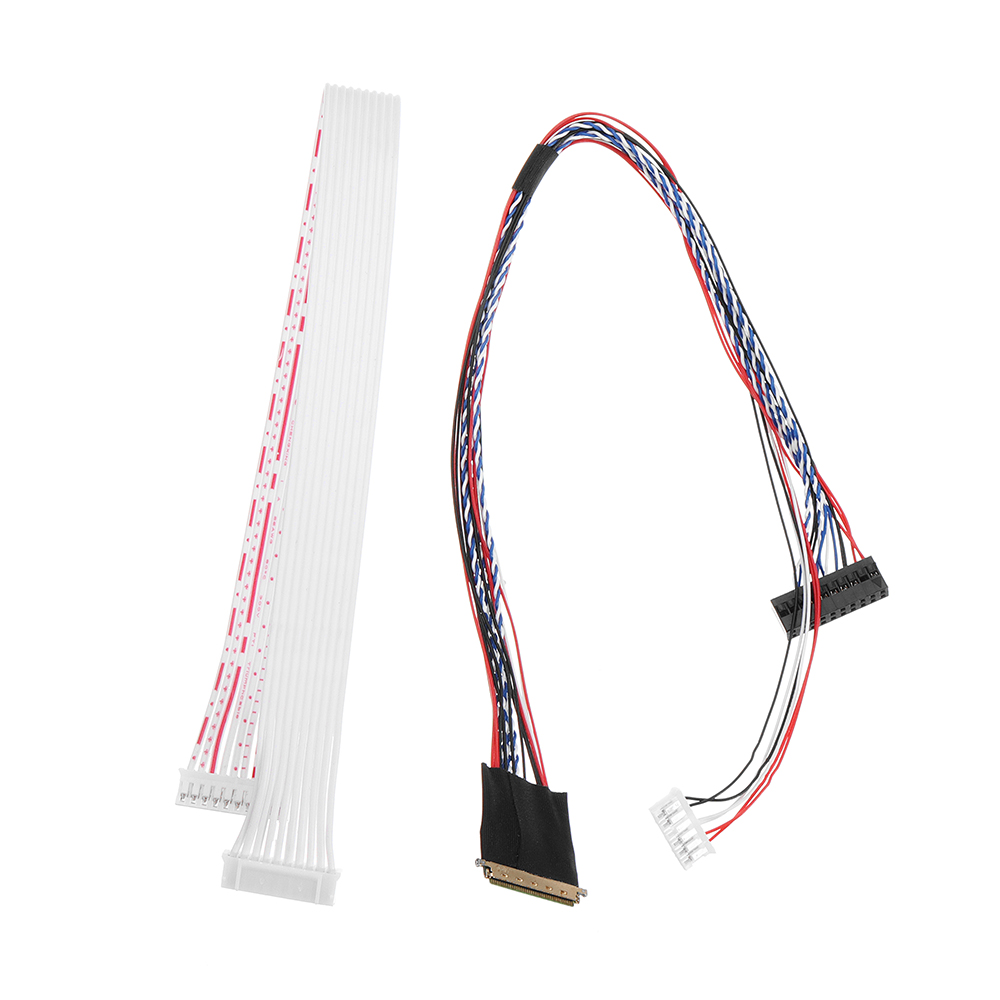

1 x LVDS Cable

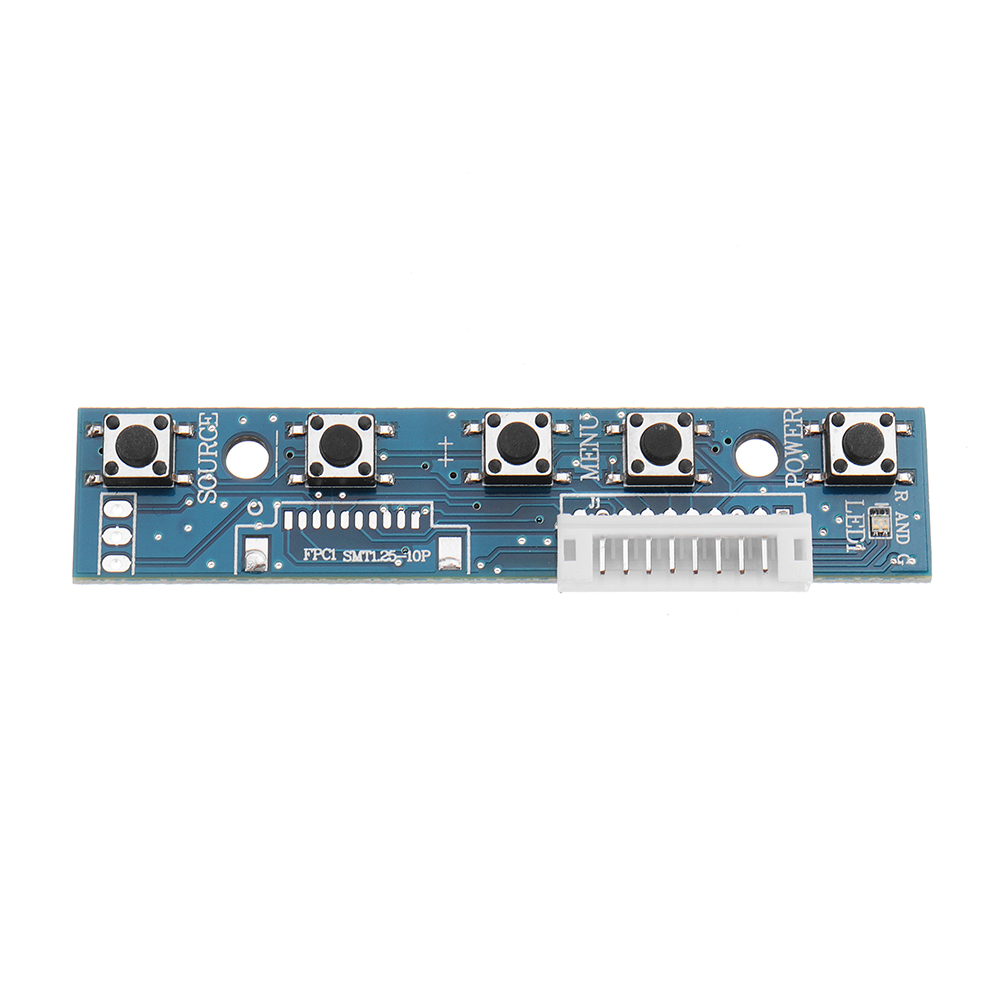

1 x Keyboard with wire
