1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz

1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
1000W Grid Tie Inverter 115V/230V MPPT Pure Sine Wave Inverter 50Hz/60Hz
  • Stock: In Stock
  • Model: 1313125
$229.49
Ex Tax: $229.49

Available Options







Description:

Grid tie inverter is a device which directly converts direct current into alternating current which sine wave, frequency and phase are same as power grid and then feed into utility grid. It is a key device of power generation systems such as PV power generation system.
Smart Microinverter specially optimized design to work with modularization of DC power supplies which includes the mainstream solar modules, 18V (36 cells), 24V (60 cells) and 36V (72 cells) monocrystal and/or Polycrystalline solar panels.
Smart Microinverters are stabilization, reliable and high conversion efficiency items. It is best choice for PV power generation systems.
Smart Microinverter can be easily placed and attached to the rack underneath of PV module.
No
need spaces for independent installation and low voltage DC wire connects from the PV module to Smart Microinverter can eliminate the risk of high DC voltage.
Distributed modularization design philosophy for Smart Microinverter insures the productiveness of the whole system and will not affect by a single point of failure. Each Smart Microinverter is individually connected to one PV module in the array. Each PV module has the individual Maximum Peak Power Point Tracker (MPPT) control and insures the maximum power is exported to the utility grid regardless of the performance of the other PV modules in the array. When PV modules in the array under non-ideal conditions in practical applications such as PV modules are affected by shading, soiling,
orientation, or mismatch, Smart Microinverter insures top performance for maximizes energy production from the whole PV system and gets return on investment in less time.


Specifications:

Type A:
10.8-30V Version:
Rated Power:1000W
Solar Panels:36 cells/18V
DC Input Range:10.8-30V
MPPT Voltage:15-22VDC
AC Output:115V(90-140V)
Frequency:50Hz-60Hz
THD :<5%
Power Factor:>98%
Stand-by Power:<1W
Certification:CE RoHS

Type B:
20-45V Version:
Rated Power:1000W
Solar Panels:60/72 cells ; 30V/36V
DC Input Range:20V-45V
MPPT Voltage:24-38VDC
AC Output:230V(190-260V)
Frequency:50Hz-60Hz
THD :<5%
Power Factor:>98%
Stand-by Power:<1W
Certification:CE RoHS

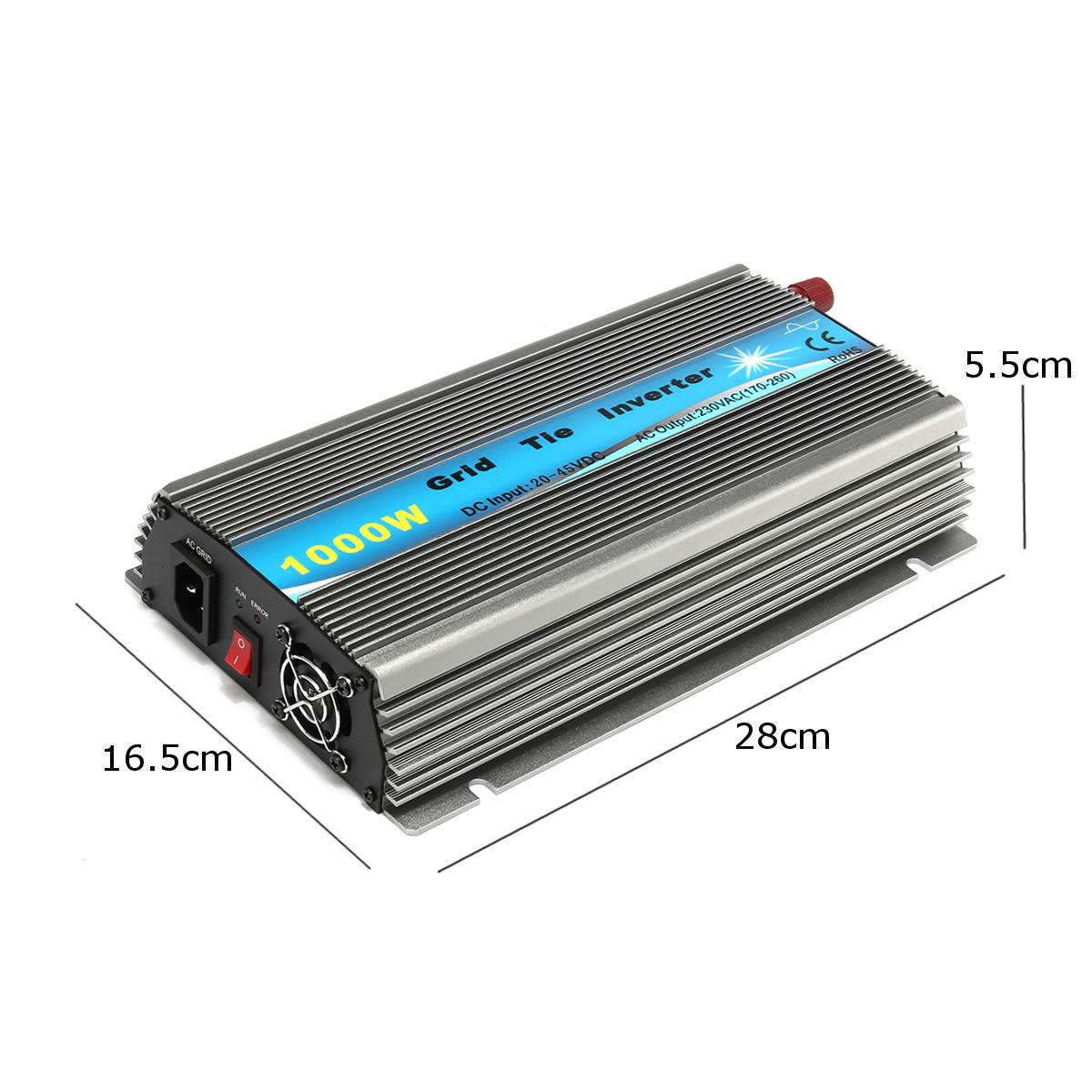

Package Size:approx.28x16.5x5.5cm

Feature:
Creative MPPT technology, efficiency more than 95%
Parallel type design for DC input and modularization design
Small volume, distributed installation, easy for system configuration
Adopting high-frequency isolation transformer type, high efficiency
Perfect electrical protection function
Stackable and Easy to install
(Please be noted, This grid tie inverter cannot be used as off grid/stand alone solar system.
The output need to be connected to the grid power. Can not supply power directly to the AC loads.)

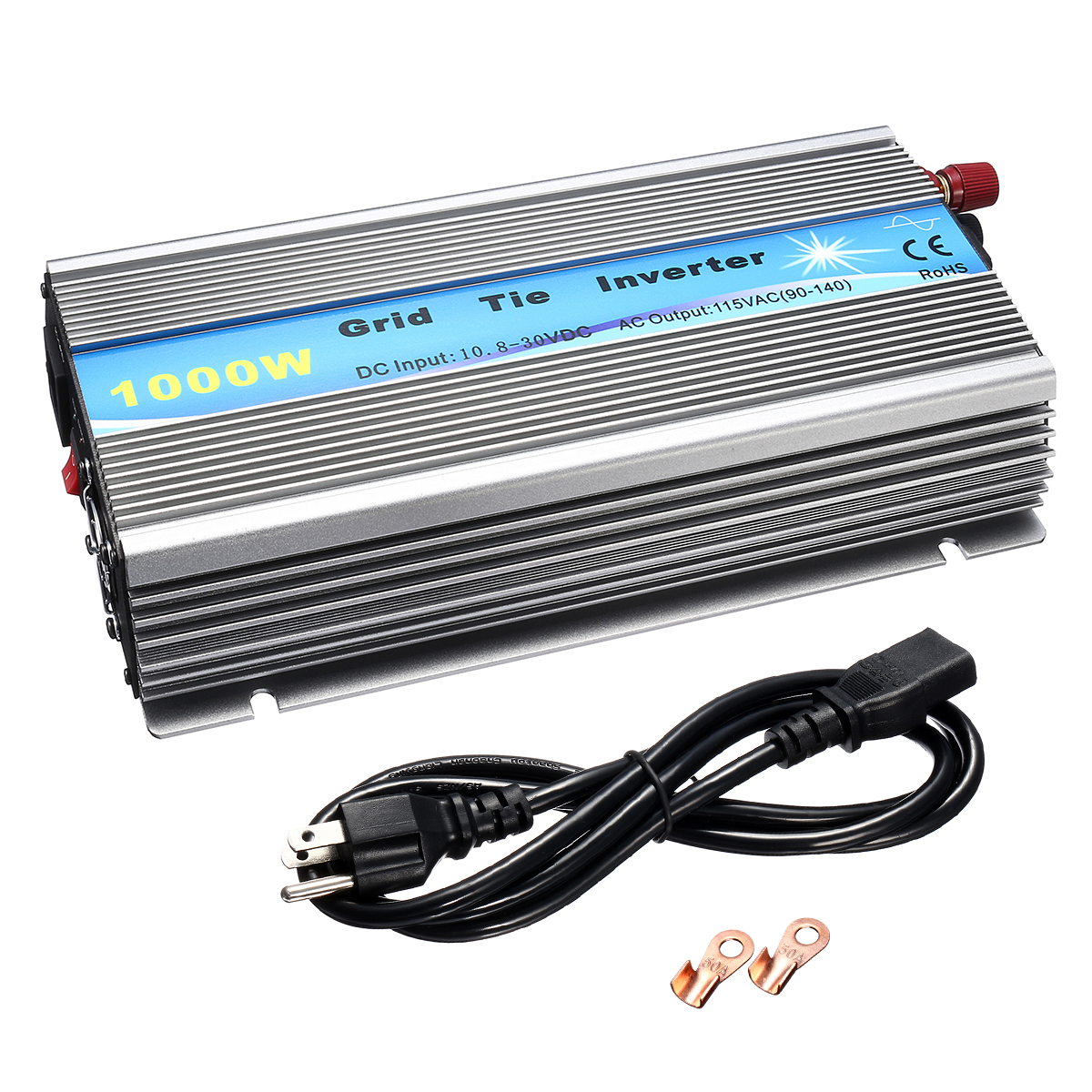

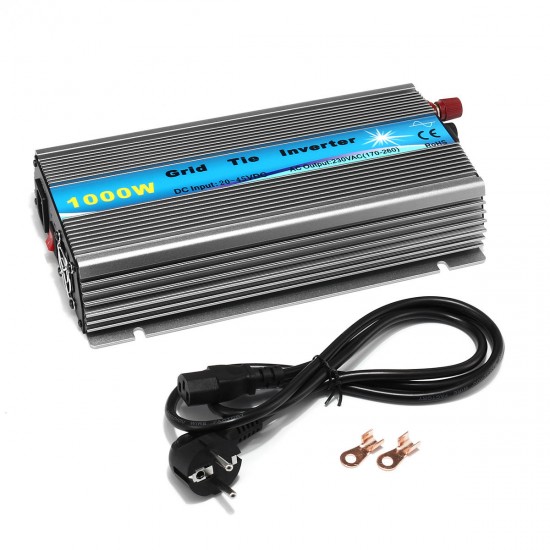

Package Included:
1 x 1000W Grid Tie Inverter
1 x User's Manual

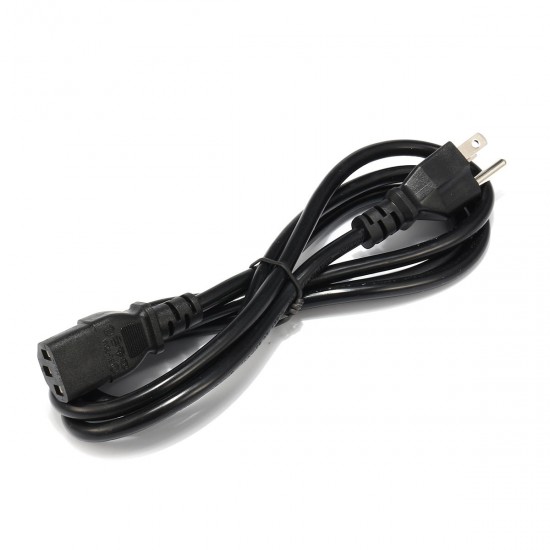

1 x AC Cord

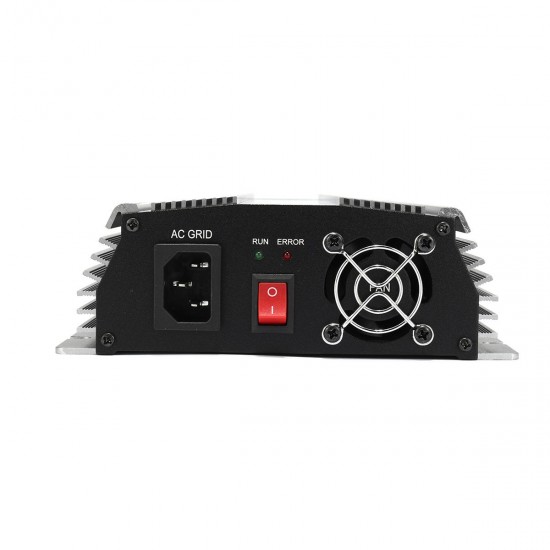

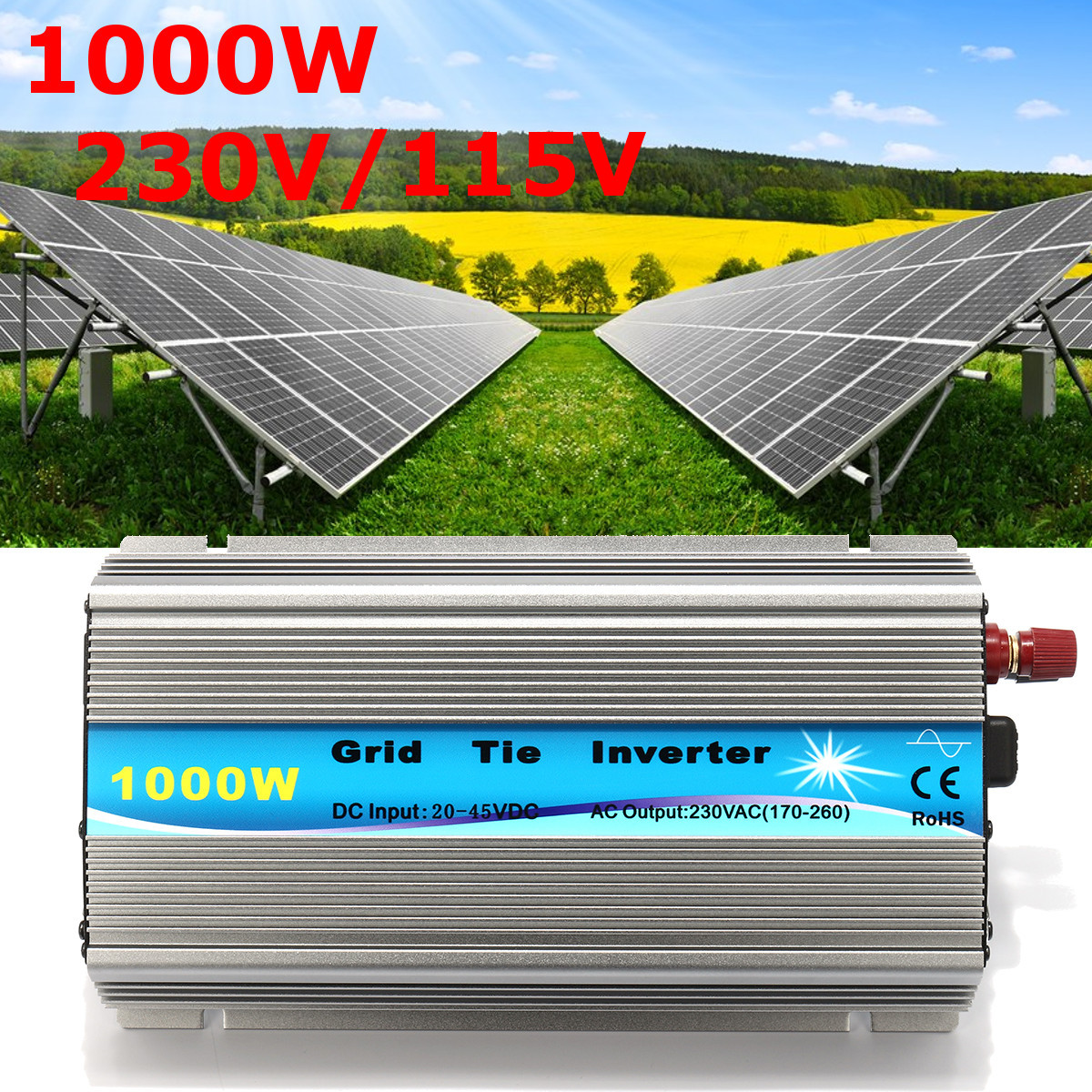

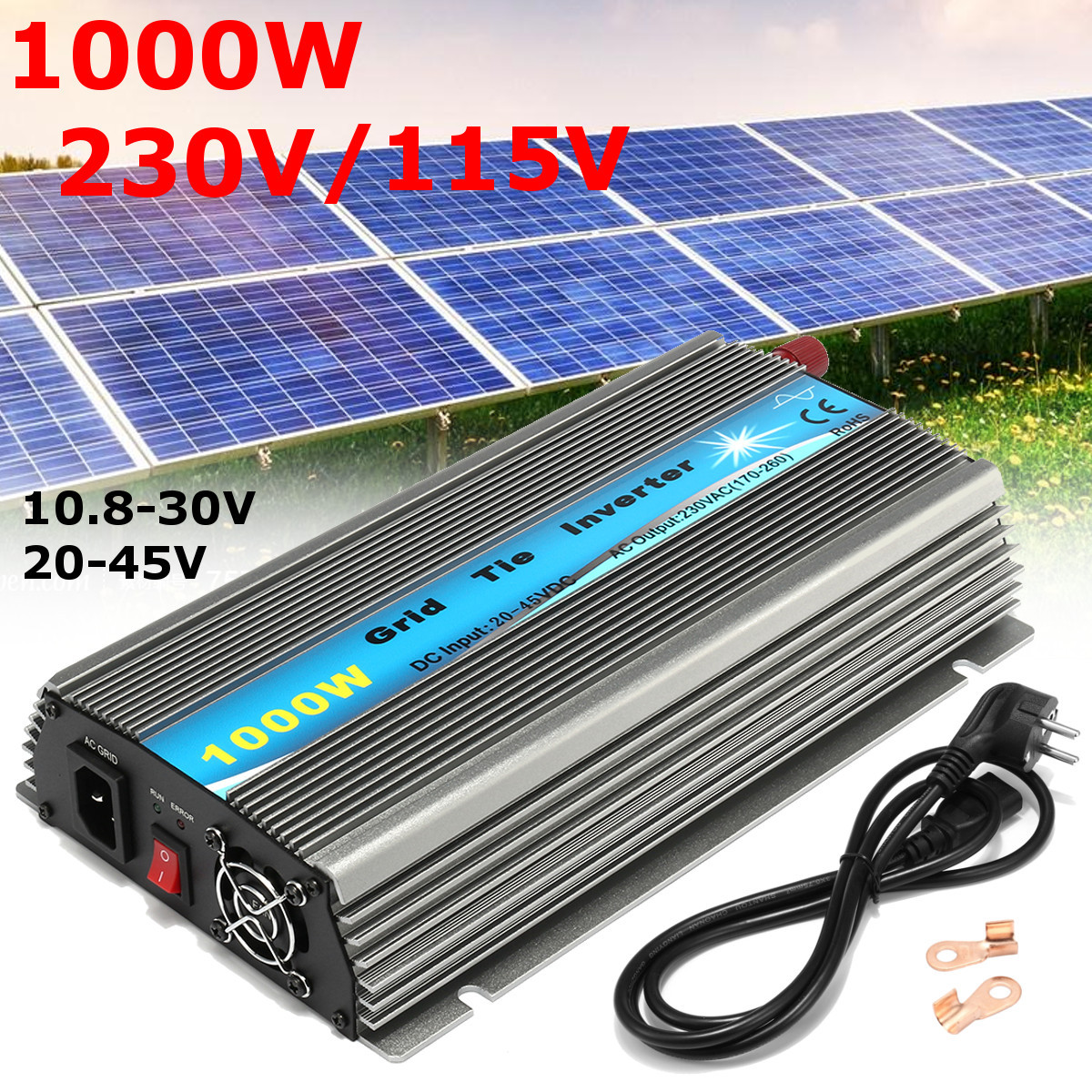

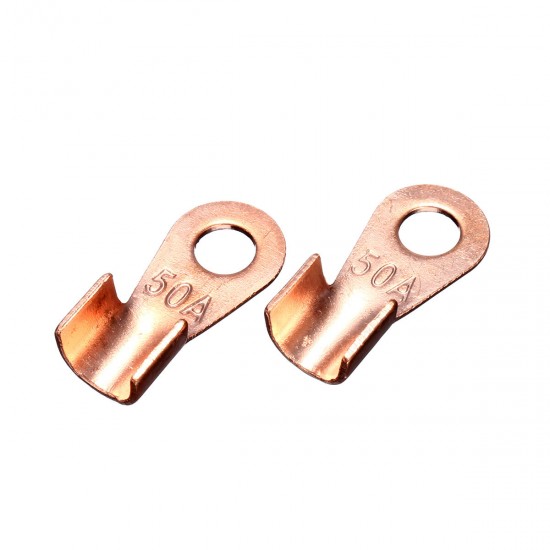

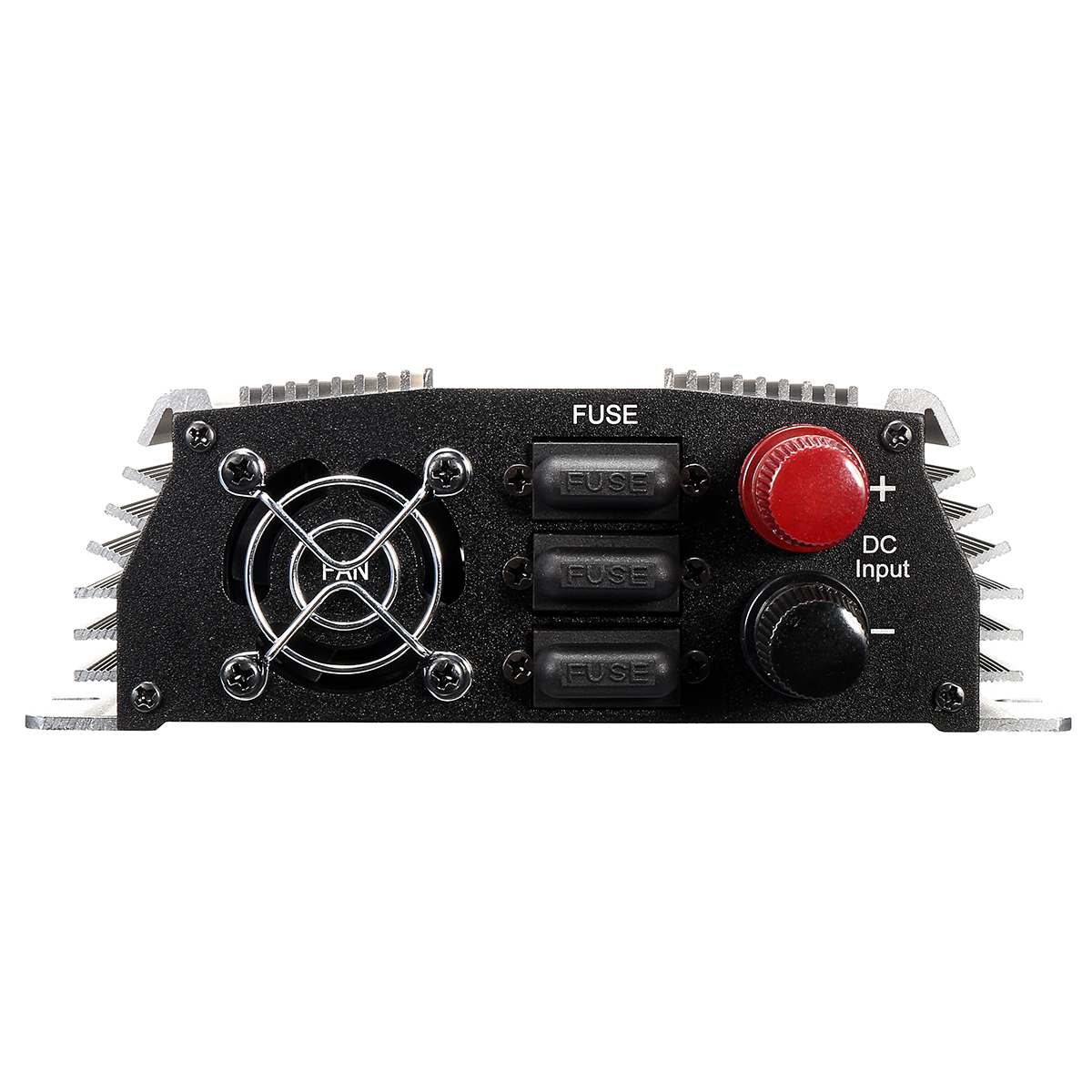

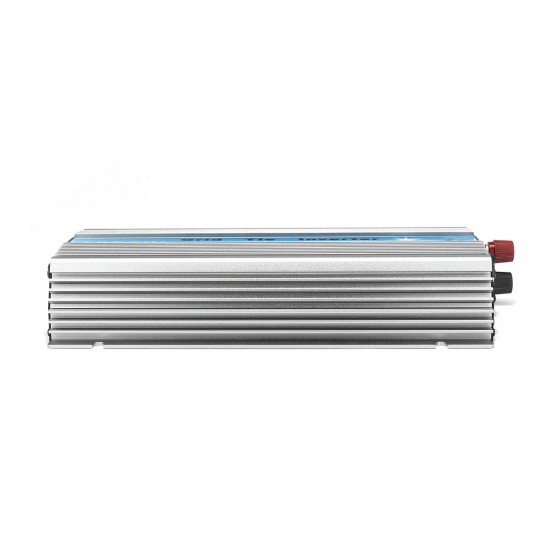

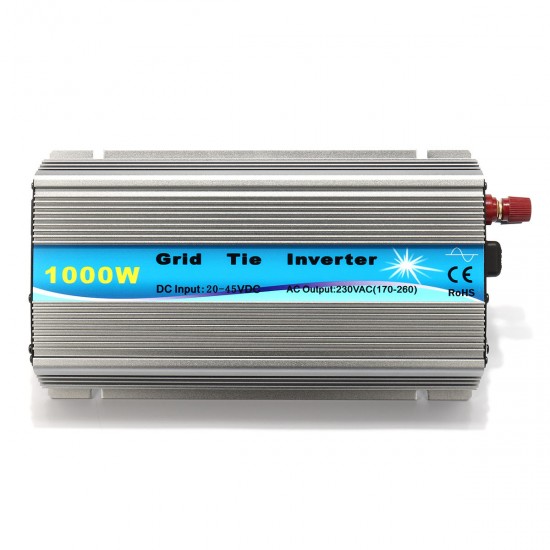

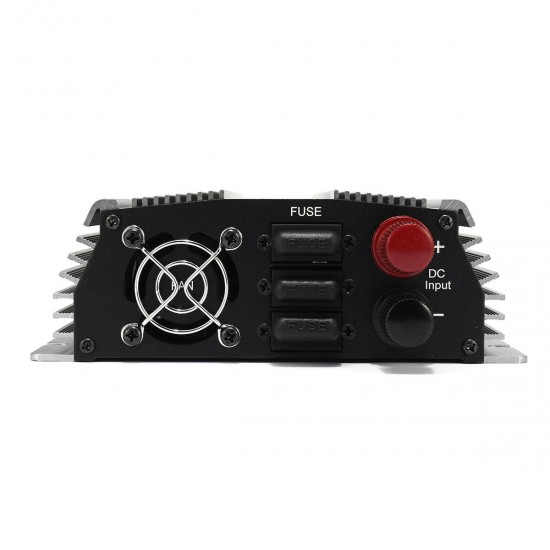

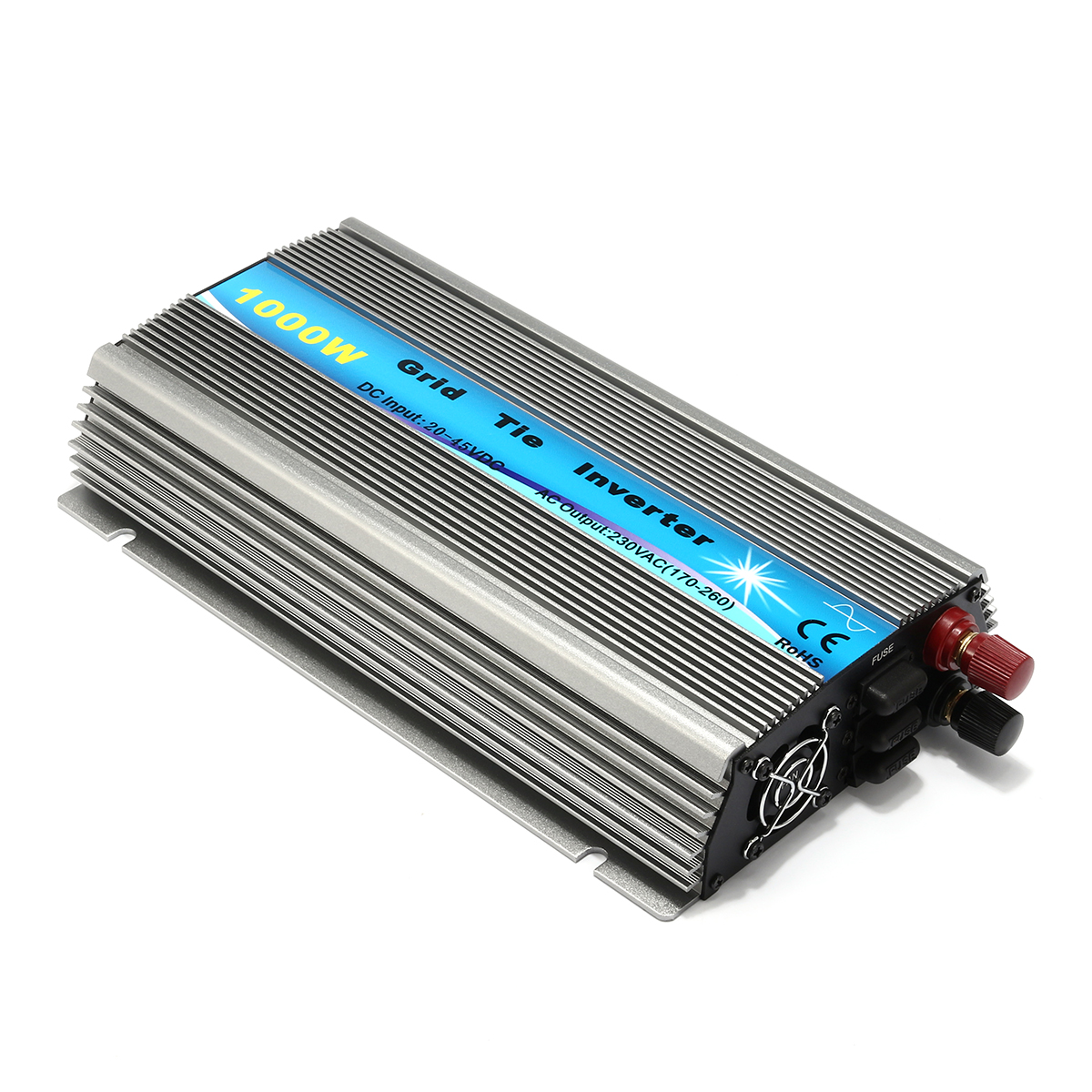

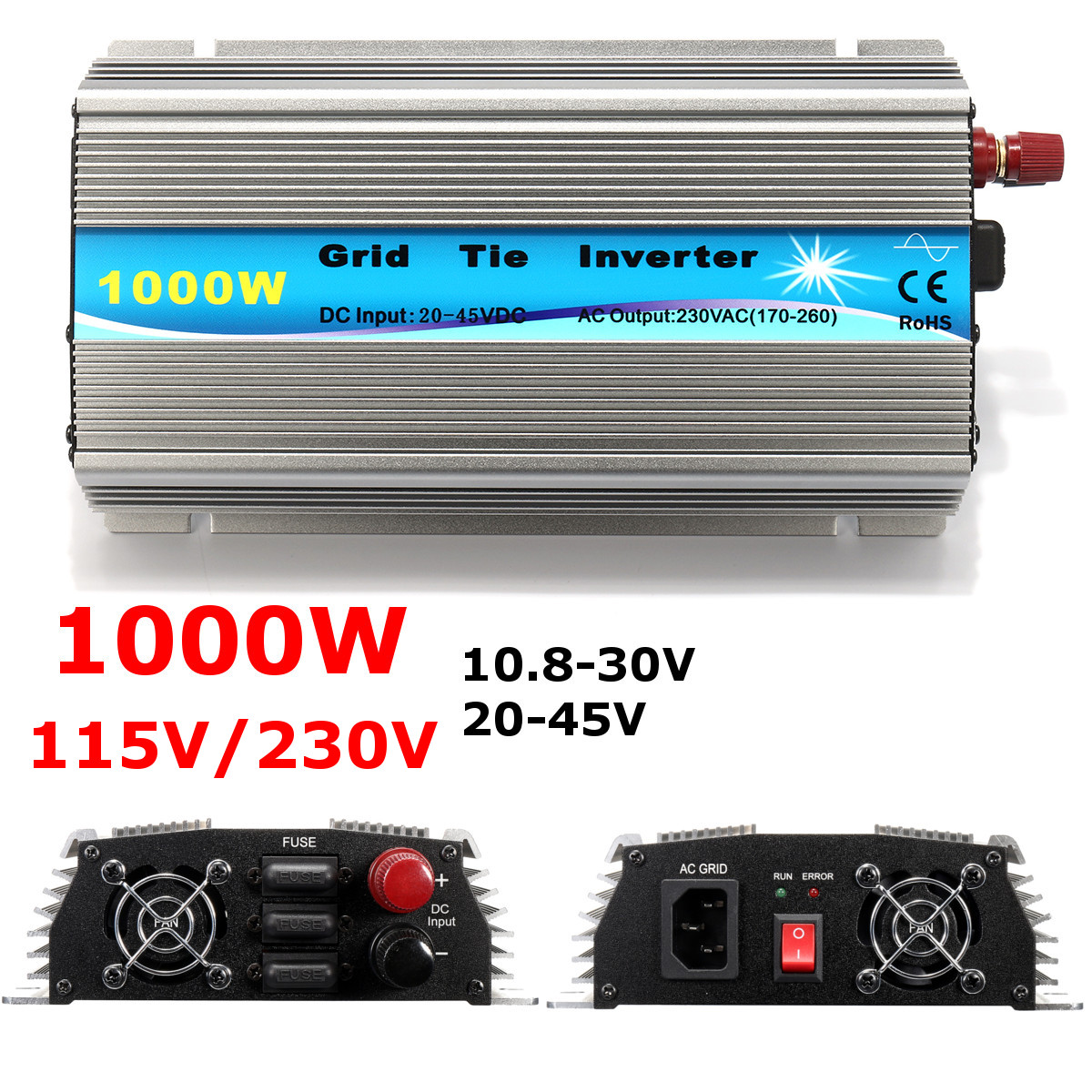

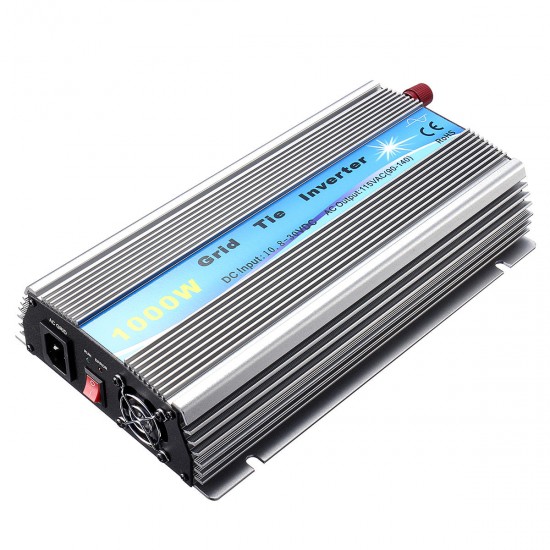

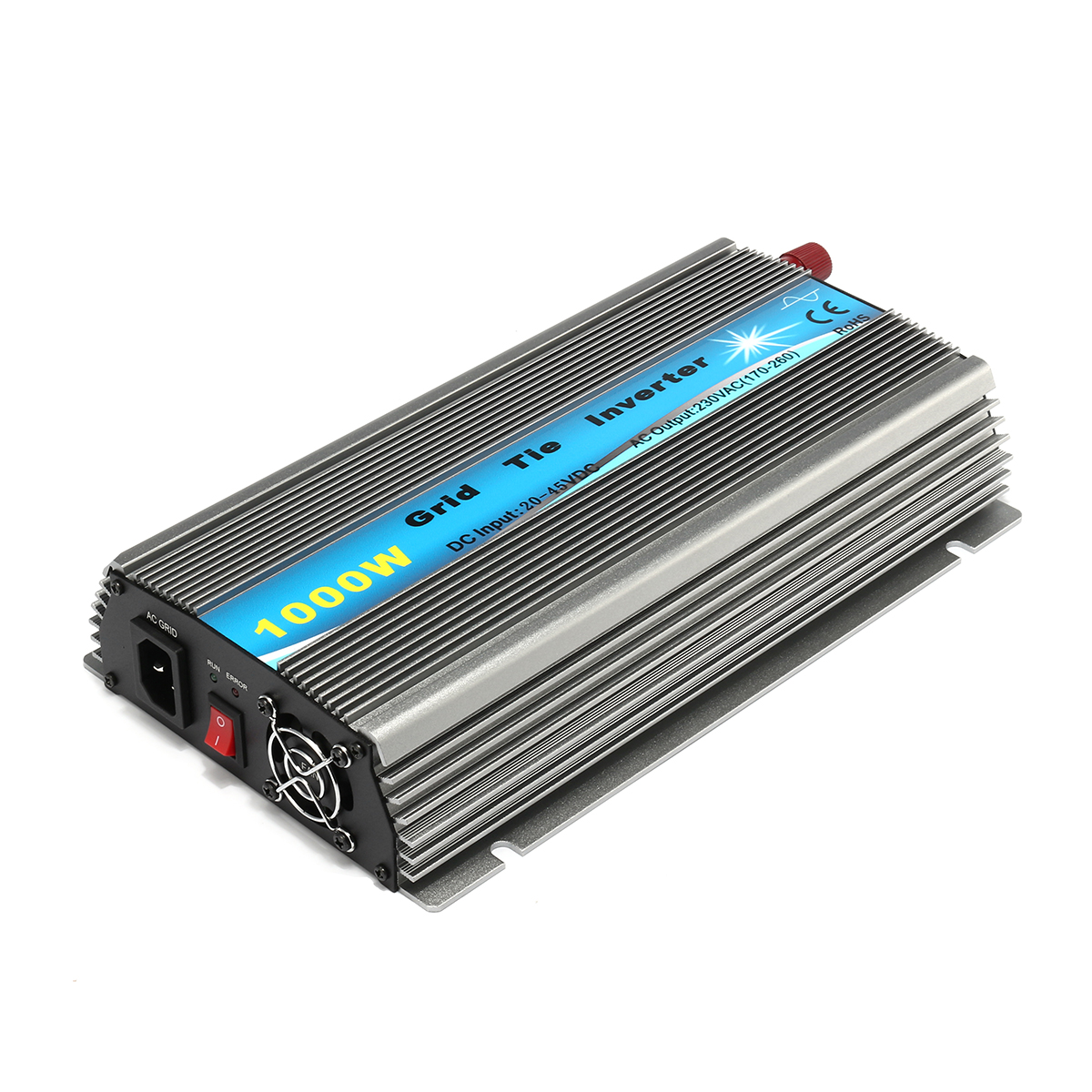

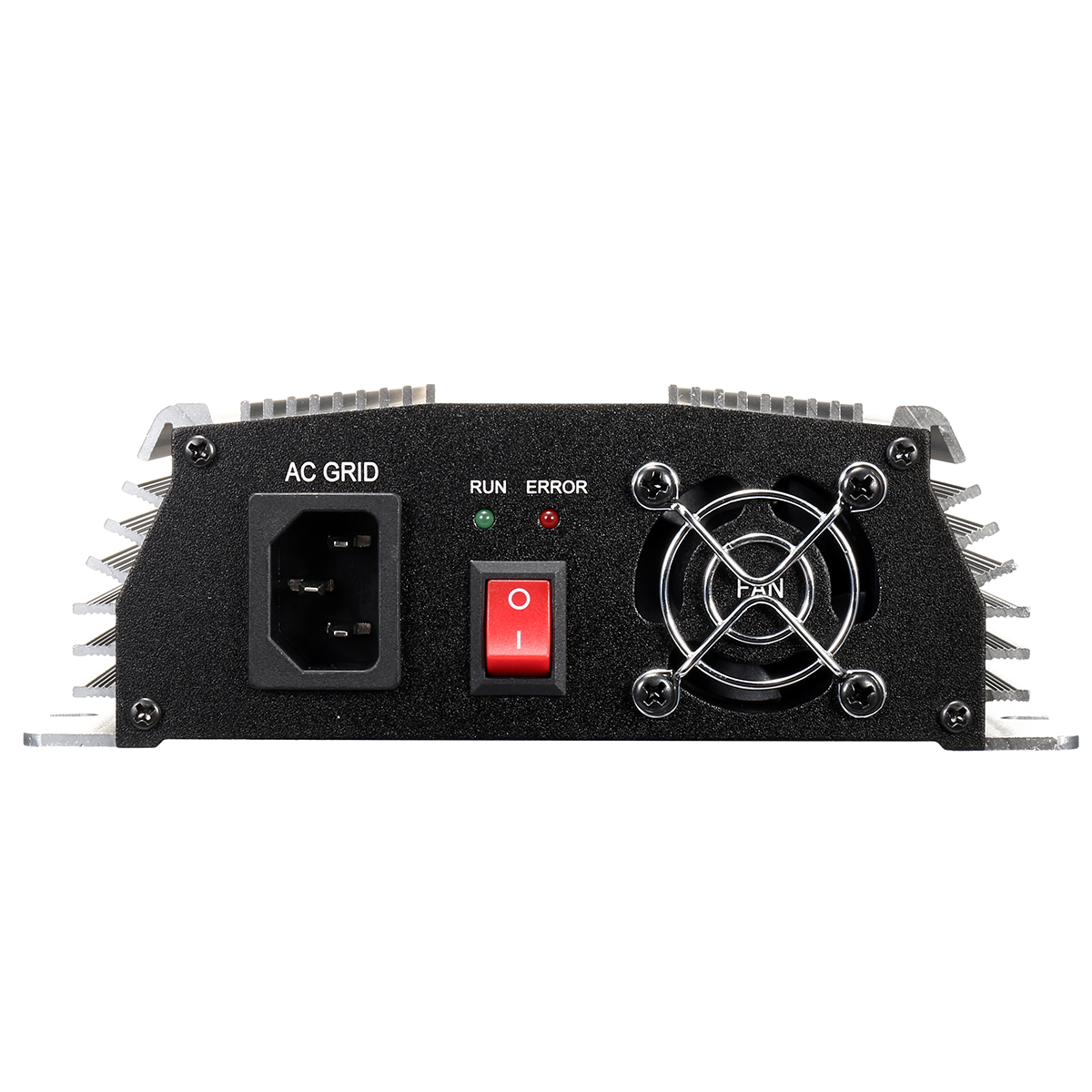

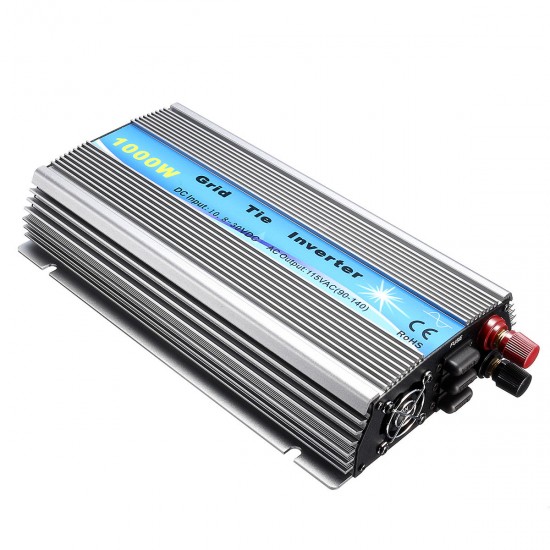

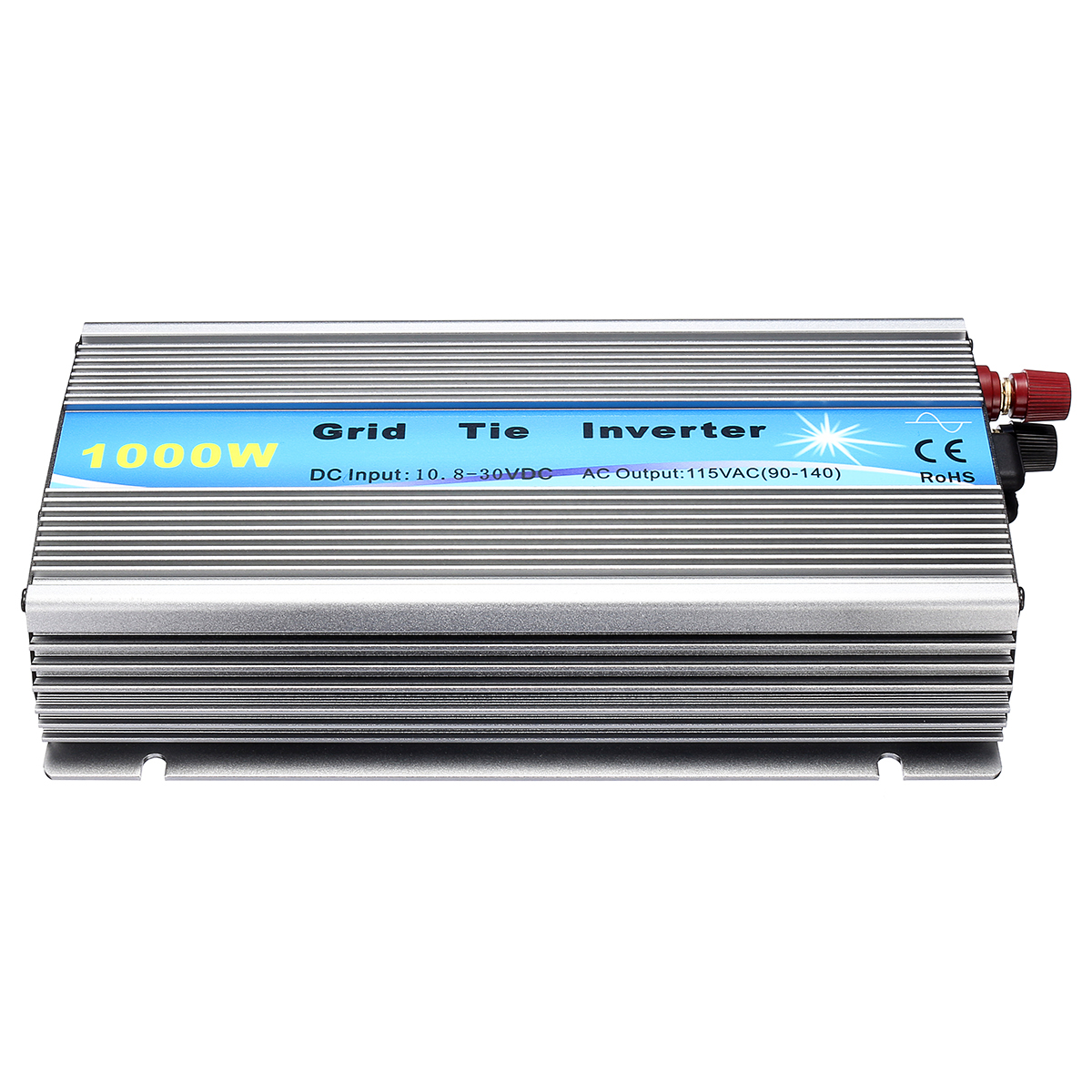

Picture details:


1000W-Grid-Tie-Inverter-115V230V-MPPT-Pure-Sine-Wave-Inverter-50Hz60Hz-1313125
1000W-Grid-Tie-Inverter-115V230V-MPPT-Pure-Sine-Wave-Inverter-50Hz60Hz-1313125
1000W-Grid-Tie-Inverter-115V230V-MPPT-Pure-Sine-Wave-Inverter-50Hz60Hz-1313125
1000W-Grid-Tie-Inverter-115V230V-MPPT-Pure-Sine-Wave-Inverter-50Hz60Hz-1313125
1000W-Grid-Tie-Inverter-115V230V-MPPT-Pure-Sine-Wave-Inverter-50Hz60Hz-1313125
1000W-Grid-Tie-Inverter-115V230V-MPPT-Pure-Sine-Wave-Inverter-50Hz60Hz-1313125
1000W-Grid-Tie-Inverter-115V230V-MPPT-Pure-Sine-Wave-Inverter-50Hz60Hz-1313125
1000W-Grid-Tie-Inverter-115V230V-MPPT-Pure-Sine-Wave-Inverter-50Hz60Hz-1313125
1000W-Grid-Tie-Inverter-115V230V-MPPT-Pure-Sine-Wave-Inverter-50Hz60Hz-1313125
1000W-Grid-Tie-Inverter-115V230V-MPPT-Pure-Sine-Wave-Inverter-50Hz60Hz-1313125
