24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter

24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
24V/36V/48/60V 250W/350W Brushless Controller Battery Speed LCD Instrument For MTB E-Bike Scooter
  • Stock: In Stock
  • Model: 1399223
$79.95
Ex Tax: $79.95

Available Options







Description:
1. Moto controller and LCD display adapts waterproof design , you can use it Conveniently at your daily time .
2. LCD display can clearly show the state and data, backlight enables you to see screen
clearly in dim environment, buttons for quick operation, easy to use.
3. Brushless type of controller, working silently and sensitive to the state of electric bike.

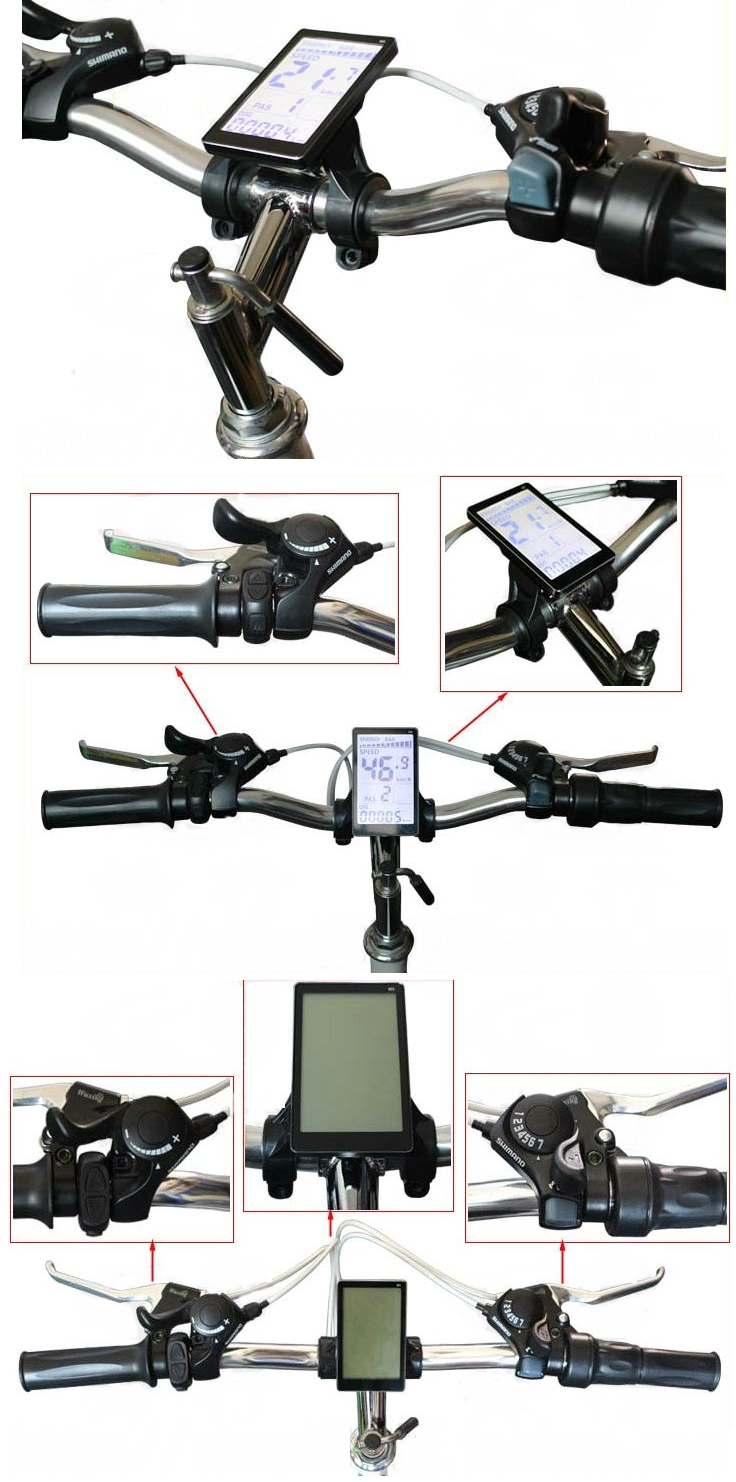

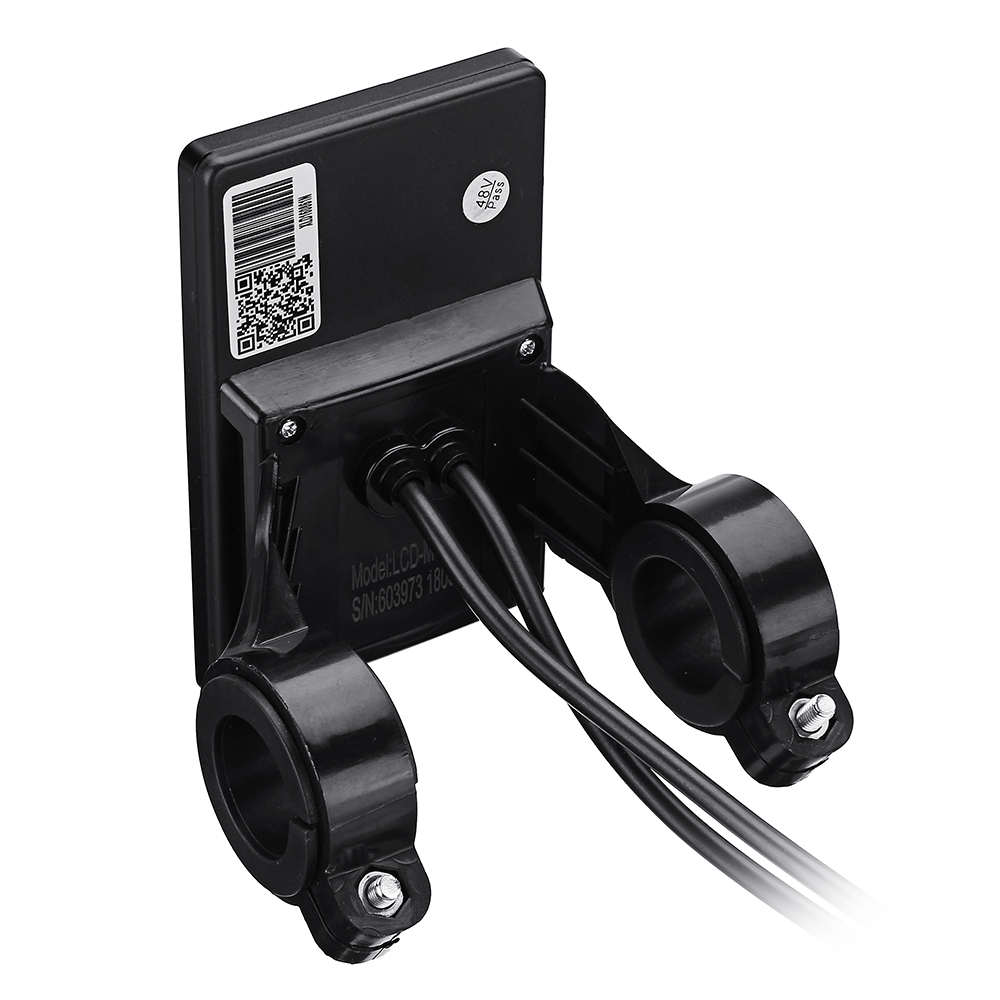

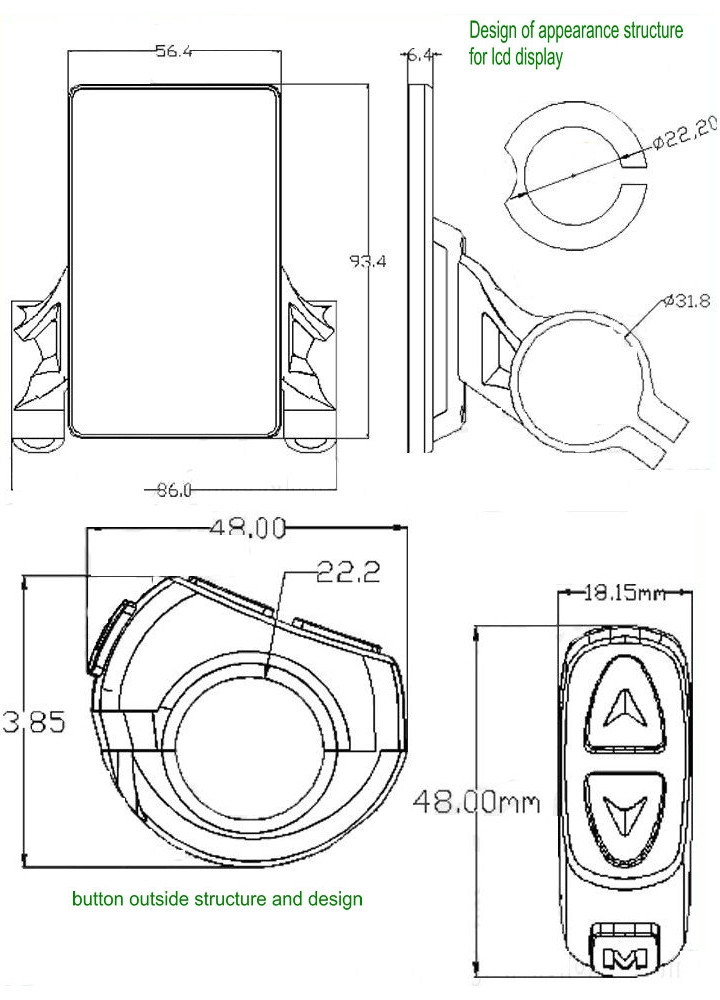

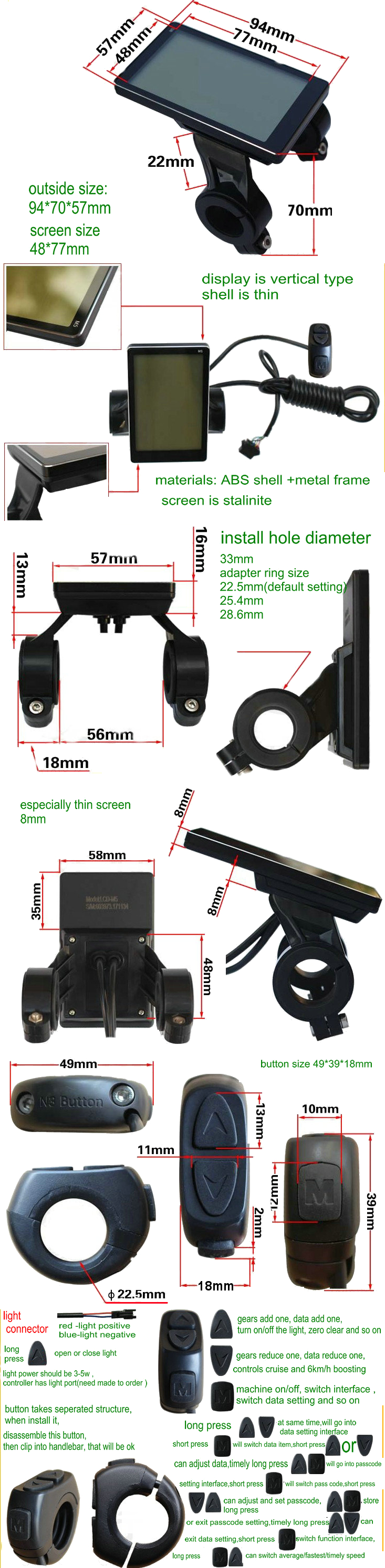

4.LCD display comes with mount ,suitable for 22mm handlebar.
5. Suitable for electric bicycles, cars, scooters.
6. Easy to install and use, comes with mount for LCD display and suitable for 22mm handlebar.
7.Fit for different battery: lead-acid, Li-Fe battery, LNCMO battery  {Li(NiCoMn)O2}, and so on.
For different material there is different under voltage protecting point.
8. Fit for DC brushless gear motor lower than 350w, and gearless motor, and high speed motor and so on
9.Suitable for: 250W/350W brushless DC motor (include with hall sensor and without hall sensor)

Specification:
Brushless Motor Controller:
Voltage:DC 24V/36V/48V/60V
Power:250W/350W
Low volts:DC 19V/30V/41V/52V
Max current available: 10A-20A (default setting 13A)
60° / 120° (Automatically indentify )
Operating Conditions: -40℃ ~80℃
Material: Plastic + Metal

Controller Function:
1. 1:1 pas power
2. Brake and cut off power
3. Connect with lcd display
4. Throttle
5. Horn/light power port
6. Self learning
7. Hall linear ebs brake
8. Cruise
9. 6km/h boosting

Controller Feature:
1. Automatically indentify motor phase and angle
2. Dual mode (When motor hall work normally, controller work with hall mode.
When motor hall damaged, controller can intelligently test it and change to no-hall mode and keep on work.
(other controller if not double mode, cannot work if motor hall damaged)
3. Can control and match with other electric parts
4. When battery voltage is not enough the controller will automatically lower current, this will protect your battery for longer life.

LCD Display:
Brief introduction to 6 mosfet controller dual mode type for lithium battery
Rated working voltage: 24V/36V/48V/60V
Power available :250W/350W
Max current available: 10A-20A (default setting 13A)
Battery Voltage Undervoltage Protection Point: DC 19V/30V/41V/52V

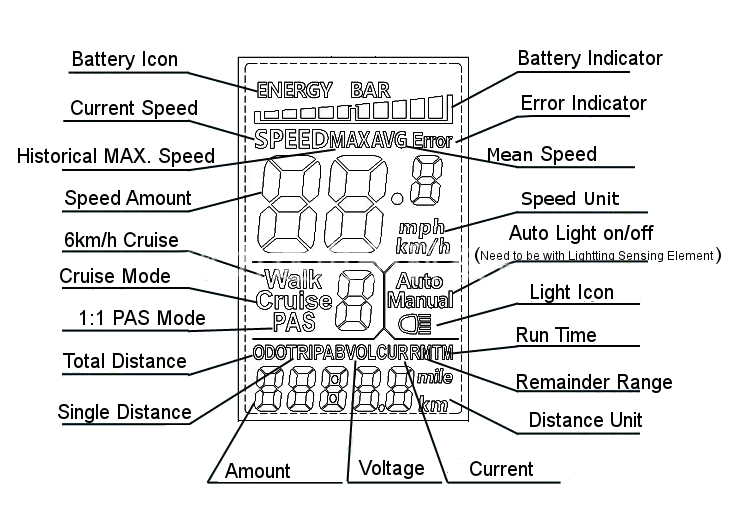

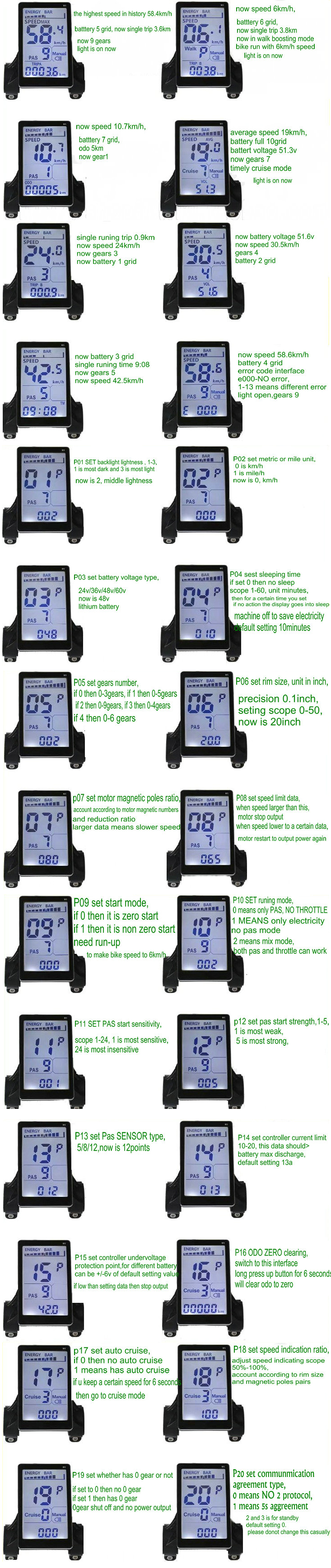

LCD Display Function:
Battery indicator, Motor power indicator, speed stage, bike speed indicator,
single trip distance, total trip distance, single trip time, battery detailed voltage, cruise control, assis control.

1. Adjust the brightness of backlight
2. Unit Changing, kilometer to mile, or mile to kilometer
3. Automatically indentify the voltage of battery
4. Sleep Time and Time Display Setting
5. Gear Setting
6. Accurate speed parameters
7. Limit the speed, speeding will brake
8. Start Mode Setting
9.Drive Mode Setting
10.Adjust the boost sensitivity
11. Change the strength and weakness of boost
12. Compatible magnetic points
13. Current and low voltage of controller setting
14. Total mileage accumulation and clearing
15. Cruise
16. Power-on password setting
17. 6km/h boosting and boosting at current speed

LCD Display Error Code:
002 brake error
003 pas sensor error
004 boosting , 6km/h cruise mode
005 timely cruise mode
006 battery level low
007 motor error
008 throttle error
009 controller error
010 communication receive error
011 communication sending error
012 DMS communication error

Note:
There are many kinds of brushless DC motor in the market, so for match with them, the controller has a "reset" function,
after you connect all the wires necessary include "reset" wires, your motor will run automatically, and you can see if your motor run in right way,
if yes, then disconnect the "reset" wires and forget them please,
if your motor run in reverse direction, then disconnect the "reset" wires and connect them again quickly, now your motor will run in right direction, and after 2~3 seconds, disconnect the "reset" wires again,
now the controller has match with your motor.
And please note, keep the "reset" disconnect after this job, thanks a lot.

Package Included:

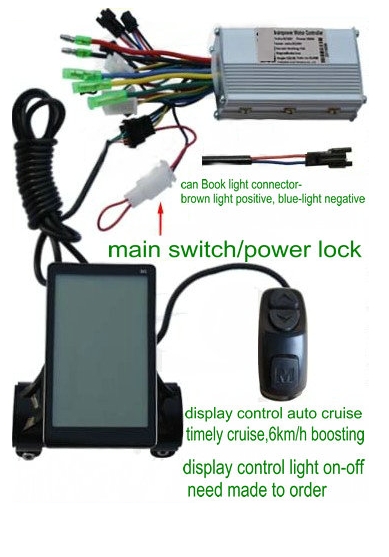

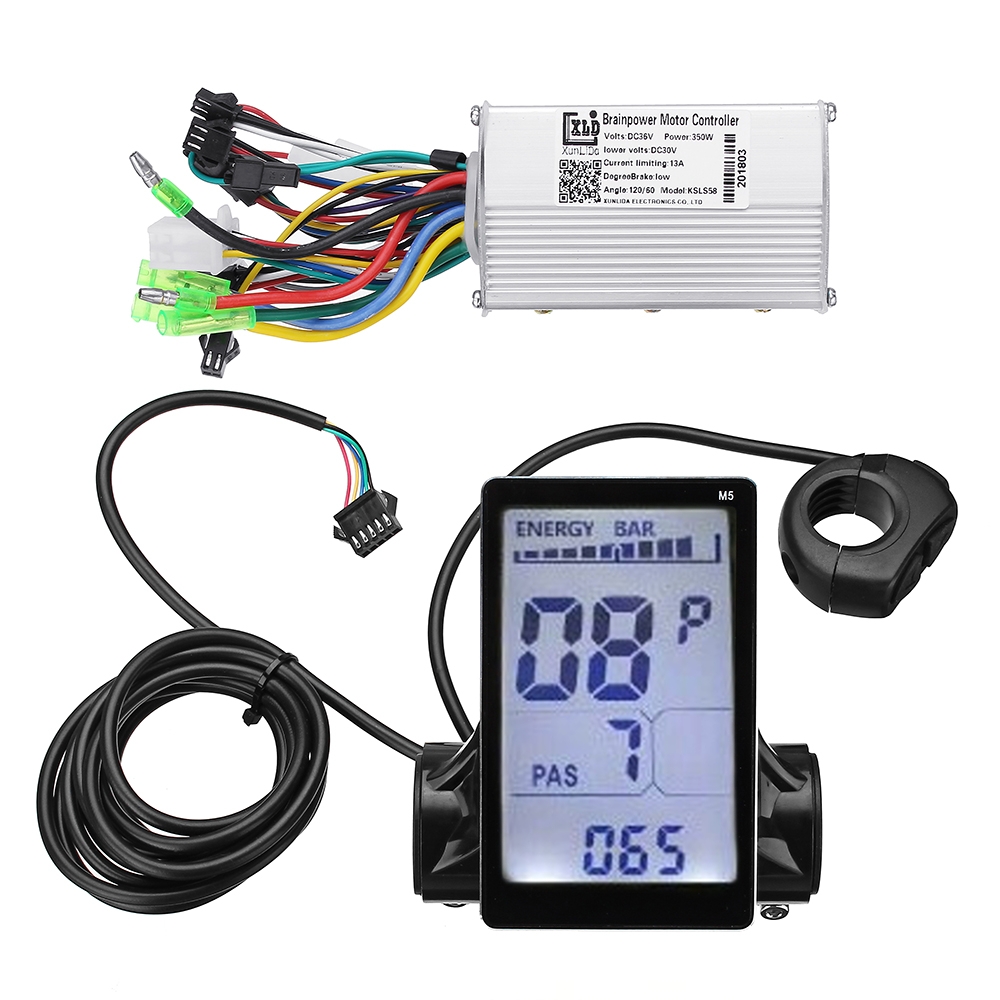

1 X Motor Controller

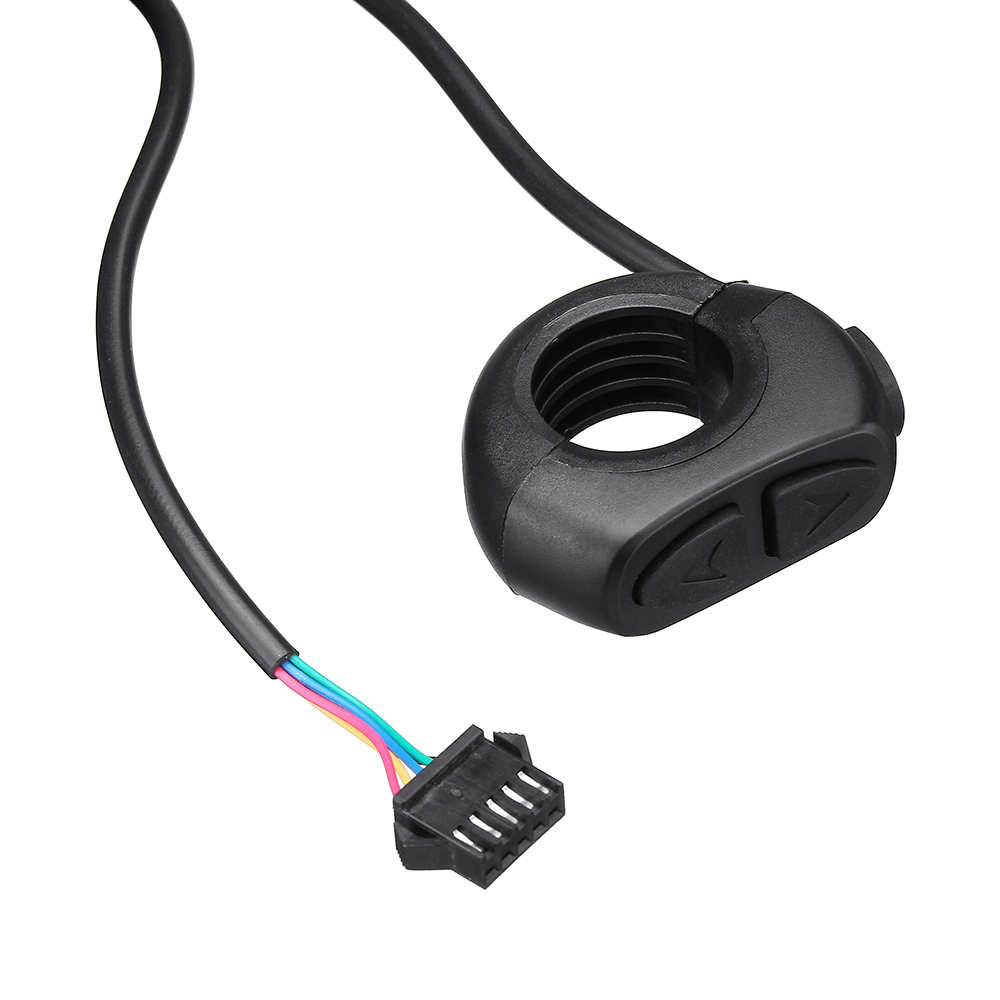

1 X LCD Display Instrument with Switch
