- Stock: In Stock
- Model: 1419198

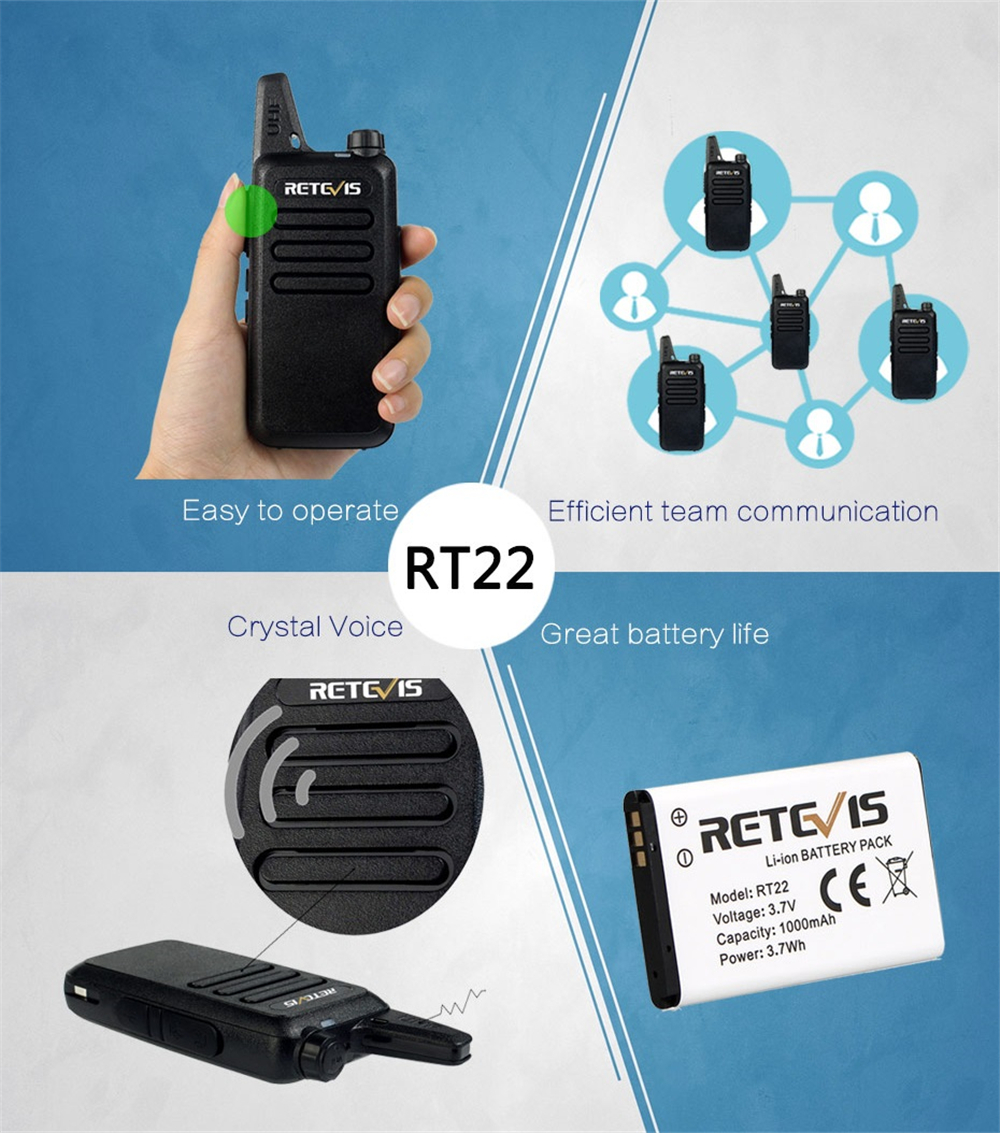

RT22 radio is small and lightweight, when you are working, it can bring more convenience for you.

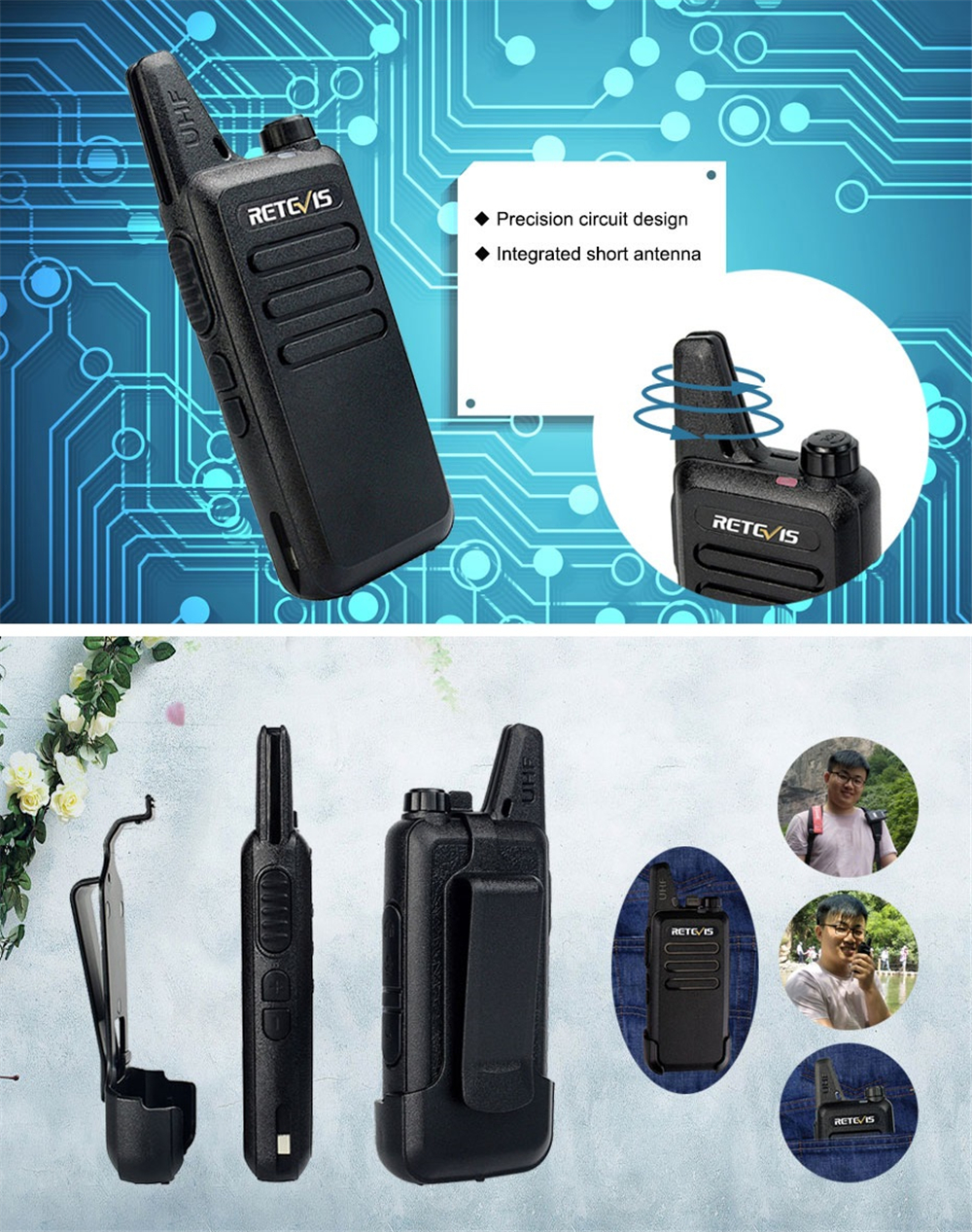

Integrated antenna is not easy to broken, also can provide long range transmission.

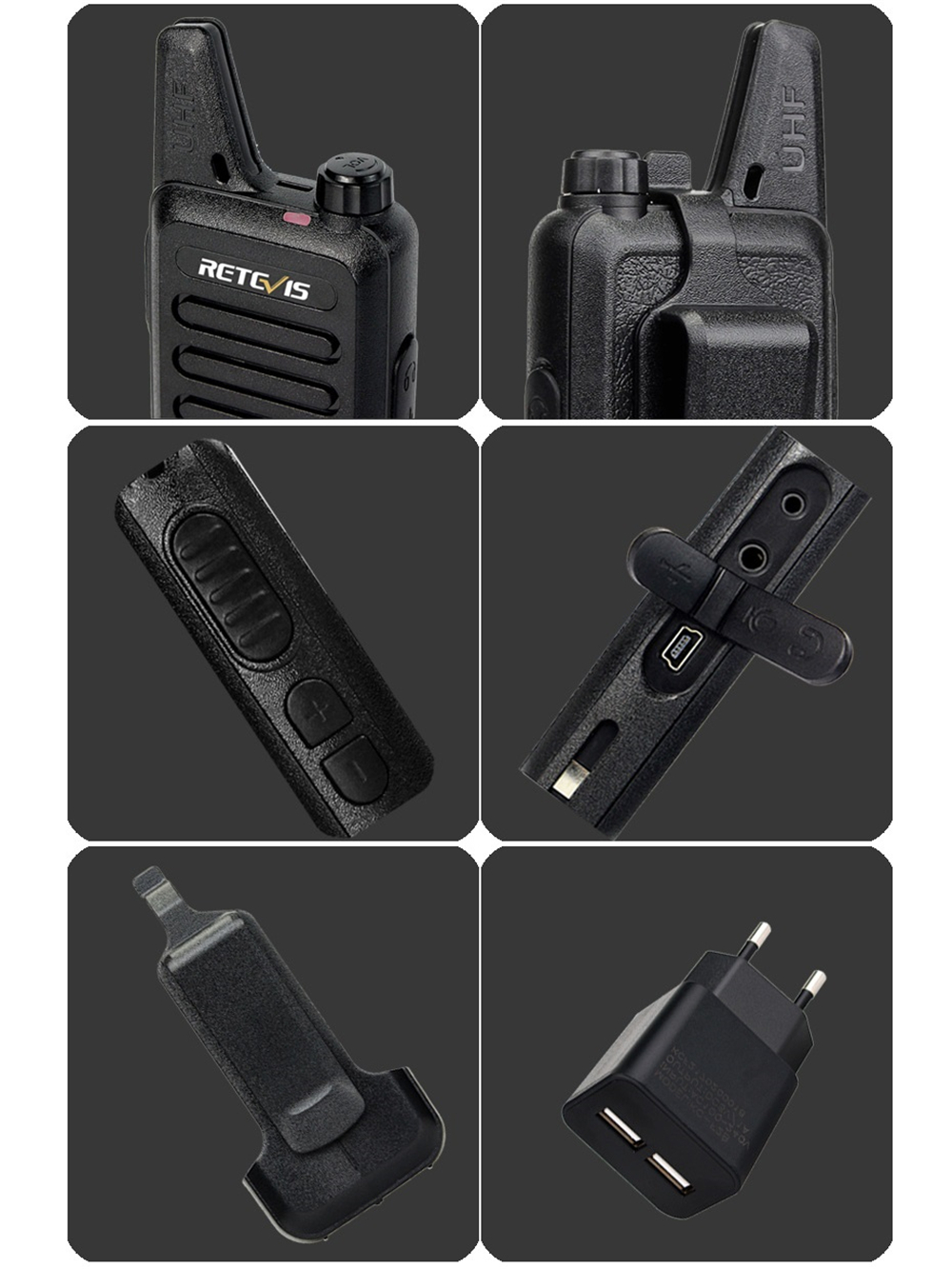

Durable belt clips, easy to disassemble and installation. You can easily attach it to your belt, pocket or backpack.

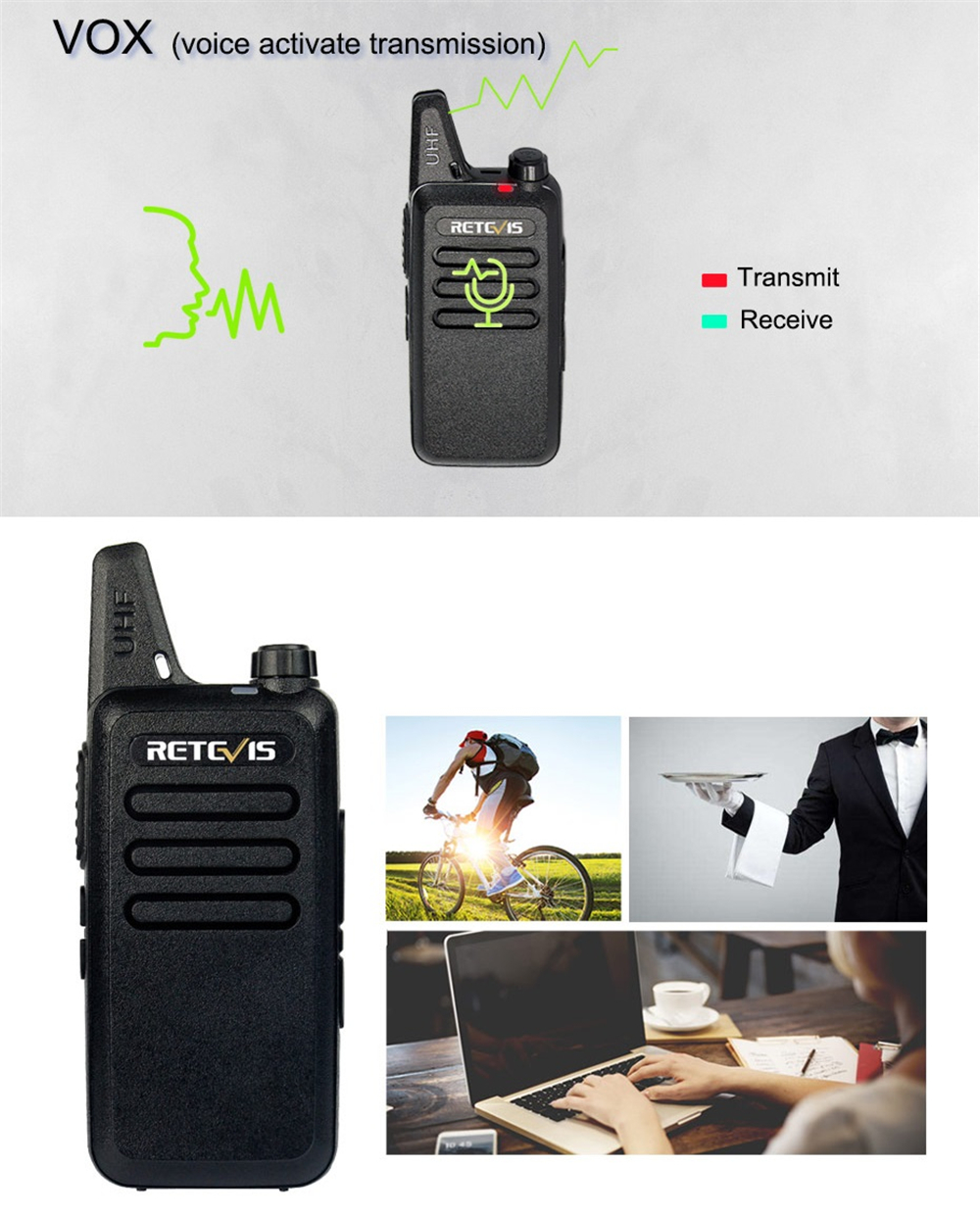

Retevis RT22 has VOX function which makes you have hands free operation.
Particularly apply to some hands-free occasions, such as cycling, holding objects, or working.
Here is the steps to turn on/turn off this function.
①: Change the radio to channel 7
â‘¡: Turn off the radio.
â‘¢: Press the "+" button, while turn on the radio, after hearing the voice prompt "vox on"/"vox off", release the + button.

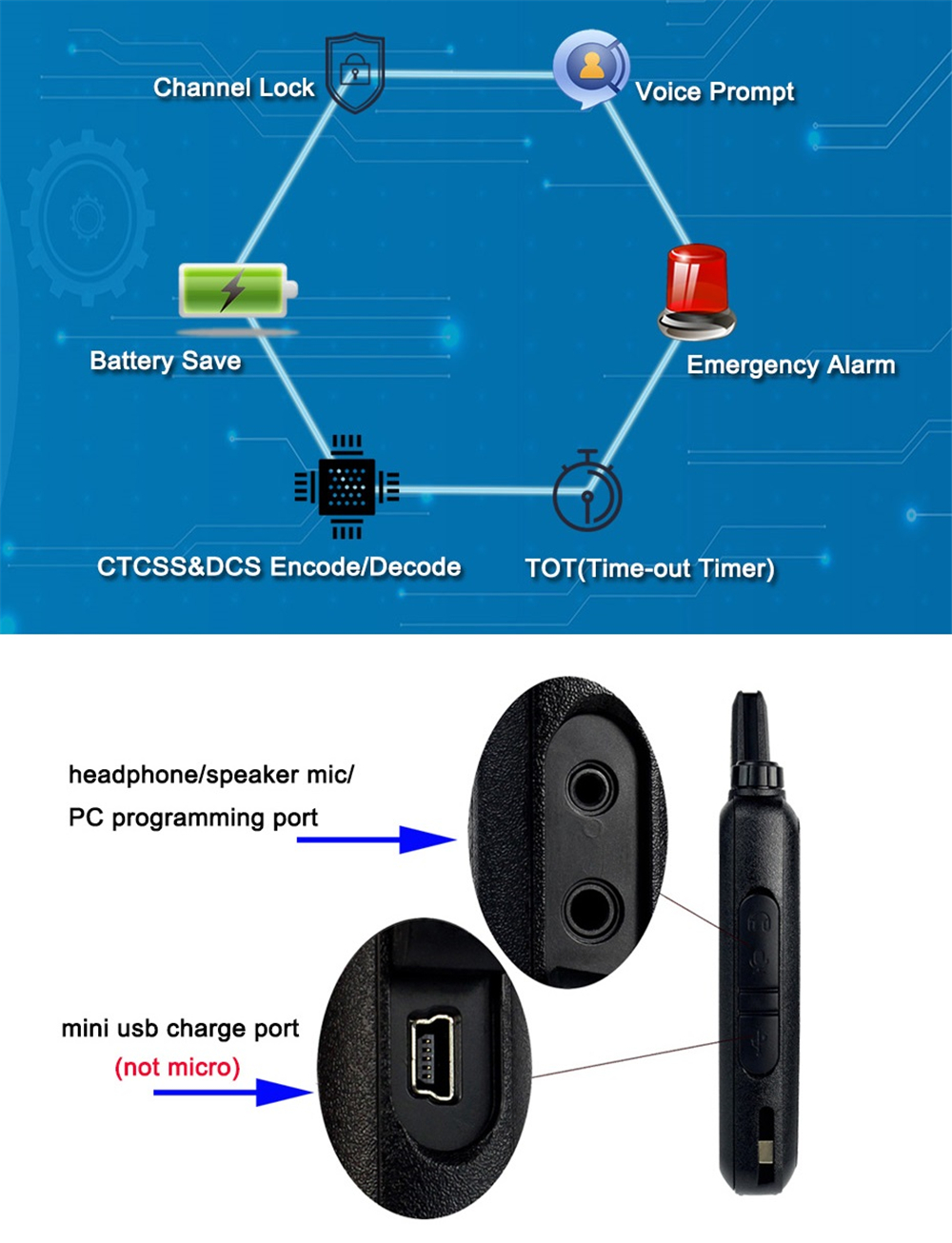

Channel lock allows your walkie-talkie to be fixed on one channel and will not be accidentally changed.
Retevis RT22 walkie talkie is suitable for a variety of occasions and a variety of people, can be widly used in big mall, restaurant, hotel, coffee shop, KTV, Bar, warehouse, property management, travel, hunting and so on.
ÂÂ
| Model Number | RT22 |
| Frequency Range | UHF:400-480MHz |
| Power | 2W |
| Colour | Black |
| Channel Capacity | 16 |
| Battery Capacity | Li-ion 1000mAh |
| Working Voltage | DC 3.7V |

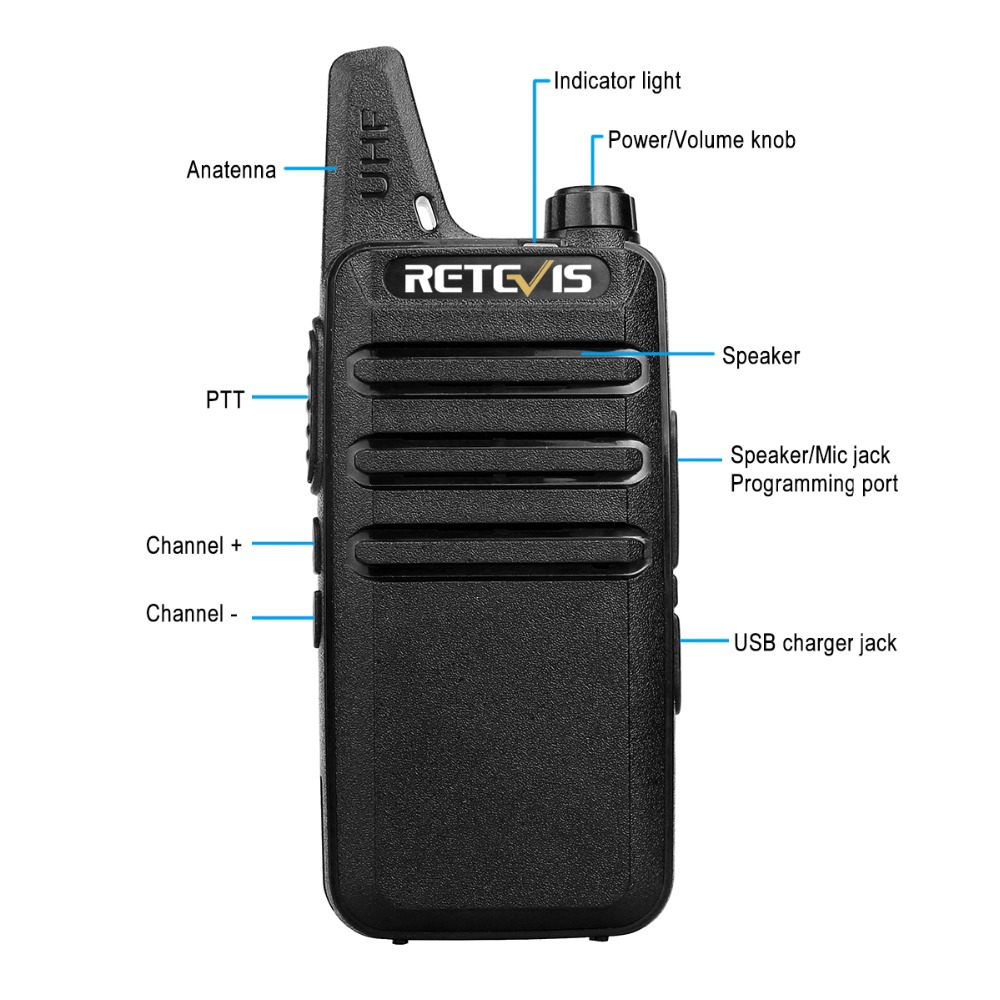

| Mic/Speaker/Programming Port | 2 pin plug type for Kenwood |
| Antenna | Integrated antenna |
| Antenna Impendence | 50Ohm |

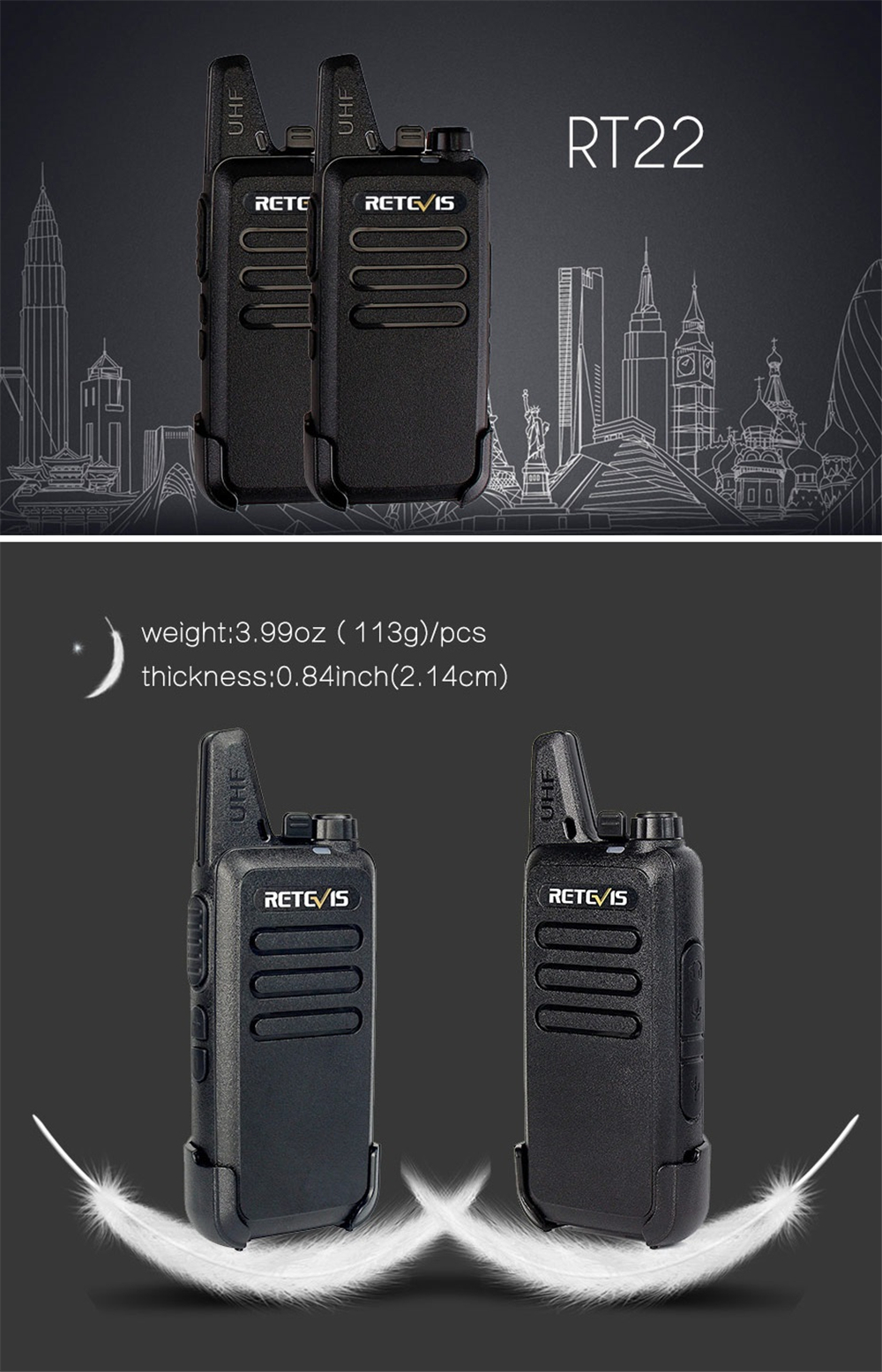

| Weight Of Two Way Radio (Include battery and antenna) | 3.99oz(113g) |
| Size Of Two Way Radio | 5.32x2.16x0.84inch(13.5x5.5x2.14cm) |
| Transmitter | |
| Output Power | 2W/1W |
| The Maximum Deviation | ≤±5KHz |
| Residual Radiation | <60dB |
| Current | ≤1000mA |
| Audio Response | +7~-12.5dB |
| Receiver | |
| Sensitivity | ≤0.16µV(12dB SINAD) |
| Squelch Sensitivity | <0.2µV |
| Intermodulation | 50dB |
| Audio Power | >=300mW |
| Current | ≤100mA |
| Squelch Current | 20mA |

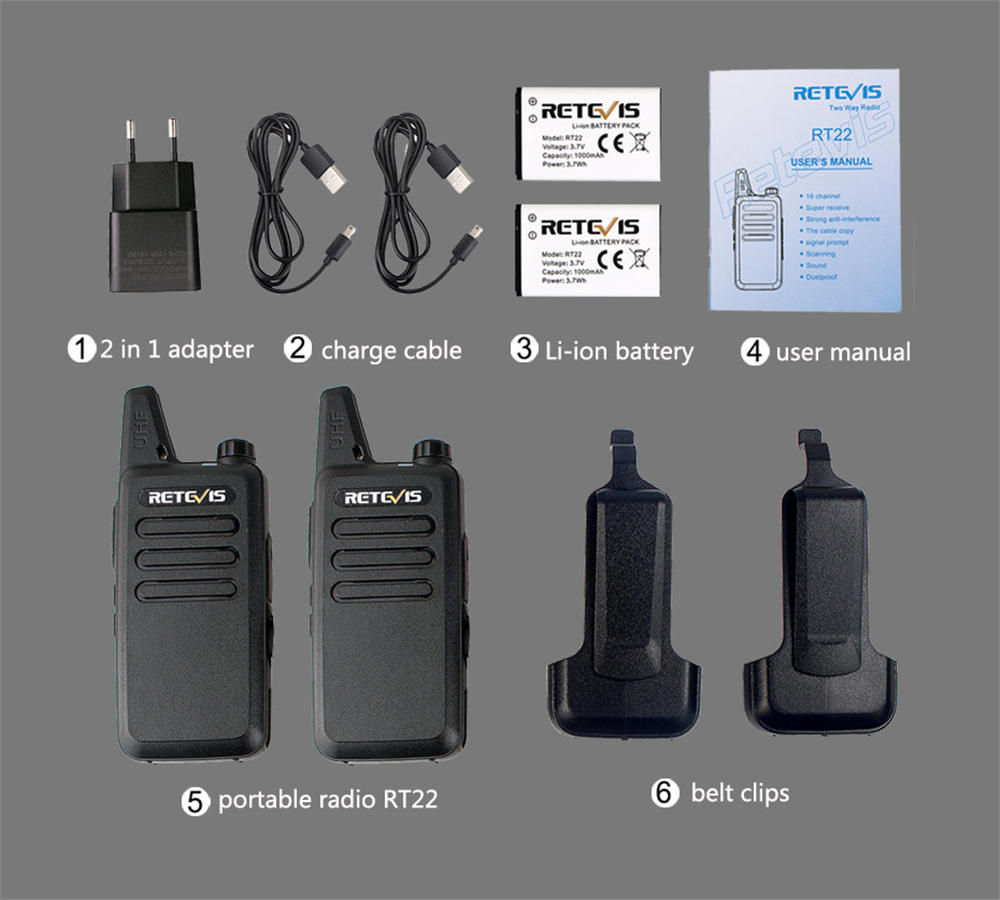

Package includeds :
