  • Stock: In Stock
  • Model: 1296512
$56.81
Ex Tax: $56.81

Available Options







5 PCS Racerstar SPROG X 2206 2300KV 3-4S Brushless Motor 2 CW & 3 CCW for RC Drone FPV Racing

Specification:
Brand Name: Racerstar
Model: SPROG X 2206
Item Name: 2206 2300KV 3-5S Brushless Motor
Motor KV: 2300KV
Quantity:  2 CW Screw Thread & 3 CCW Screw Thread
Idle Current (Io/10V): 1.52A
Battery: 3-4S lipo battery
Net Weight: 34g

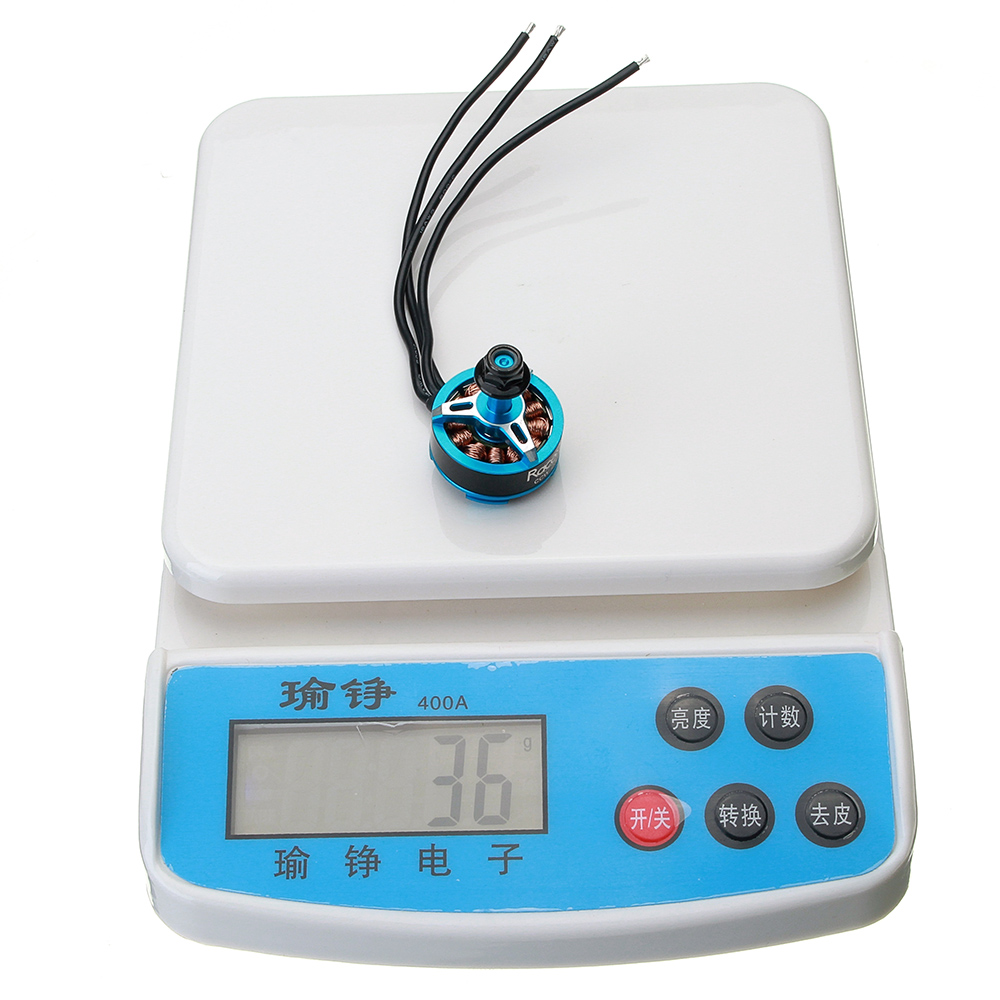

                    36g ( with nut )
Max. Con. current: 38A
Max.Con. power: 608W
Configu-ration: 12N/14P
Motor Resistance (RM): 0.0372Ω
Max thrust: 1287g (4S/5")

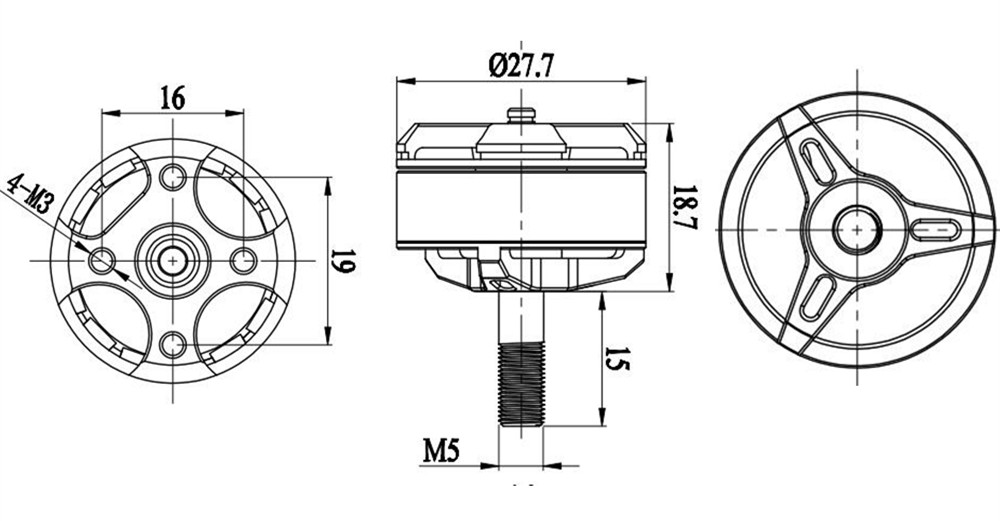

Stator Diameter: 22mm
Stator Thickness: 6mm
Motor Diameter: 27.7mm
Shaft diameter: M5
Motor Body Length: 18.7mm
Overall Shaft Length: 33.7mm
Bolt holes spacing: 16/19mm
Bolt thread: M3
Recommend Propeller: 5 / 6 Inch

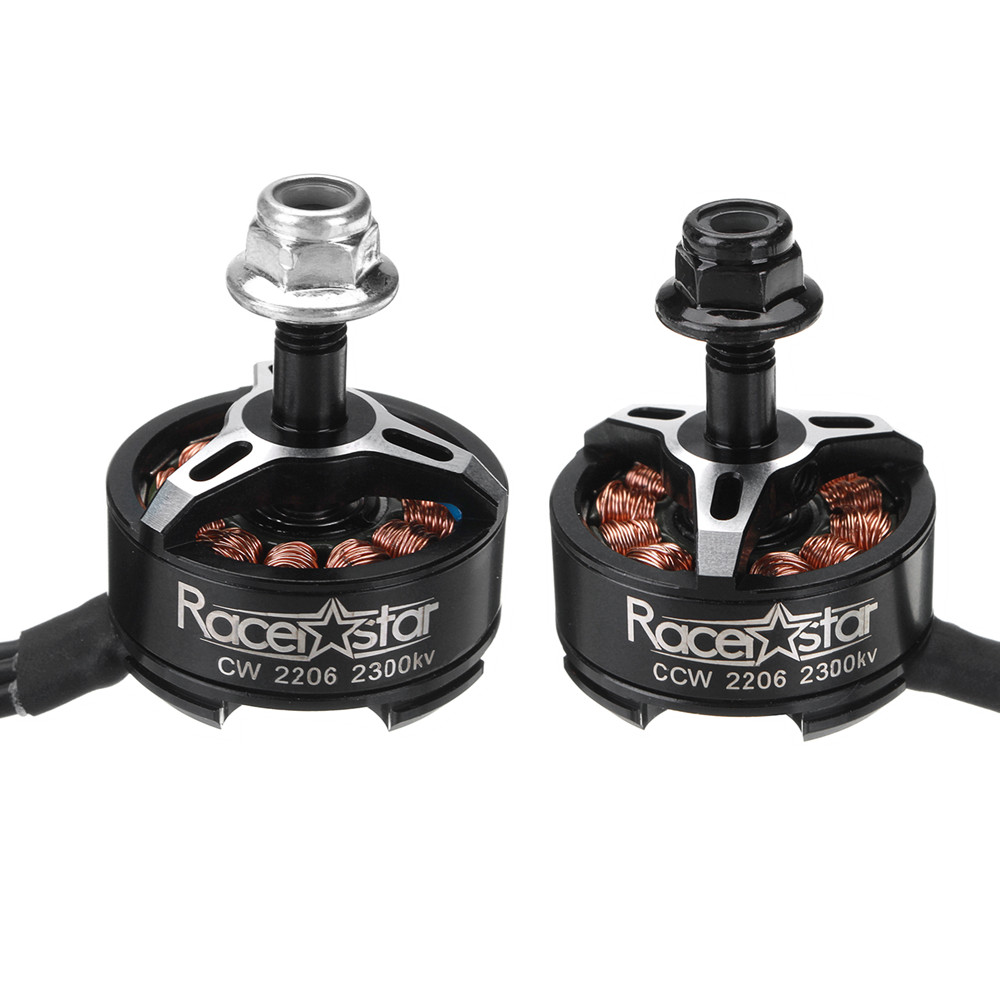

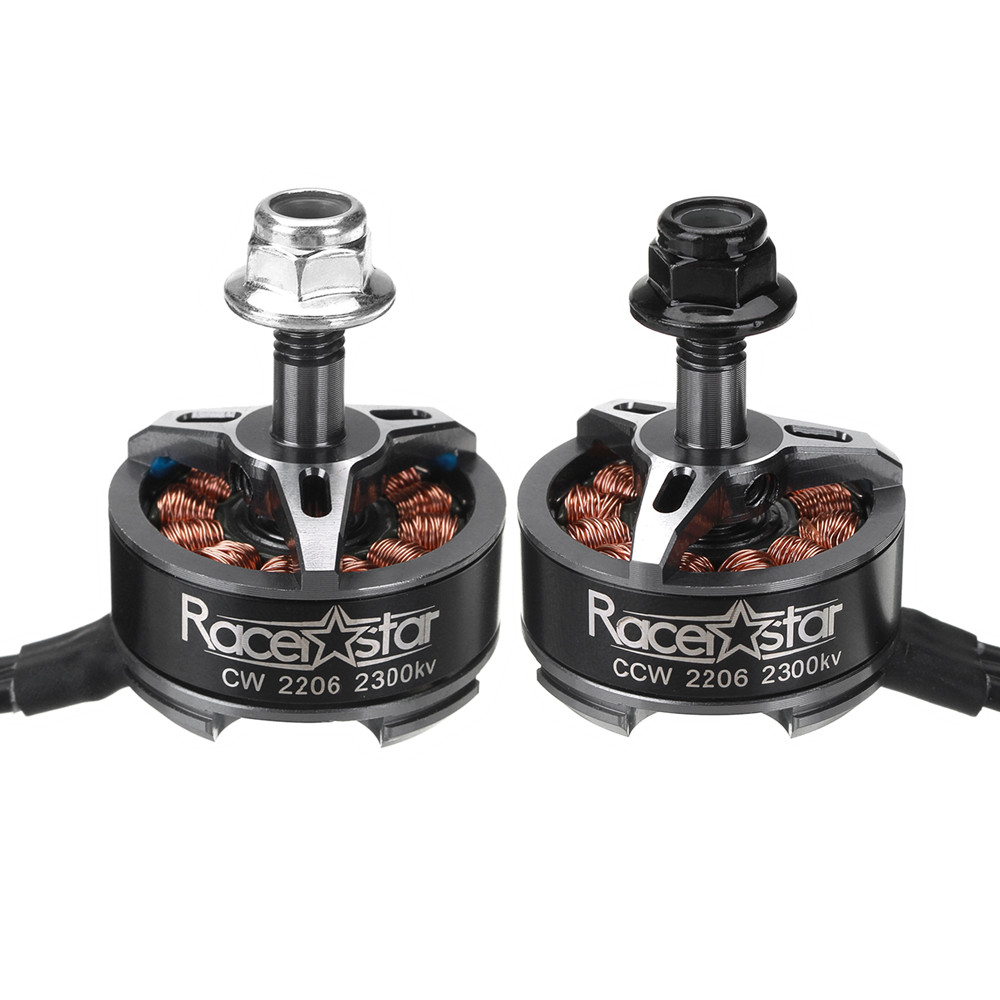

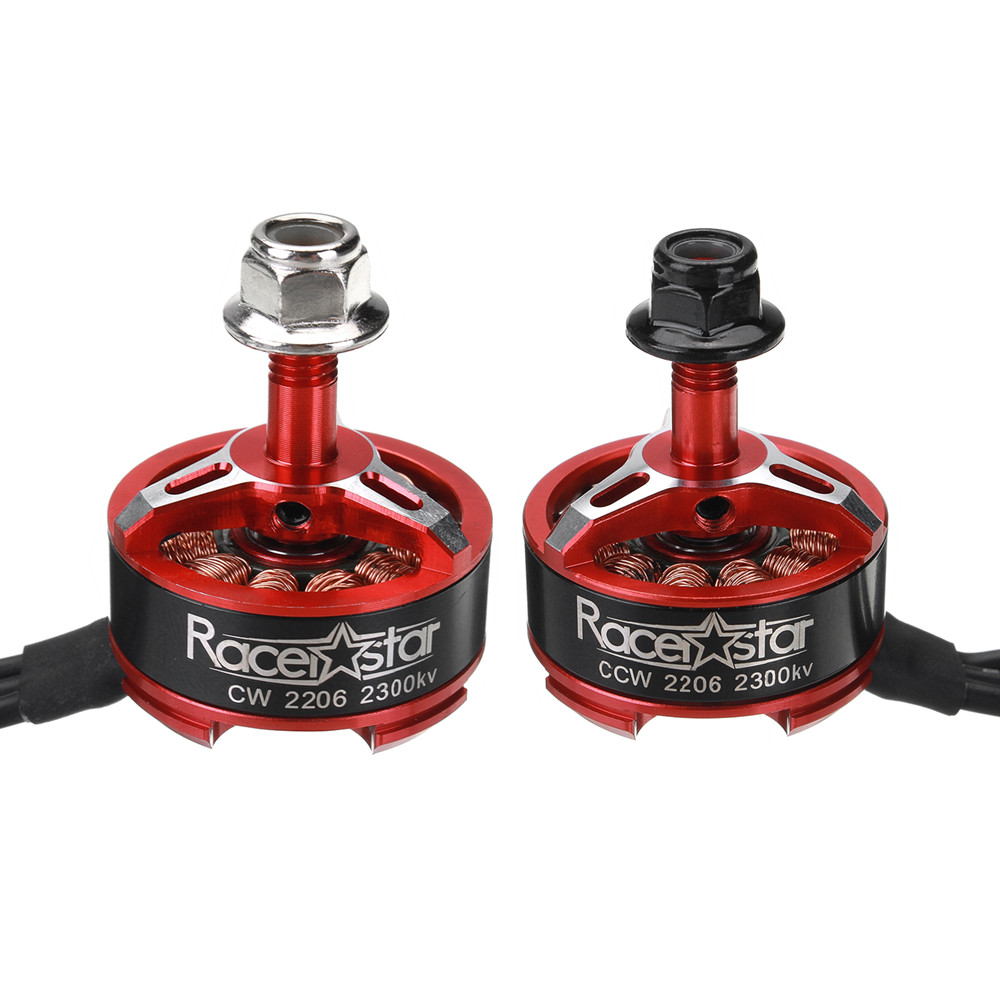

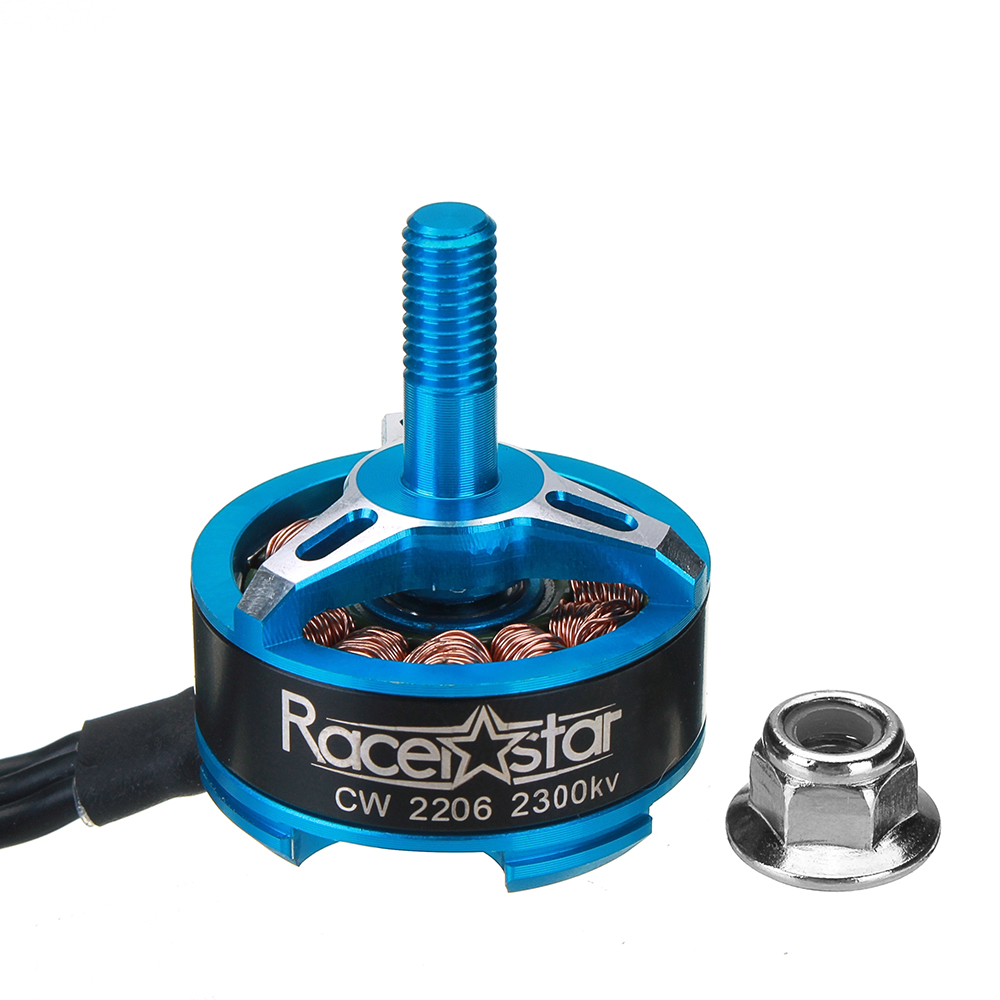

CW screw thread motor comes with Siliver cap
CCW screw thread motor comes with Black cap

Test Table:

ltem NO. Volts  (V) Prop Throttle Amps  (A) Watts (W) Thrust  (g) Efficiency  (g/W) Operating
Temperature
C2206 2300KV  16V T5046/3P 30% 1.9 30.4  153 5.03  53℃
40% 3.7 59.2  261 4.41
50% 5.9 94.4  381 4.04
60% 8.8 140.8  492 3.49
70% 13.1 209.6  648 3.09
80% 17.9 286.4  785 2.74
100% 38.1 609.6  1287 2.11
C2206 2300KV  16V 6040BN/3P 30% 2.5 40.0  221 5.53  82℃
40% 5 80.0  363 4.54
50% 8.1 129.6  503 3.88
60% 12.1 193.6  667 3.45
70% 16 256.0  771 3.01
80% 24.5 392.0  960 2.45
100% 39.5 632.0  1356 2.15

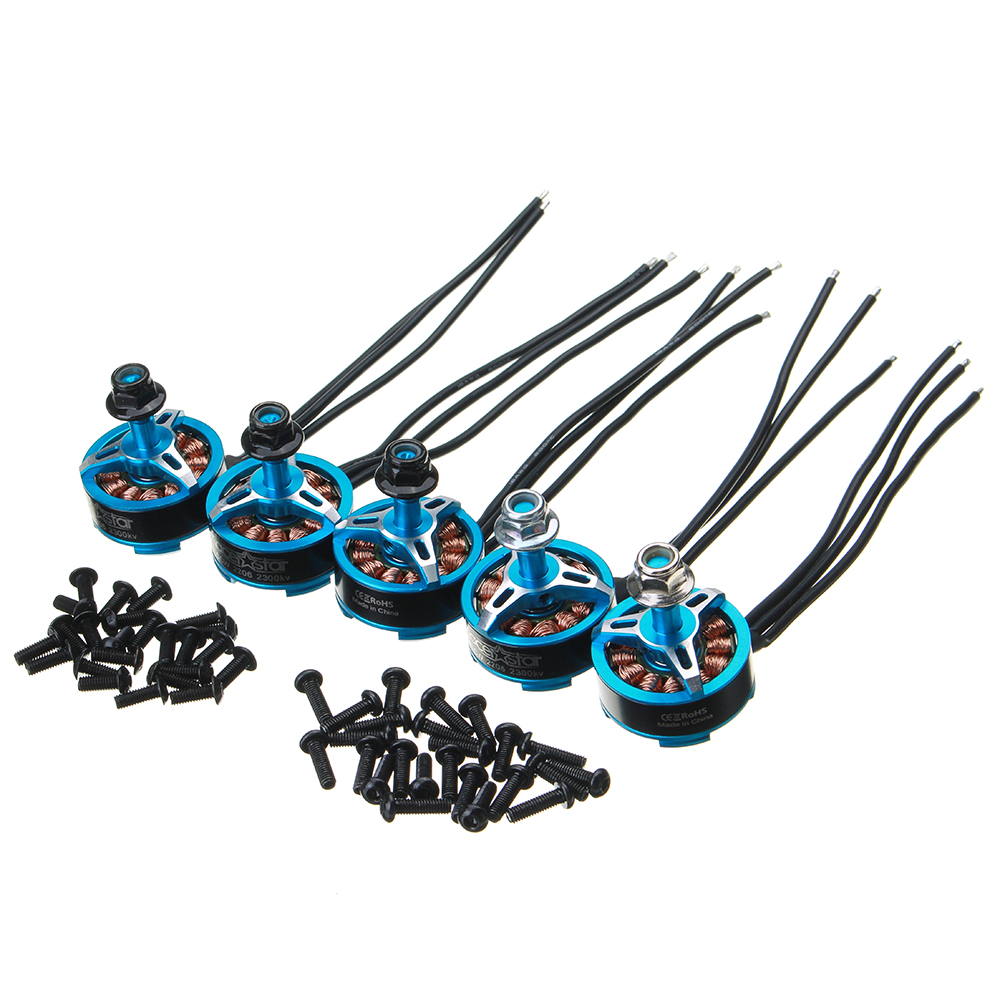

Package Included:
2x 2206 2300KV CW Motor
3x 2206 2300KV CCW Motor
1x bag of Screws
