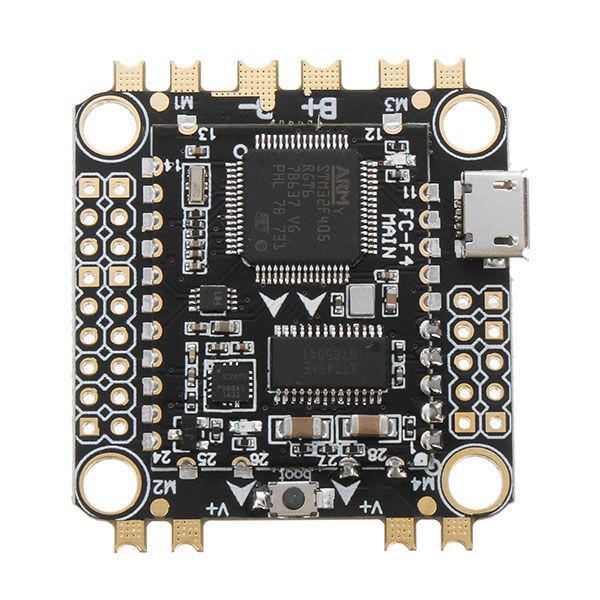

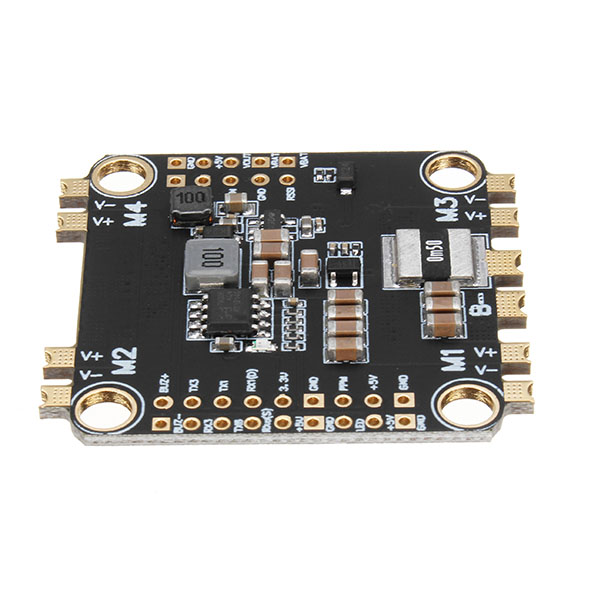

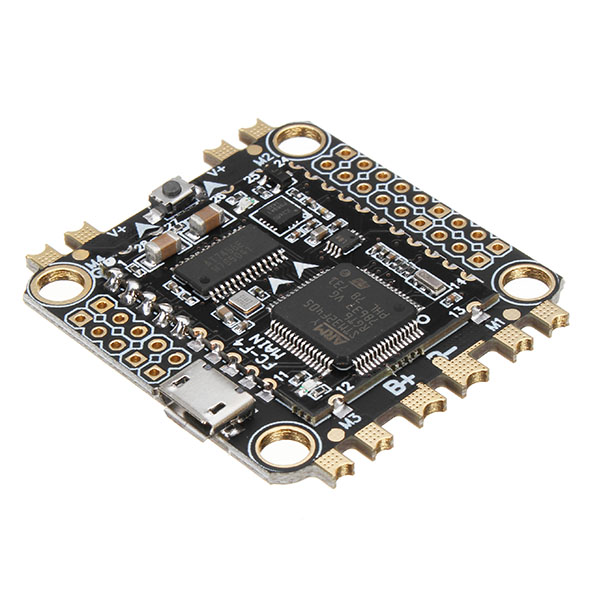

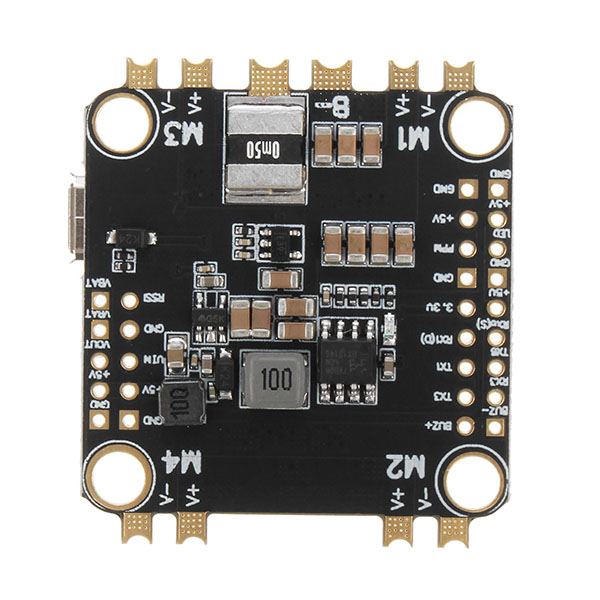

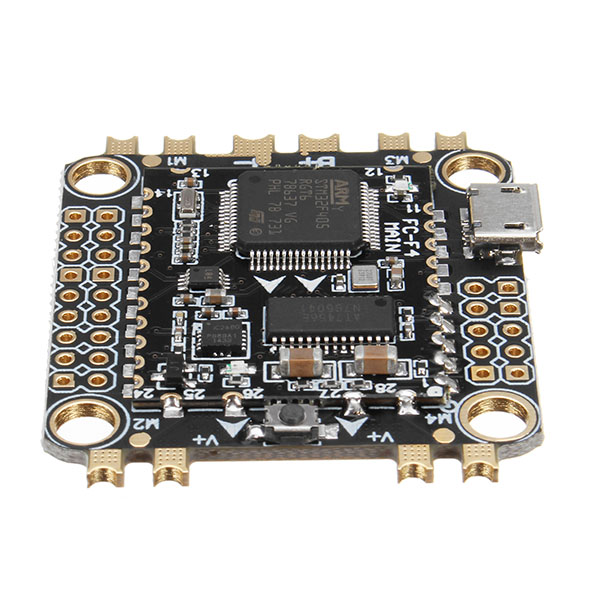

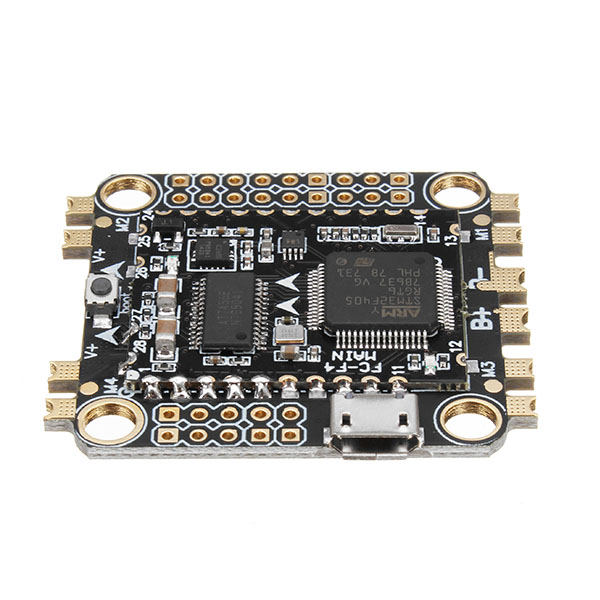

30.5x30.5mm Omnibus F4 Flight Controller AIO OSD 5V BEC and Current Sensor

Specification:
Item Name: Omnibus F4 FC AIO OSD BEC and Current Sensor
Mounting Hole: 30.5x30.5mm
MCU: STM32F405 ,  CRT6, 8K
Sensor:MPU6000
Input Voltage: 2-6S Lipo
- BEC Output: 5V 3A
- Integrated with OSD, support BF Ground Station adjust OSD
- Built-in Current Sensot, can monitor current
Fimware: betaflihgt_3.2.0_OMNIBUSF4SD
Receiver: Support PPM, SBUS, IBUS, DSM2/ DSMX Receiver
Size: 42x36mm

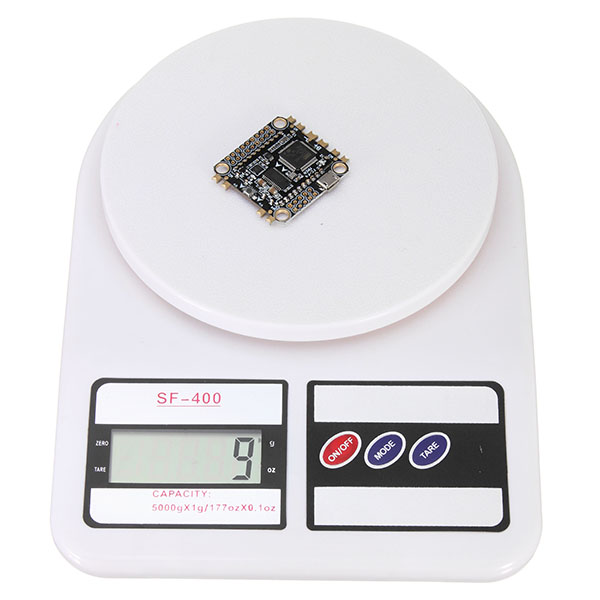

Weight: 9g

Features:
- STM32F405 CRT6, refresh rate up to 8K
- PCB 3OZ copper enhance current stability and cooling fast
- 5V 3A BEC output
- Exposed pad for easy soldering
- Integrated OSD,  no need to flash firmware additionally,debug OSD via BF ground station.
- Integrated current meter to monitor the real-time power consumption
- Adjust the PID by OSD via remote control
- Adjust the VTX via open ports such as power, frequency band, frequency point (Note: The VTX should have this function like TBS one and the upcoming - DYS VTX.)
- With 4 damping balls reduce the vibration to make it fly stably.

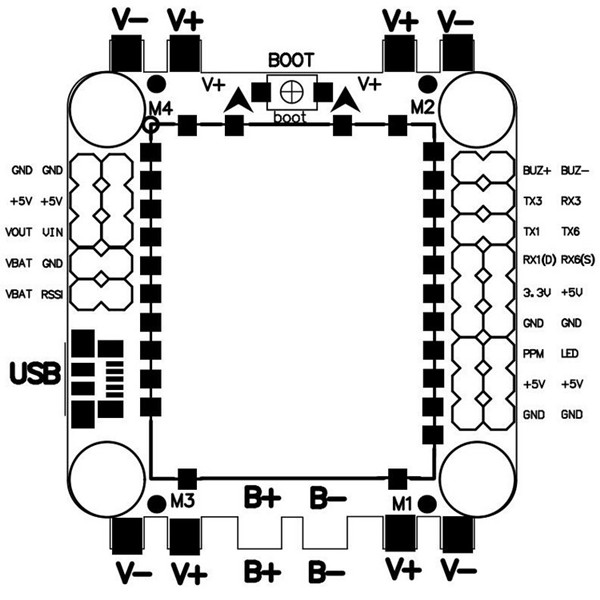

Instruction for diagram pciture:
1.  M1-M4 :  ESC Power Cable
2.  V+ & V-:  ESC's "+" & "-"
3. BOOT  button: to flash firmware
4. +5V: output 3A, can connect VTX, Camera and receiver
5. RX6 (S): Connect SBUS Receiver
6. RX1 (D): Connect DSM2/DSMX/IBUS Receiver
7. PPM: Connect PPM Receiver
8. RX3 , TX3: Series UART 3
9. Buz+ & Buz- : Possitive Buzzer "+" and "-"

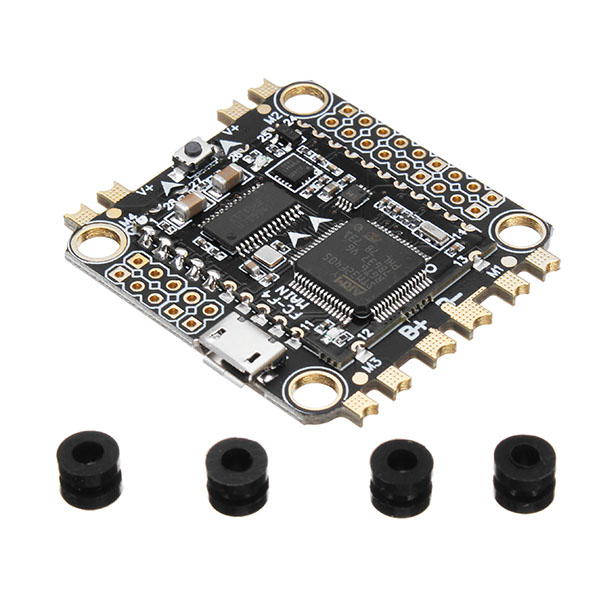

Package Included:
1x Omnibus F4 Flight Controller
4x Anti-vibration Rubber Shock Balls
