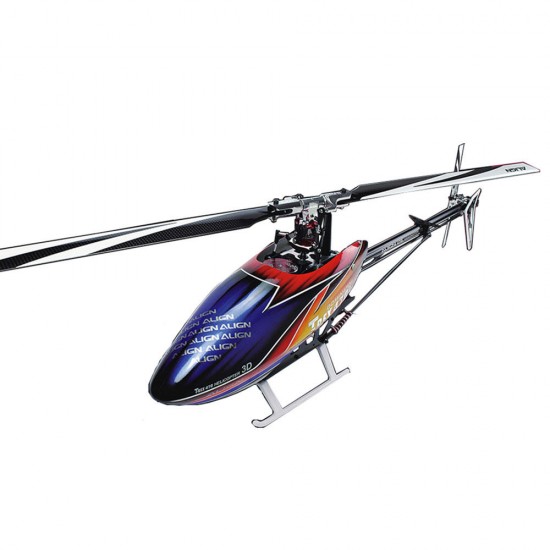

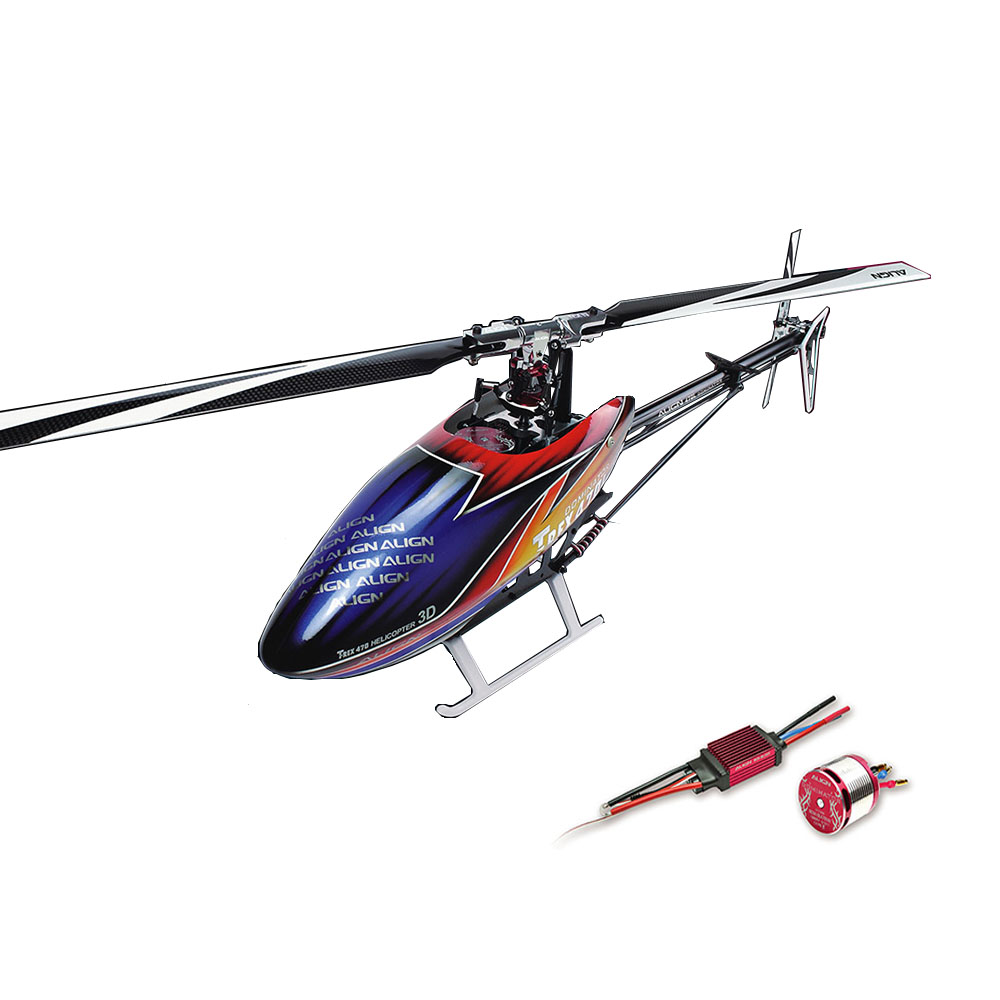

ALIGN T-REX 470LM E06 Dominator 6CH 3D Flying Belt Drive RC Helicopter Metal Kit With 1800KV Motor 50A ESC
- Stock: In Stock
- Model: 1554381
$434.99
Ex Tax: $434.99
Description:
Brand: ALIGN
Item: T-rex 470LM RC Helicopter

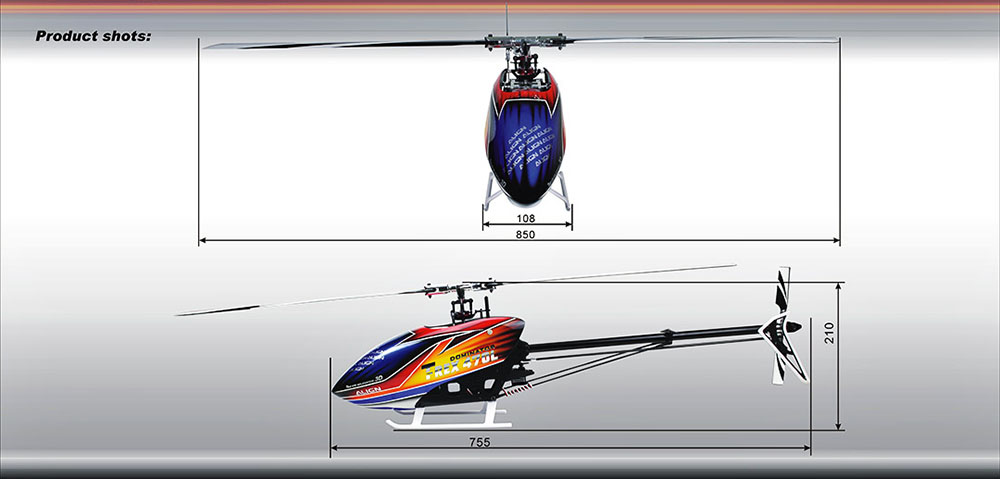

Body Length: 755mm
Body Height: 210mm
Body Width: 108mm
Main Blade Length: 380mm
Main Rotor Diameter: 850mm
Tail Rotor Diameter: 181mm
Motor Pinion Gear: 11T
Main Drive Gear: 121T
Main Drive Pulley: 56T
Tail Drive Gear: 15T
Drive Gear Ratio: 11:1:3.73
Weight(w/o battery): 860g
ÂÂ
Features:ÂÂ
- Extended 380mm main blade effectively improve the flying stability and power performance. The new engineered airfoil design effectively reduces turbulence at the end of the main blade,this saves power consumption during extreme 3D flight. New 69 size tail blade are longer in length and offer superior tail holding performance, even during demanding 3D flight.

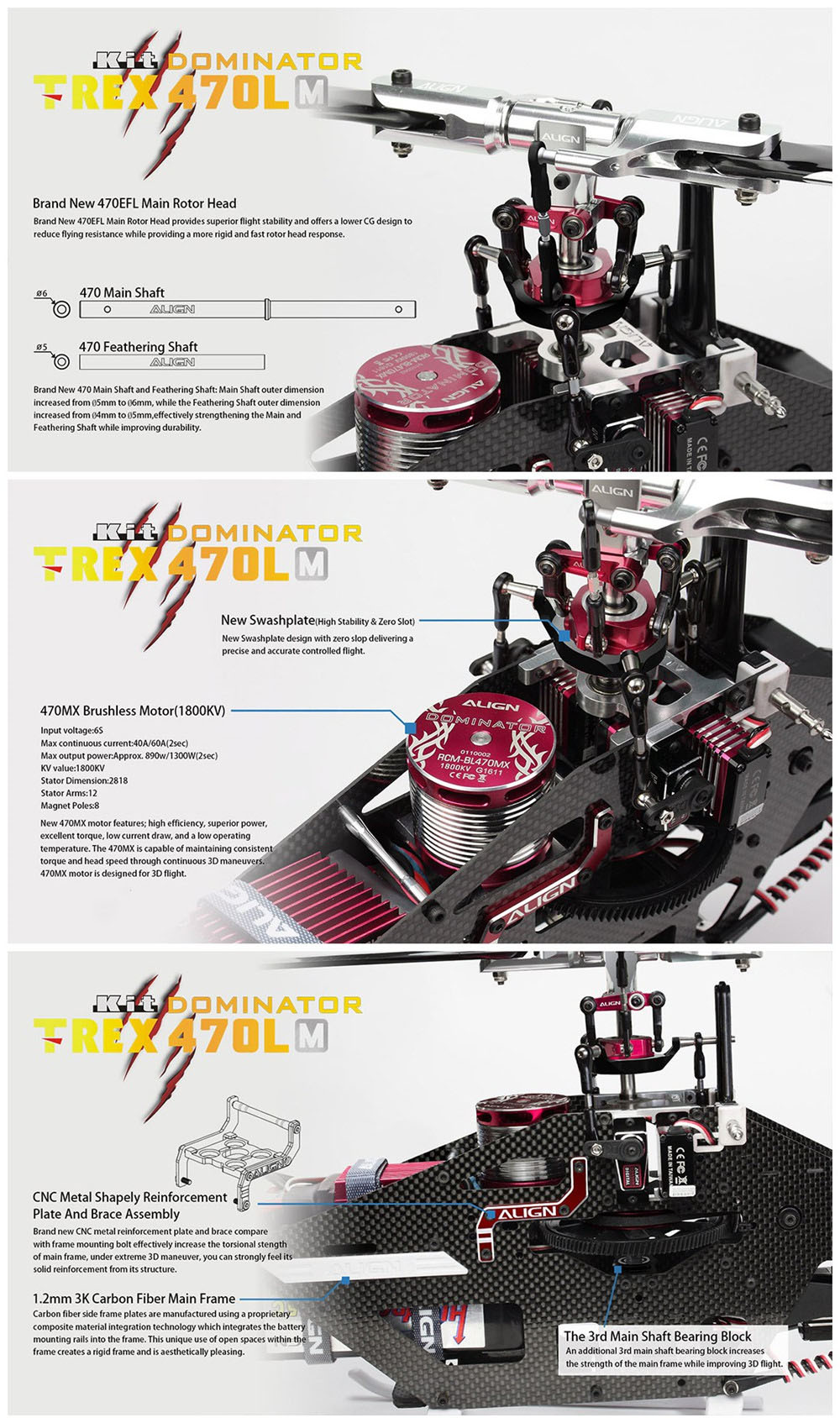

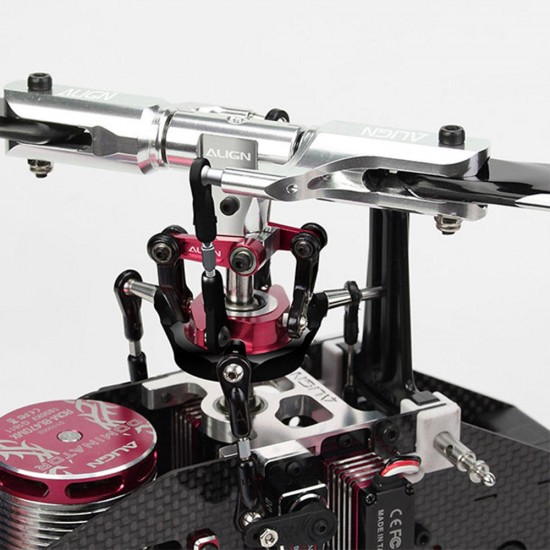

- Brand New 470EFL Main Rotor Head provides superior flight stability and offers a lower CG design to reduce flying resistance while providing a more rigid and fast rotor head response. Brand New 470 Main Shaft and Feathering Shaft: Main Shaft outer dimension increased from Ø5mm to Ø6mm, while the Feathering Shaft outer dimension increased from Ø4mm to Ø5mm,effectively strengthening the Main and Feathering Shaft while improving durability.

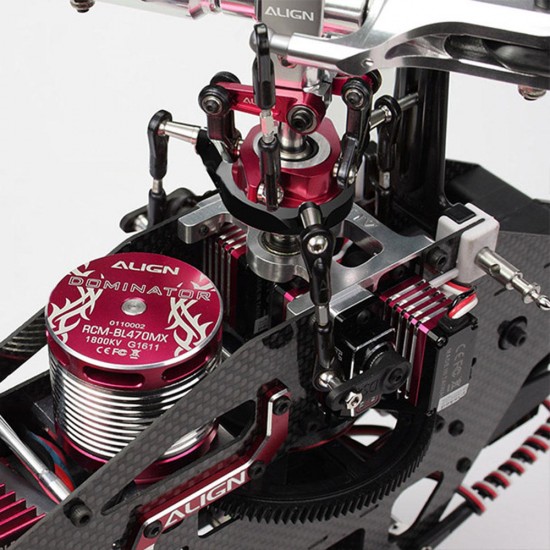

- New 470MX motor features; high efficiency, superior power, excellent torque, low current draw, and a low operating temperature. The 470MX is capable of maintaining consistent torque and head speed through continuous 3D maneuvers. 470MX motor is designed for 3D flight.
- New Swashplate design with zero' slop delivering a precise and accurate controlled flight.
Brand new CNC metal reinforcement plate and brace compare with frame mounting bolt effectively increase the torsional stength of main frame, under extreme 3D maneuver, you can strongly feel its solid reinforcement from its structure.
- Carbon fiber side frame plates are manufactured using a proprietary composite material integration technology which integrates the battery mounting rails into the frame. This unique use of open spaces within the frame creates a rigid frame and is aesthetically pleasing.

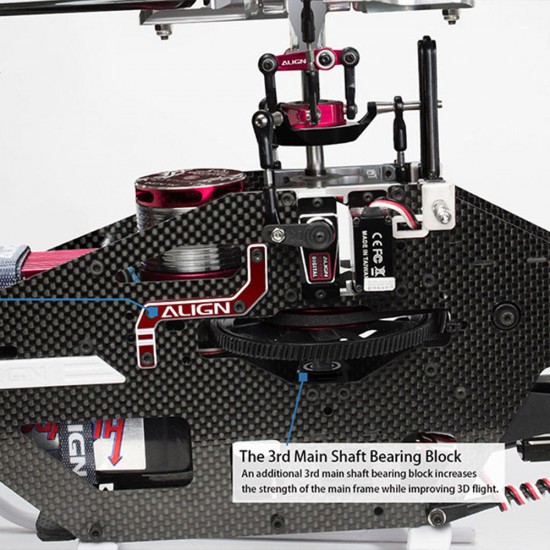

- An additional 3rd main shaft bearing block increases the strength of the main frame while improving 3D flight.

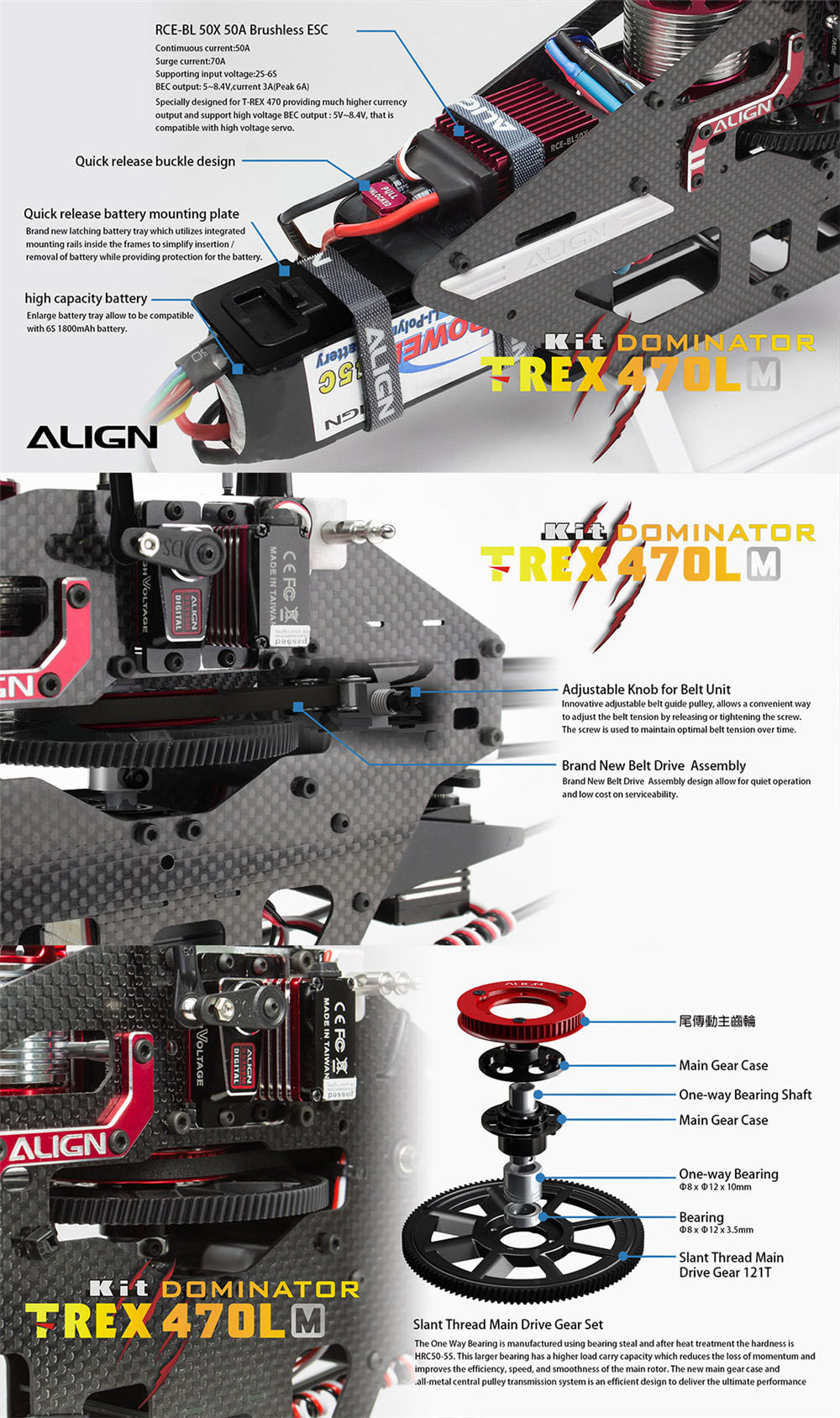

- Brand new latching battery tray which utilizes integrated mounting rails inside the frames to simplify insertion / removal of battery while providing protection for the battery.
- Specially designed for T-REX 470 providing higher currency output and support for high voltage servos with an internal BEC output from 5V to 8.4V which can be set up based on servo specification.
- DS450M HV Cyclic and DS455 HV Rudder servos support up to 8.4V for superior responsiveness, extreme torque, and improved performance.
- Innovative adjustable belt guide pulley, allows a convenient way to adjust the belt tension by releasing or tightening the screw. The screw is used to maintain optimal belt tension over time.
- The One Way Bearing is manufactured using bearing steal, and after heat treatment, the hardness is HRC50-55. This larger bearing has a higher load carry capacity which reduces the loss of momentum and improves the efficiency, speed, and smoothness of the main rotor. The new main gear case and all-metal central pulley transmission system is an efficient design to deliver the ultimate' performance.

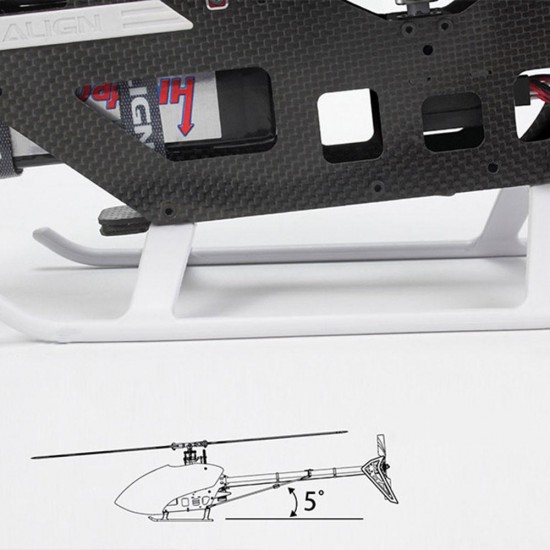

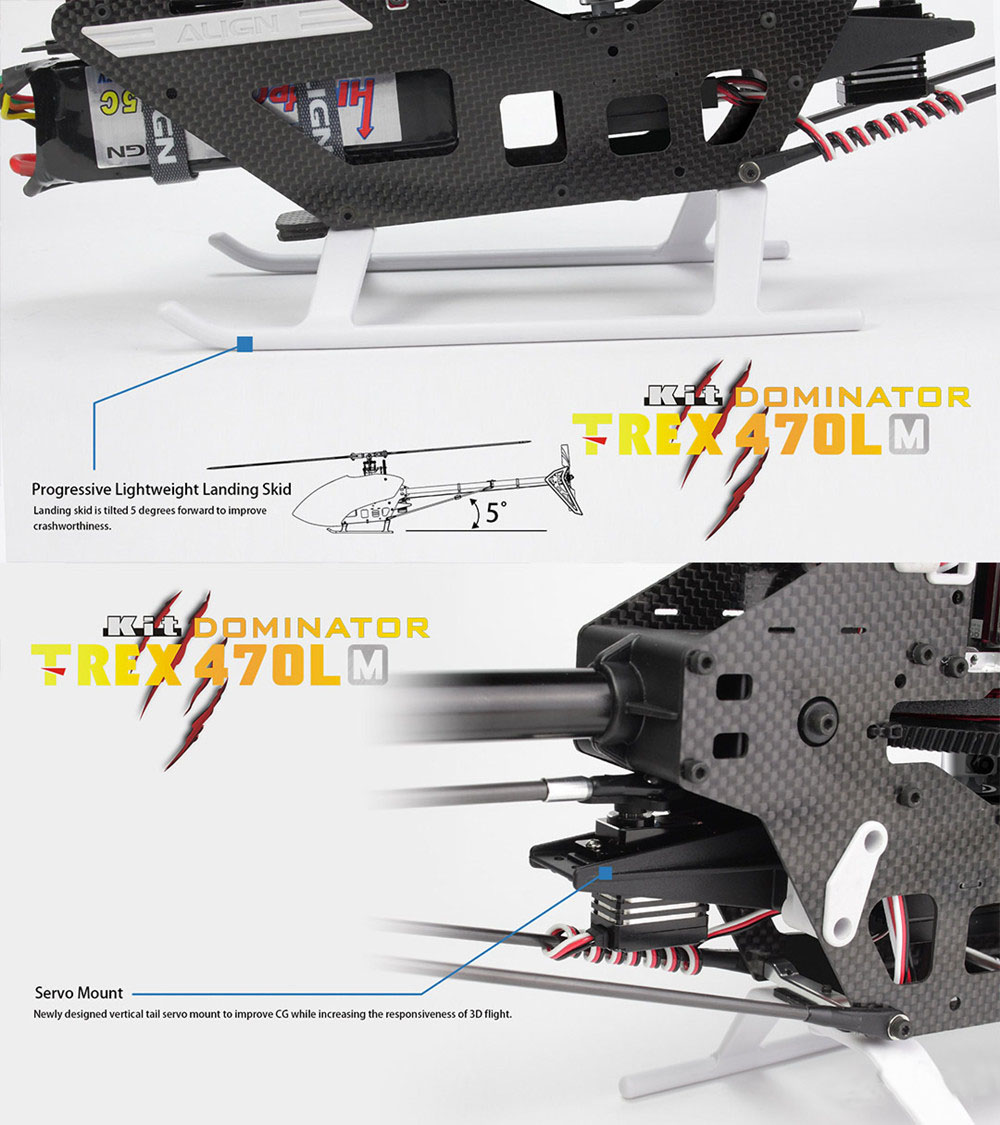

- Landing skid is tilted 5 degrees forward to improve crashworthiness.

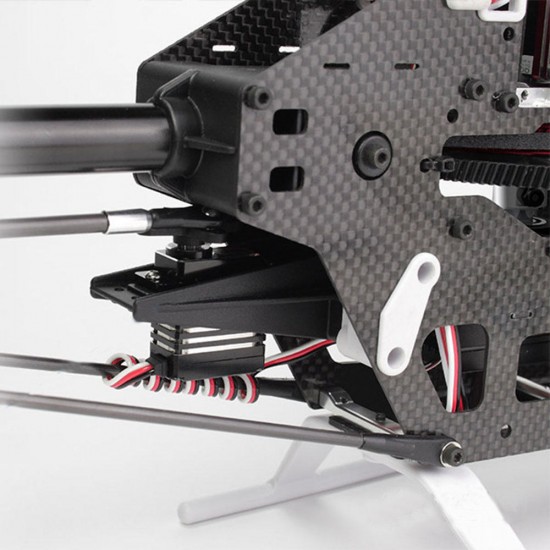

- Newly designed vertical tail servo mount to improve CG while increasing the responsiveness of 3D flight.

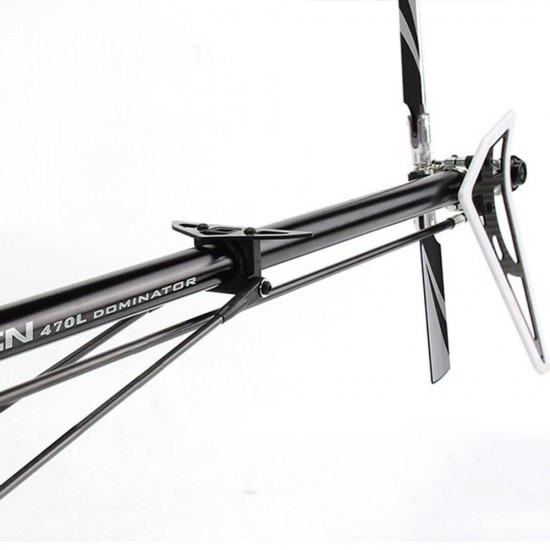

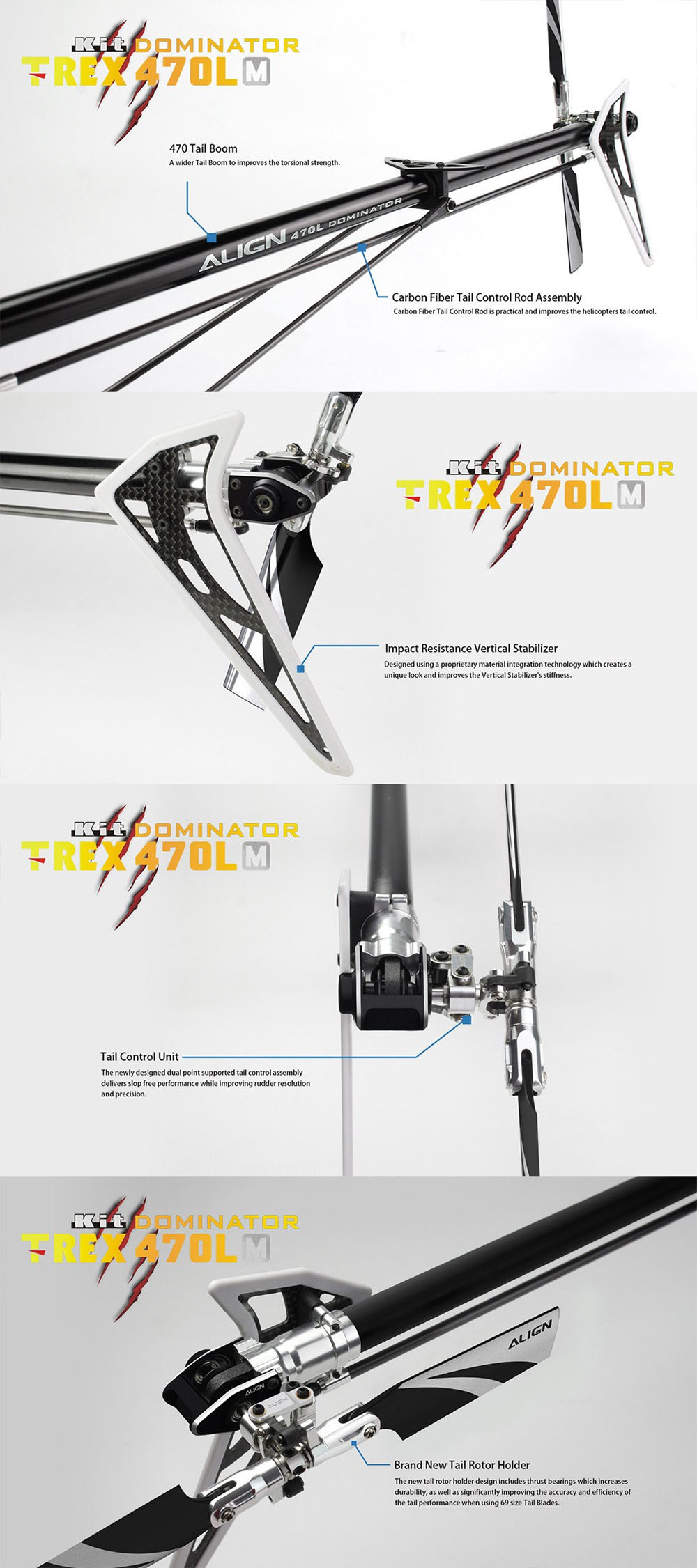

- A wider Tail Boom to improves the torsional strength. Carbon Fiber Tail Control Rod is practical and improves the helicopters tail control.

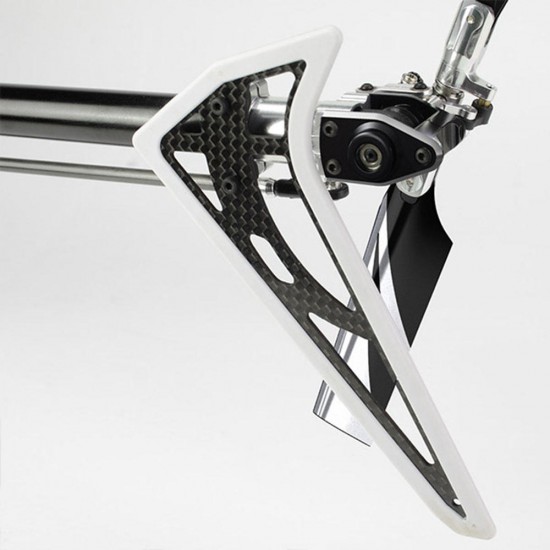

- Designed using a proprietary material integration technology which creates a unique look and improves the Vertical Stabilizer's stiffness.
- The newly designed dual point supported tail control assembly delivers slop free performance while improving rudder resolution and precision.=

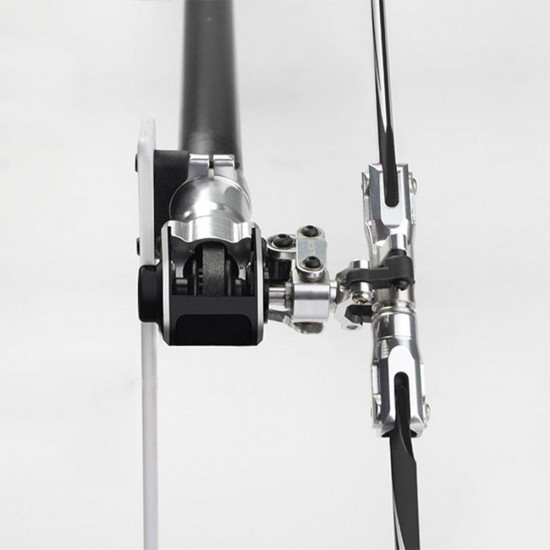

- The new tail rotor holder design includes thrust bearings which increases durability, as well as significantly improving the accuracy and efficiency of the tail performance when using 69 size Tail blade.
ÂÂ
Radio transmitter and electronic equipment required for assembly(not included):
1.Transmitter(6-channel or more,helicopter system)
2.Receiver(6-channel or more)
3.pitch' gauge or Digital pitch' Gauge
4.6S Li-Po 1400~1900mAh battery x 1
5.CCPM Servo X 3
6.Tail Servo X 1
7.Flybarless System x 1
ÂÂ
Note: This is helicopter kit version, only included the helicopter kit, 1pc motor and 1 pc ESC,other electric parts need to prepare by yourself
ÂÂ
Package:
ALIGN T-REX 470LM DOMINATOR RC Helicopter Kit x 1
380 Carbon Fiber Blade x 1 Pair
69 Tail Blade x 1 Pair

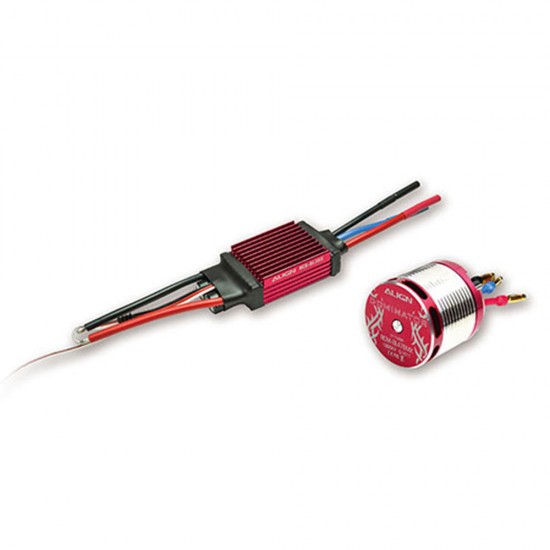

470MX Brushless Motor(1800KV/2818) x 1
RCE-BL50X 50A Brushless ESC x 1
ÂÂ
