DSO338 Handheld Oscilloscope 30MHz Bandwidth 200M Sampling Rate 2.4 Inch IPS Screen 320*240 Resolution Technology Built-in 64M Storage Built-in 3000mah Lithium Battery
- Stock: In Stock
- Model: 1332155
$75.59
Ex Tax: $75.59
Overview:ÂÂ
The most cost-effective oscilloscope in the world. More convenient and reliable.

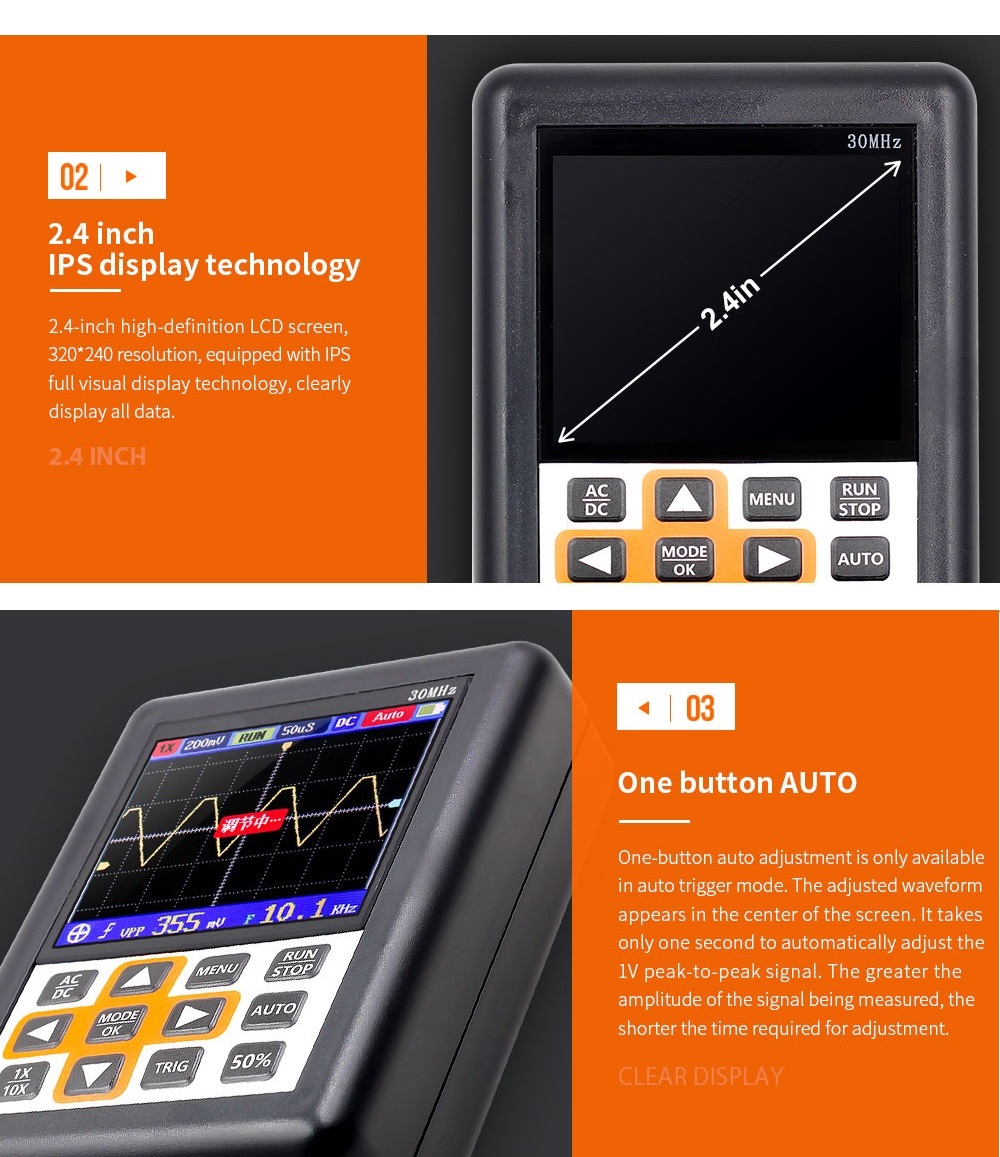

2.4 inch IPS LCD Screen
One Key Auto with complete triggering function
30MHz Bandwidth+200M Sampling Rate
Built in 3000mAh rechargeable lithium battery
Features:
ÂÂ
DSO338 is a full function, high utility, high performance and cost-effective handheld oscilloscope for the maintenance and R & D industries. The oscilloscope has a real-time sampling rate of up to 200MS/s and a 30MHz analog bandwidth. With complete triggering function (single, normal, automatic), both the periodic analog signal and the aperiodic digital signal can be used freely. Large time base scanning mode can monitor slow level changes. Equipped with high efficiency one button AUTO, the measured waveform can be displayed without complicated adjustment. The High Definition LCD screen is a equipped with 2.4 inch 320*240 resolution IPS display, the visual effect is very good while some other oscilloscopes on the market use cheap TN screens. Extremely convenient and fast waveform storage function, built-in 64M storage space, maximum storage of 2000 waveform pictures. Powerful waveform file manager, support for thumbnail browsing, viewing, detail view, flip, delete and other functions. Built in 3000mAh rechargeable lithium battery can be continuously charged for 10 hours operation at one time.Day mode and night mode can be changed according to their own preferences.
ÂÂ
1:Memory compression technology, waveform refresh screen does not flicker
2:Afterglow display technology
3:2.4 inch color display screen with IPS technology
4:30MHz analog bandwidth @ 200MS/s sampling rate
5:Fast waveform storage
6:Built-in 64M storage space, the maximum storage of 2000 waveform pictures

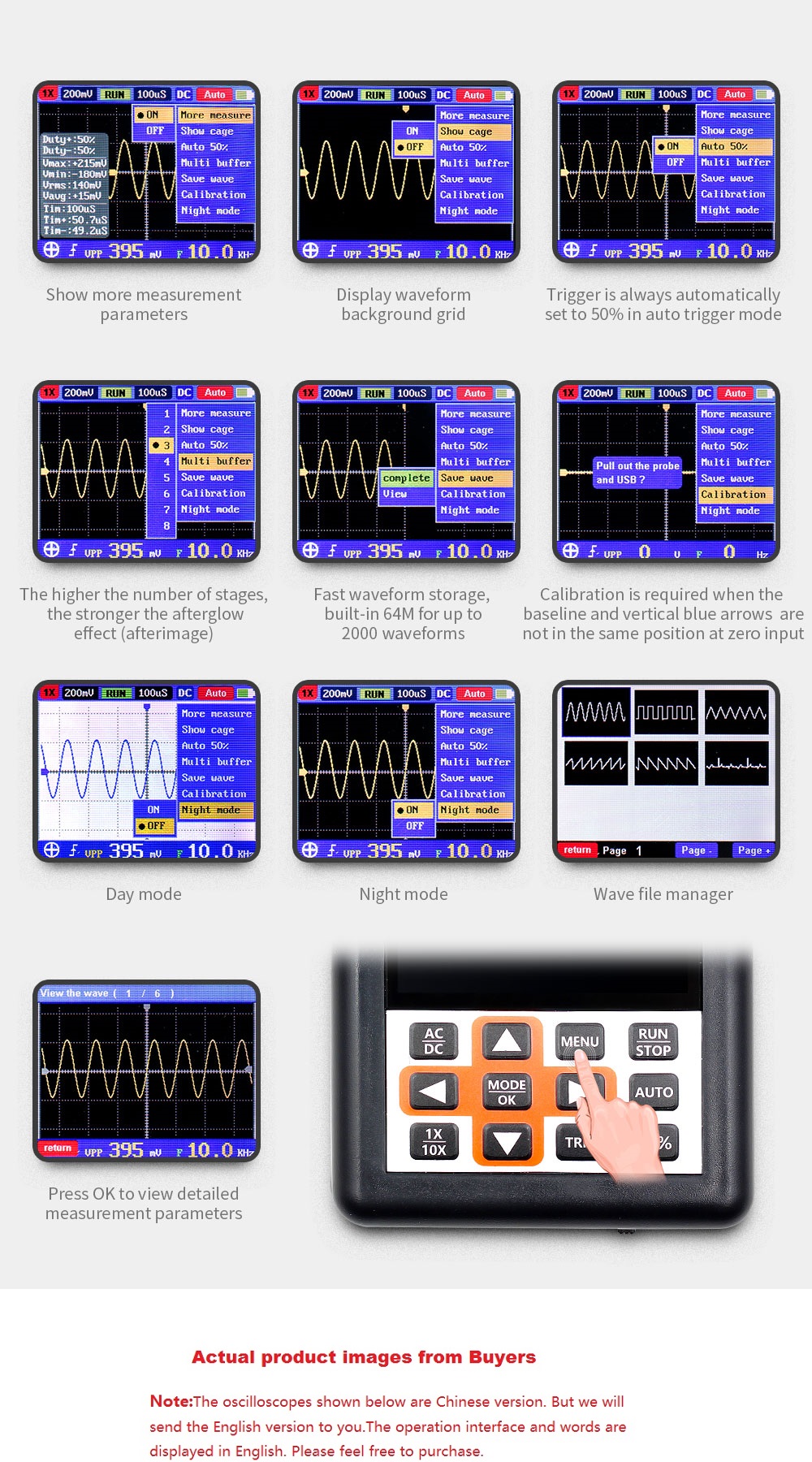

7:Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions

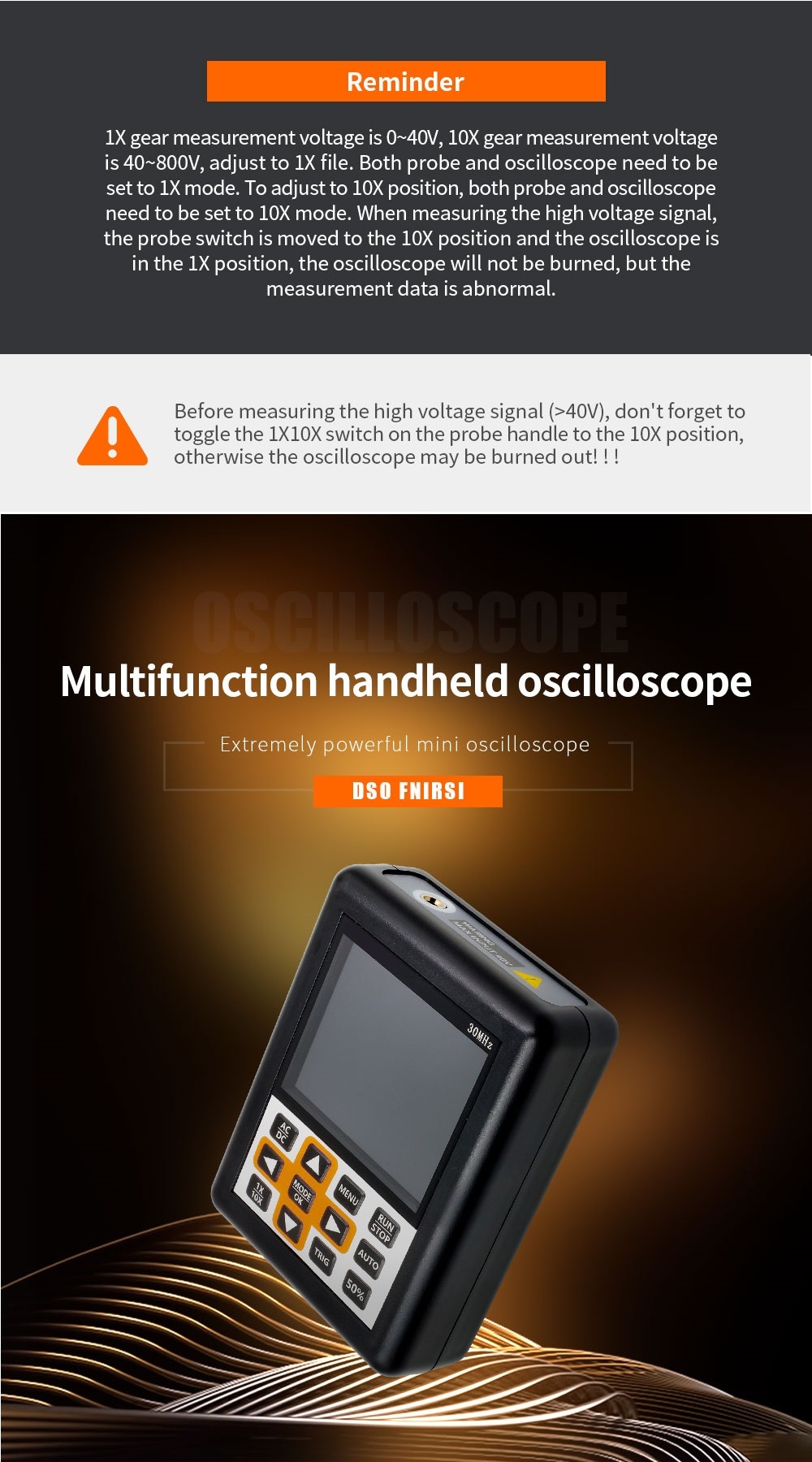

8:High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 40 ~ 800V
9:Up to 11 parameters measurement:VPP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Time
10:At any time, the waveform display (pause function) is frozen
11:Equipped with high efficiency one button AUTO
12:Complete triggering function (single, normal, automatic)
13:Built in 3000mAh rechargeable lithium battery can be continuously charged for 10 hours at one time
14:Day mode and night mode
15:Ultra small volume, easy to carry
ÂÂ
Specifications:
1:Analog band width: 30MHz
2:Maximum real time sampling rate: 200MS/s
3:Vertical sensitivity: 50 mV/div ~ 200 V/div
4:Horizontal time base range: 100mS/div ~ 125nS/div
5:Maximum input voltage: 40 V (1X probe), 800 V (10X probe)
6:Storage depth: 128KB
7:Input resistance: 1M
8:ADC precision: 8bits
9:Coupling mode: AC/DC
10:Trigger mode: Single, Normal, Automatic
11:Trigger edge: Ascending/descending edge
12:External trigger voltage 0 – 40 V
13:Display: 2.4 inch - IPS - 320*240
14:Power supply: 3000 mAh lithium battery

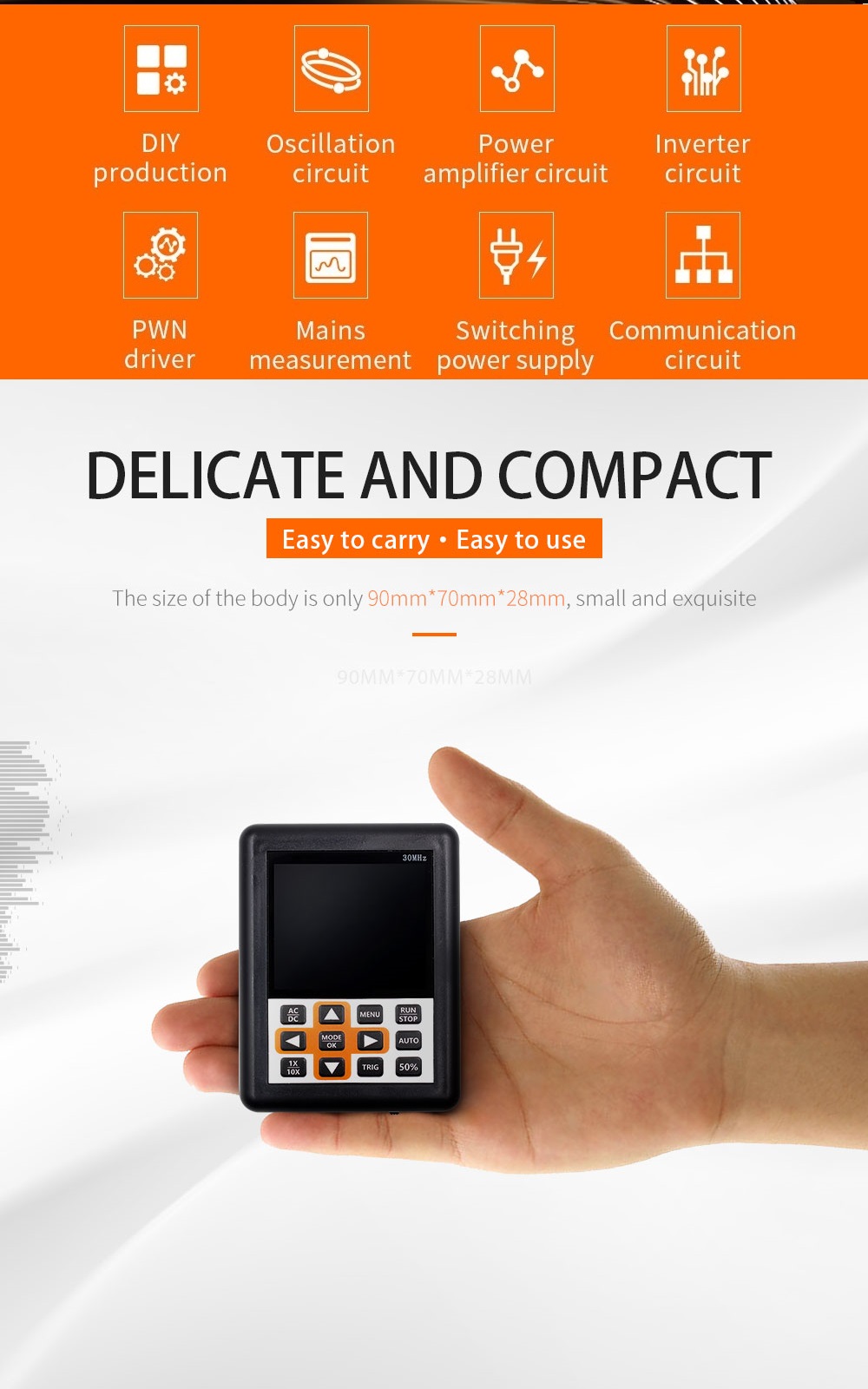

15:Size: 90 x 70 x 28 mm
16:Weight: 200g
ÂÂ
Package includes:
1 x DSO-FNIRSI oscilloscope host
1 x Matching Special probe(1X and 10X)
1 x Micro USB data line
1 x User manual (English)

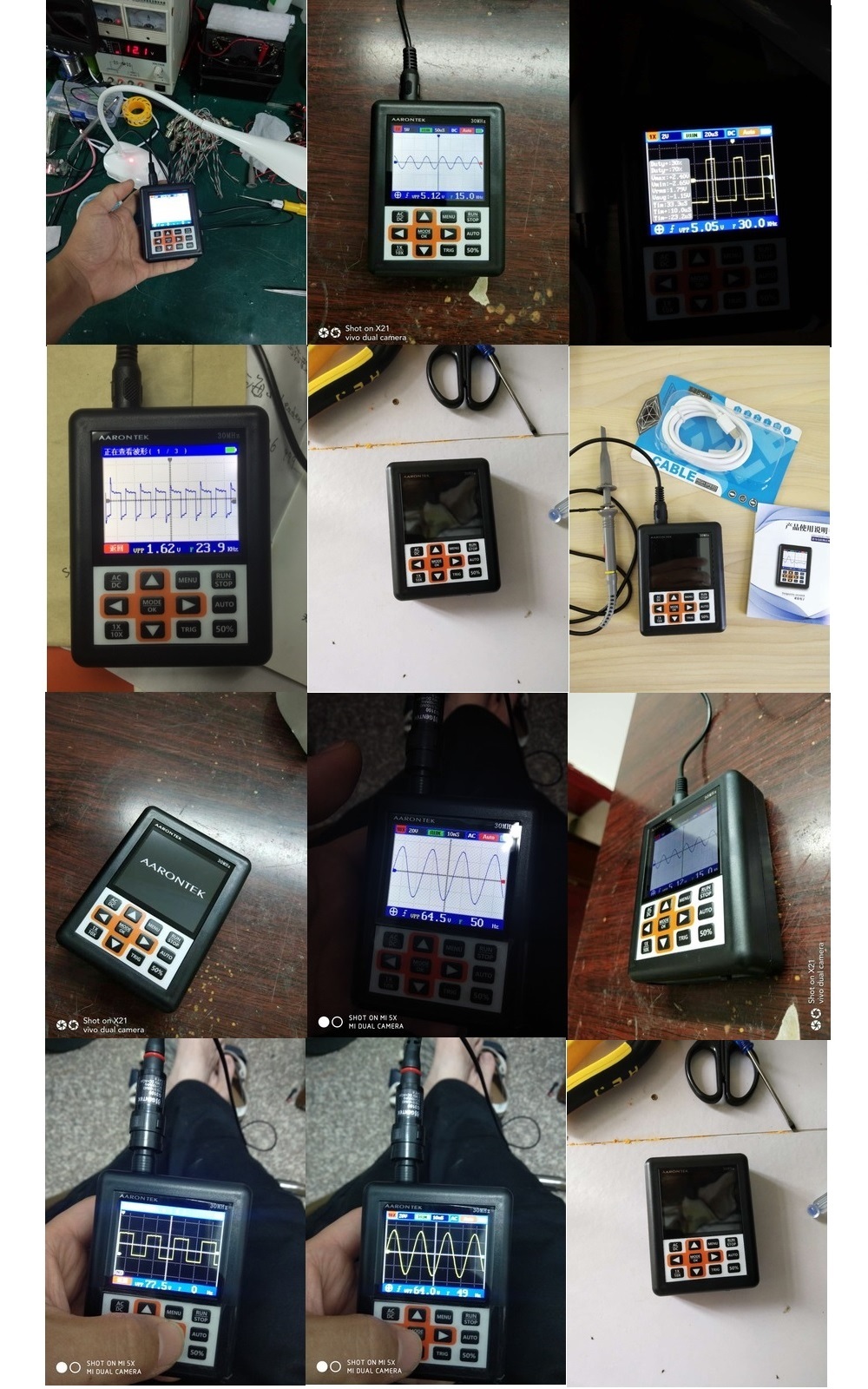

Details Pictures:
