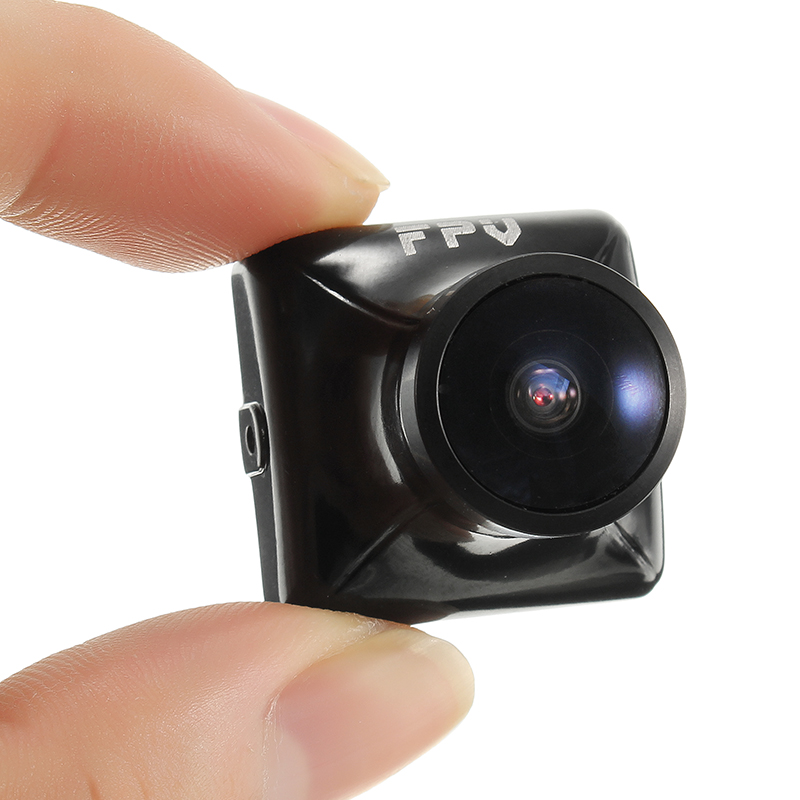

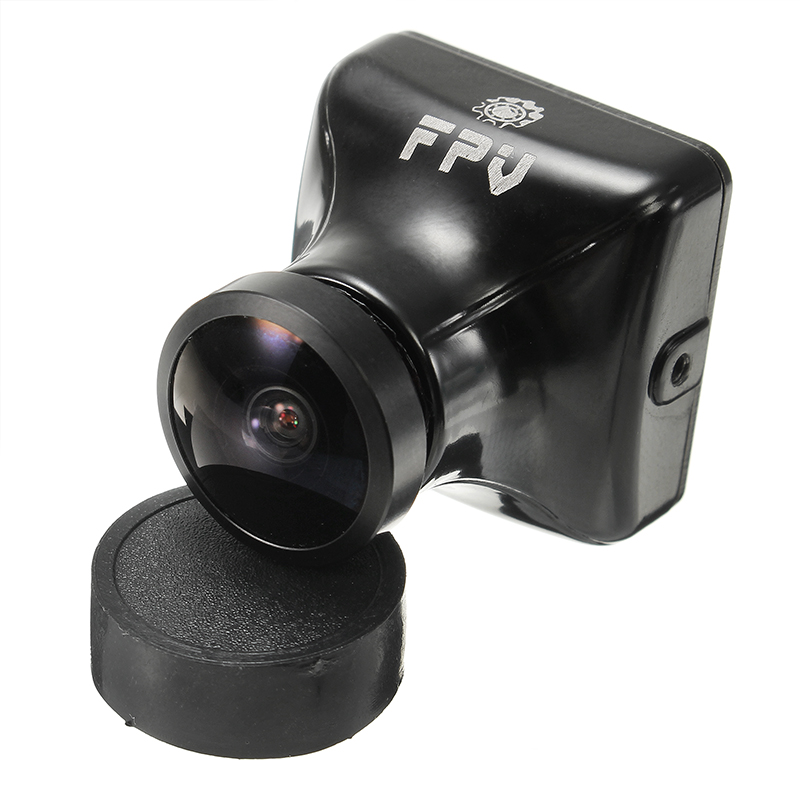

Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone

Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
Eachine C800T 1/2.7 CCD 800TVL 2.5mm 150 Degree Camera with OSD DC5V-15V NTSC PAL For RC Drone
  • Stock: In Stock
  • Model: 1171324
$22.09
Ex Tax: $22.09







Eachine C800T 1/2.7 CCD 800TVL 2.5mm Camera with OSD Button DC5V-15V NTSC PAL Switchable
Eachine-C800T-127-CCD-800TVL-25mm-150-Degree-Camera-with-OSD-DC5V-15V-NTSC-PAL-For-RC-Drone-1171324Eachine-C800T-127-CCD-800TVL-25mm-150-Degree-Camera-with-OSD-DC5V-15V-NTSC-PAL-For-RC-Drone-1171324Eachine-C800T-127-CCD-800TVL-25mm-150-Degree-Camera-with-OSD-DC5V-15V-NTSC-PAL-For-RC-Drone-1171324Eachine-C800T-127-CCD-800TVL-25mm-150-Degree-Camera-with-OSD-DC5V-15V-NTSC-PAL-For-RC-Drone-1171324
Description
Product manual
Model FPV cameras
Image Sensor 1/2.7"micron CCD  Four unity
Horizontal Resoulution D1 960H
Lens 2.5mm, FOV 150 °, M12
Video formats PAL/NTSC  (OSD Internal adjustable)
Signal to noise ratio >60Db(AGC OFF)
Electronic shutter PAL: 1/50-100.000, NTSC:1/60-100,000
Ratio 16:9
Automatic gain control YES
Backlight compensation YES
Intensity of illumination 0.001Lux/1.2F
Automatic gain control adjustable
Backlight compensation adjustable
Power DC5V-15V
Net weight 15g
Dimensions 25mm*25mm

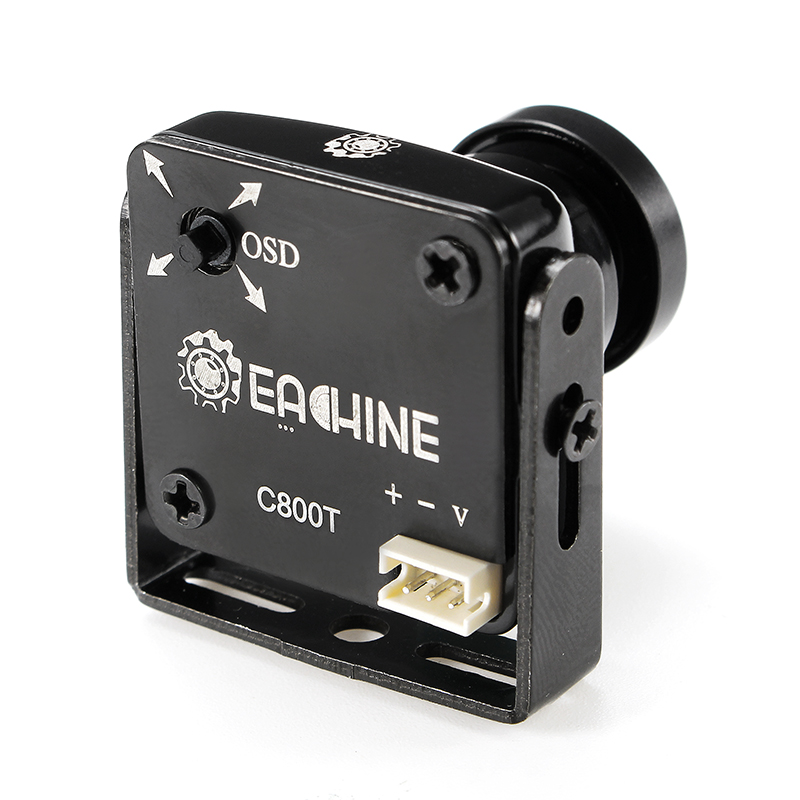

                                    OSD
exposure Electronic shutter/automatic gain control/brightness/digital wide dynamic
Backlight model Close/backlight compensation/light inhibition
The white balance Automatic tracking the white balance
Day and night mode Internal auto/color/black and white mode
Video Settings contrast/ sharpness / saturation / Digital noise reduction / Digital wide dynamic
language Chinese/English/German/Italian/Russian
Restore the factory Settings OK
Save the exit OK
 Screw : PW M2*6 , PW M2*3
Cable : JST-ZH 1.5mm 3P  to TJC8 3P


Video Mode:AHD-H/TVI/CVI/CVBS
FPV use CVBS only, you can long press the
button to left bottom to switch modes, long press right bottom for configaration, and press middle to submit.

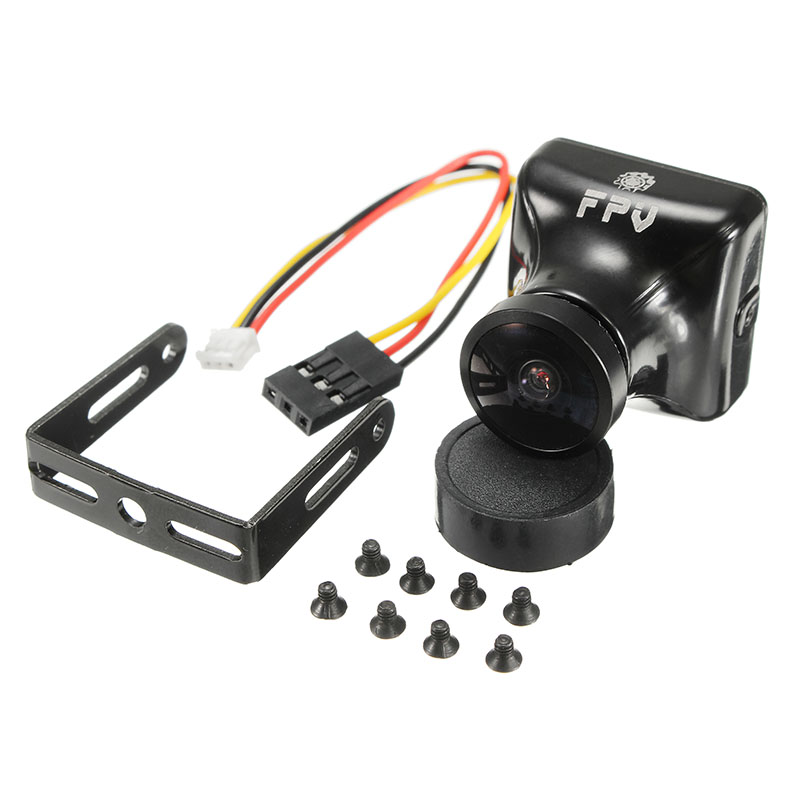

Included
1 x Eachine C800T Camera
1 x JST-ZH to TJC8 3P Cable
1 x Bracket
8 x Screw
