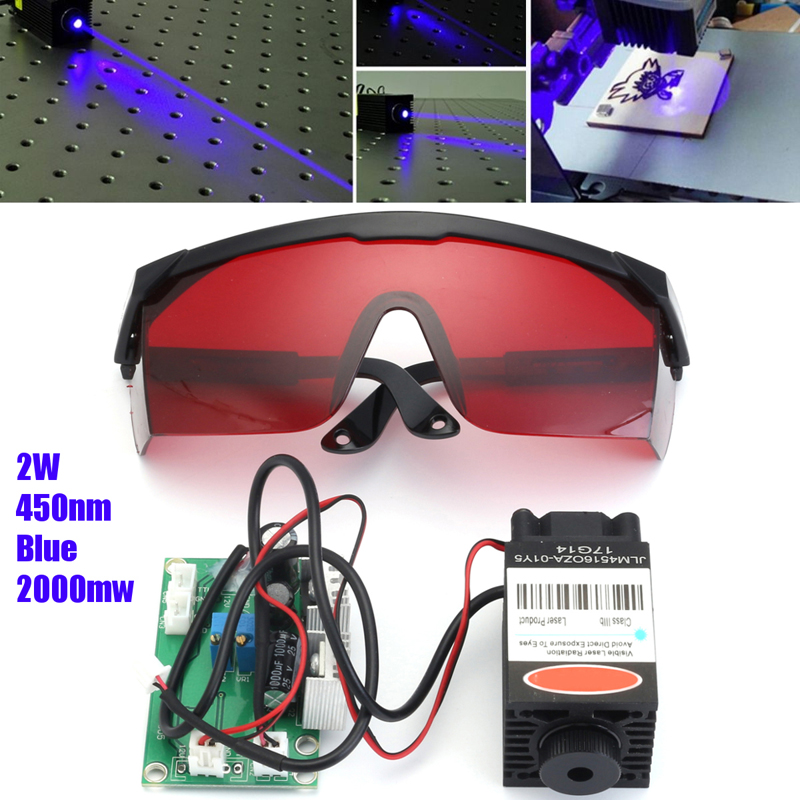

Powerful 2W 445nm 450nm Blue Laser Diode Module 2000mw Engraver with 405nm Goggles

Powerful 2W 445nm 450nm Blue Laser Diode Module 2000mw Engraver with 405nm Goggles
Powerful 2W 445nm 450nm Blue Laser Diode Module 2000mw Engraver with 405nm Goggles
Powerful 2W 445nm 450nm Blue Laser Diode Module 2000mw Engraver with 405nm Goggles
Powerful 2W 445nm 450nm Blue Laser Diode Module 2000mw Engraver with 405nm Goggles
Powerful 2W 445nm 450nm Blue Laser Diode Module 2000mw Engraver with 405nm Goggles
Powerful 2W 445nm 450nm Blue Laser Diode Module 2000mw Engraver with 405nm Goggles
Powerful 2W 445nm 450nm Blue Laser Diode Module 2000mw Engraver with 405nm Goggles
Powerful 2W 445nm 450nm Blue Laser Diode Module 2000mw Engraver with 405nm Goggles
Powerful 2W 445nm 450nm Blue Laser Diode Module 2000mw Engraver with 405nm Goggles
Powerful 2W 445nm 450nm Blue Laser Diode Module 2000mw Engraver with 405nm Goggles
Powerful 2W 445nm 450nm Blue Laser Diode Module 2000mw Engraver with 405nm Goggles
Powerful 2W 445nm 450nm Blue Laser Diode Module 2000mw Engraver with 405nm Goggles
Powerful 2W 445nm 450nm Blue Laser Diode Module 2000mw Engraver with 405nm Goggles
Powerful 2W 445nm 450nm Blue Laser Diode Module 2000mw Engraver with 405nm Goggles
Powerful 2W 445nm 450nm Blue Laser Diode Module 2000mw Engraver with 405nm Goggles
Powerful 2W 445nm 450nm Blue Laser Diode Module 2000mw Engraver with 405nm Goggles
Powerful 2W 445nm 450nm Blue Laser Diode Module 2000mw Engraver with 405nm Goggles
  • Stock: In Stock
  • Model: 1184765
$83.99
Ex Tax: $83.99







Specifications:
Material: Plastic, Aluminum TTL
Goggles color: Red
Output Power: 2W
Wave Length 445nm-450nm
Working Voltage: 12v
Operating current: 2A
TTL 0-5V ,0-50KHz
Minimum spot less than: 0.5mm
Laser Shape: Dot
Focusable: Yes
Waterproof: N/A
Operating temperature: -0 ℃ ~ + 70 ℃
Storage temperature: -40 ℃ ~ + 85 ℃

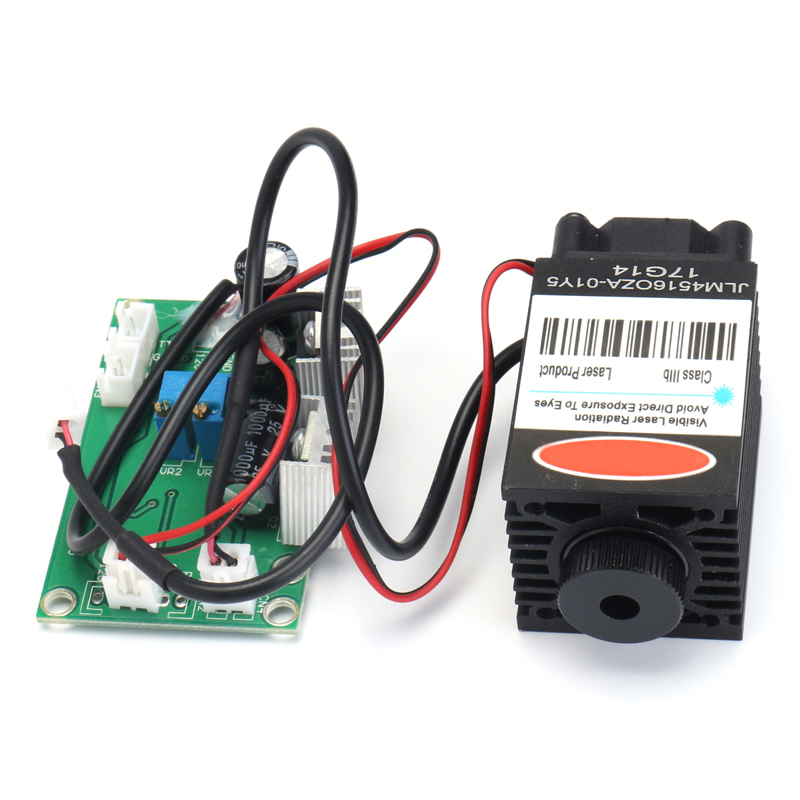

Structural features: laser tube + lens + sinker housing

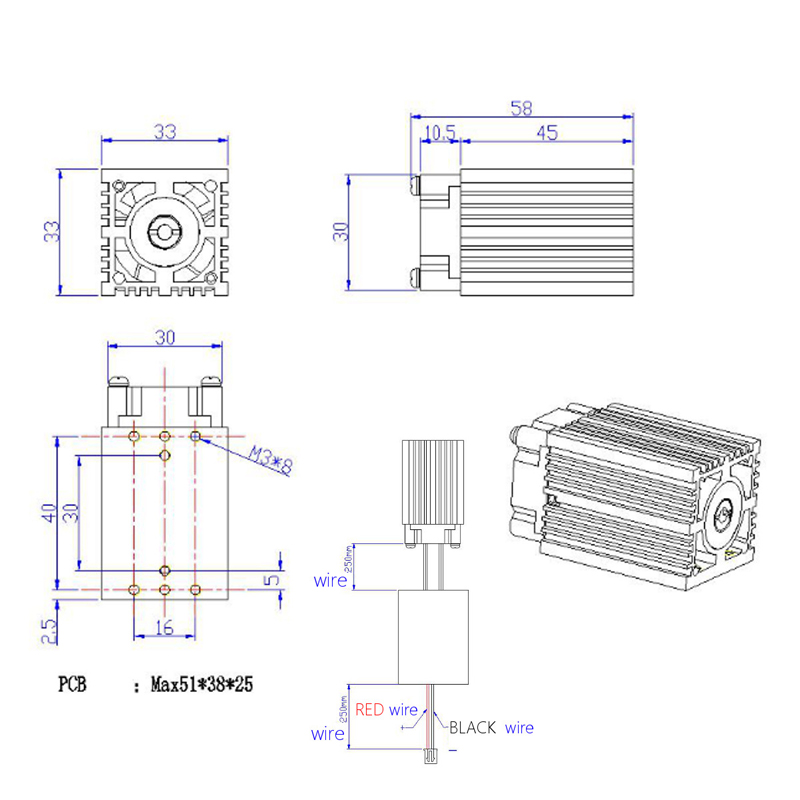

Dimensions: 33x33x55mm
Wire Length: 25cm/9.8"
Irradiation Distance: 8m/315"

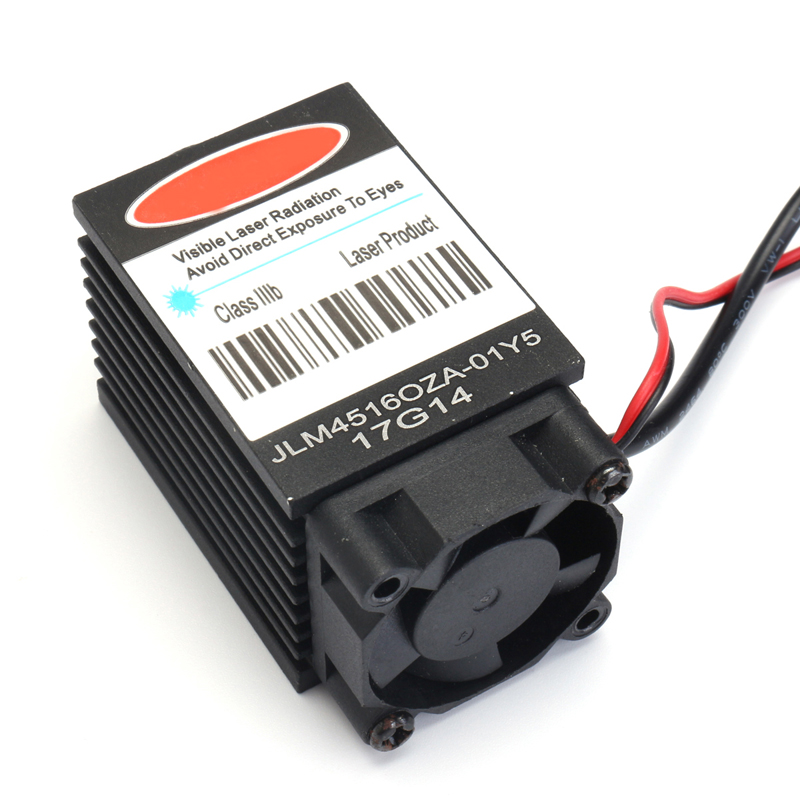

Cooling The heat sink and fan Lens Glass Function
Black "-" red "+" Laser module

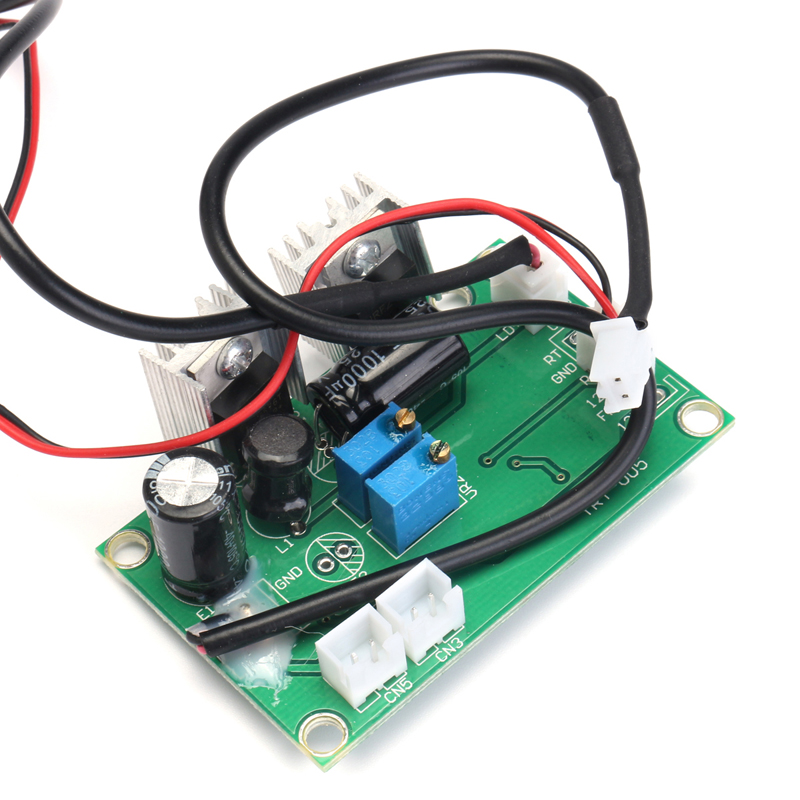

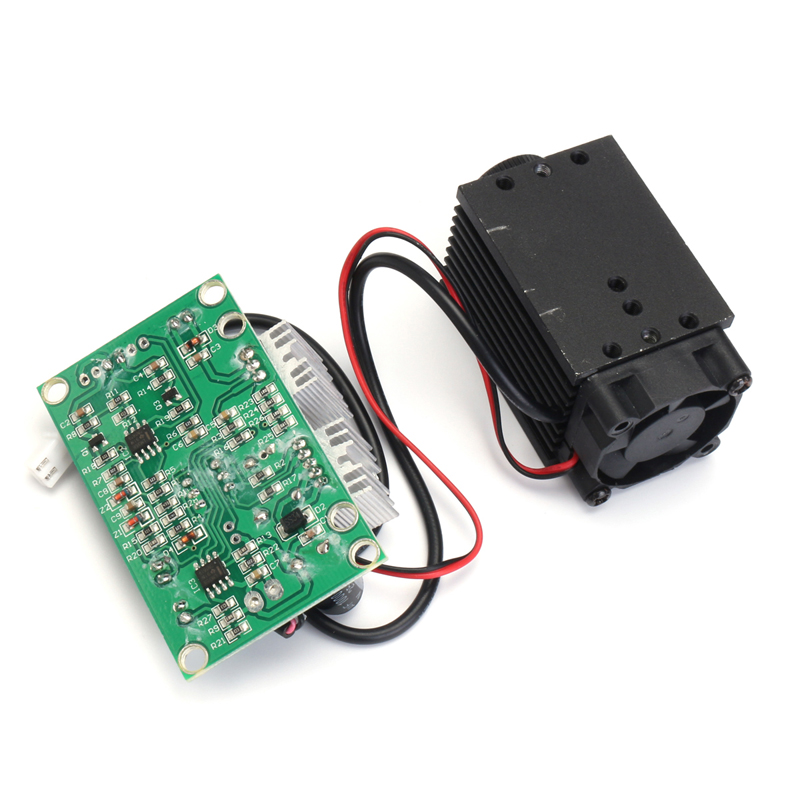

Driver board Size: 100 * 40 * 40mm Size 101 * 46 * 42mm (including fan)
Lightspot Size: <15mm
Service Life: 8000H

Features and Benefits:
● The power supply is external
● The input voltage for this laser is 12V, working voltage >12v can cause damage to the circuit and laser instantly, if you have any technical problems, please contact us!
● Please protect your eyes before 450nm Red ray!
● This laser module brings TTL modulation, can work long time, is really industry laser module!!
● Please wear 450nm laser protection goggles when you work on it.
● Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.
● Aircraft aluminum TTL driver board with cooling fan ensure long working time continuously.

Notice:
1.The laser light emitted by laser module is likely to injure persons'eye, so do not directly gaze its end surface and  wear appropriate safety glasses to prevent laser light when it is working.
2. Laser module need appropriate laser driver(PCB). When laser module connect with power supply, please set the output voltage to zero.  The adjustment of current should be slowly increase or decrease to avoid damaging the device.
3. Keep the device working or storing in dry environment.
4.Working at high temperatures will increase the threshold current, reduce conversion efficiency and speed up the aging of the device.
5. When output power is higher than it's specific parameter of operation, it will accelerate the aging of the device.
6. When the operation temperature of laser diode is over 70degree, please do well heat dissipation of it.
7. This laser module is electrostatic sensitive device. Please make sure ground yourself or wear an antistatic wrist strap before you take it

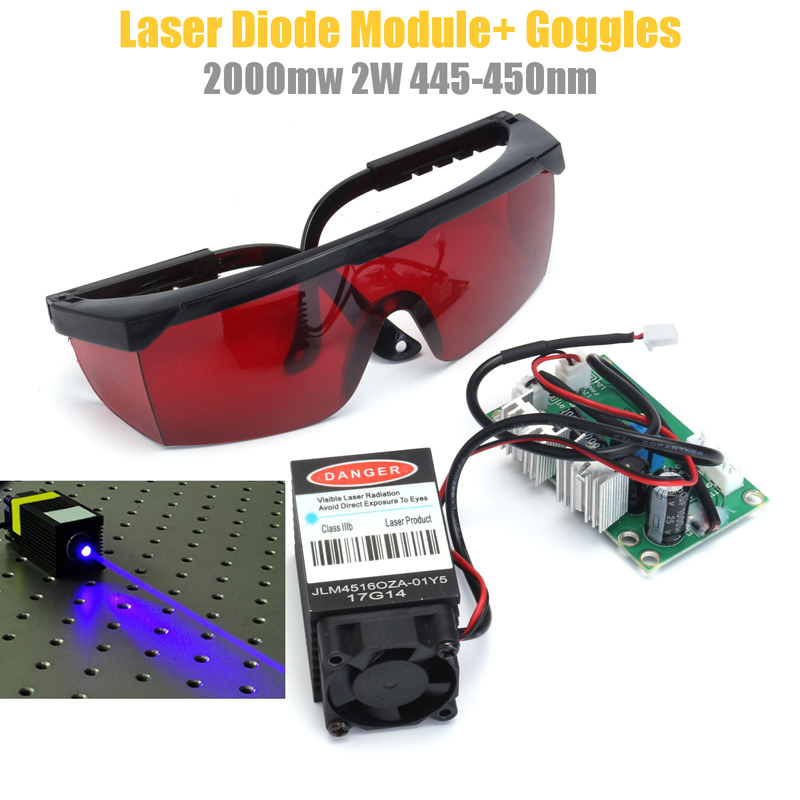

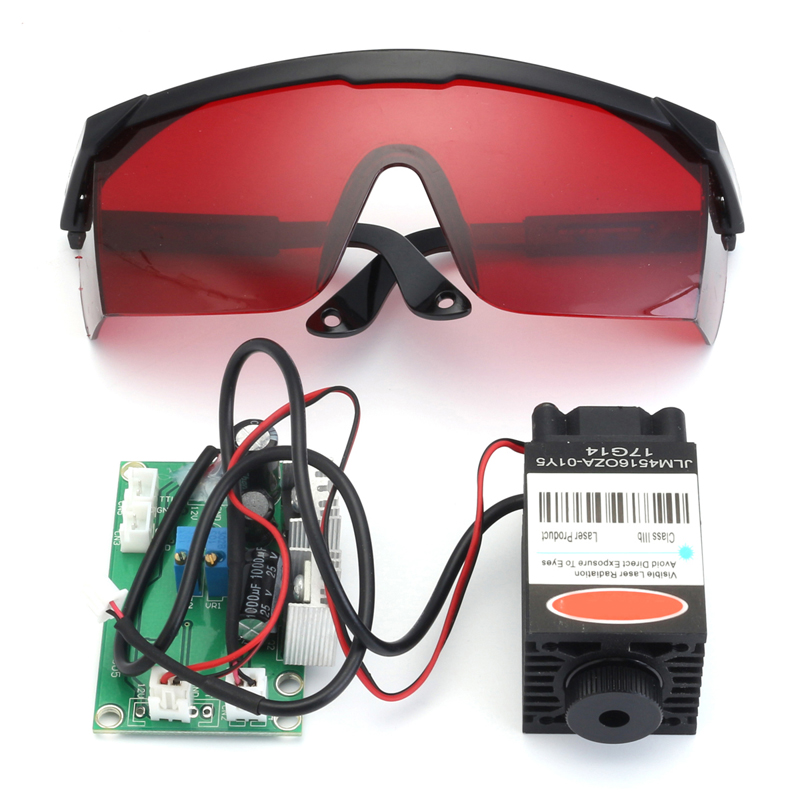

Package Included:
1 x Powerful 2W 445nm 450nm Red Laser Diode Dot Module 2000mw Engraver
1 x 405nm Goggles
