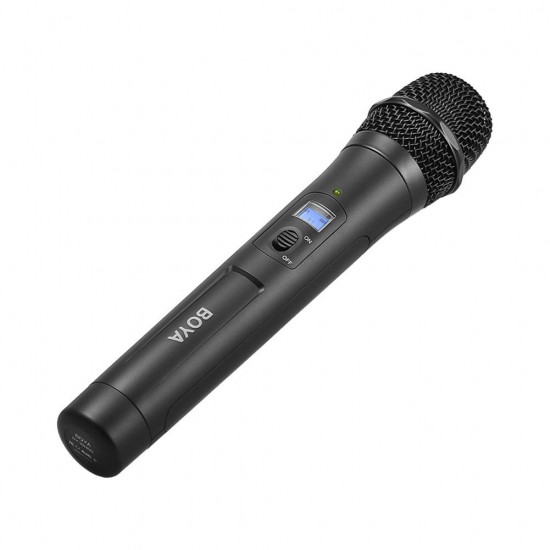

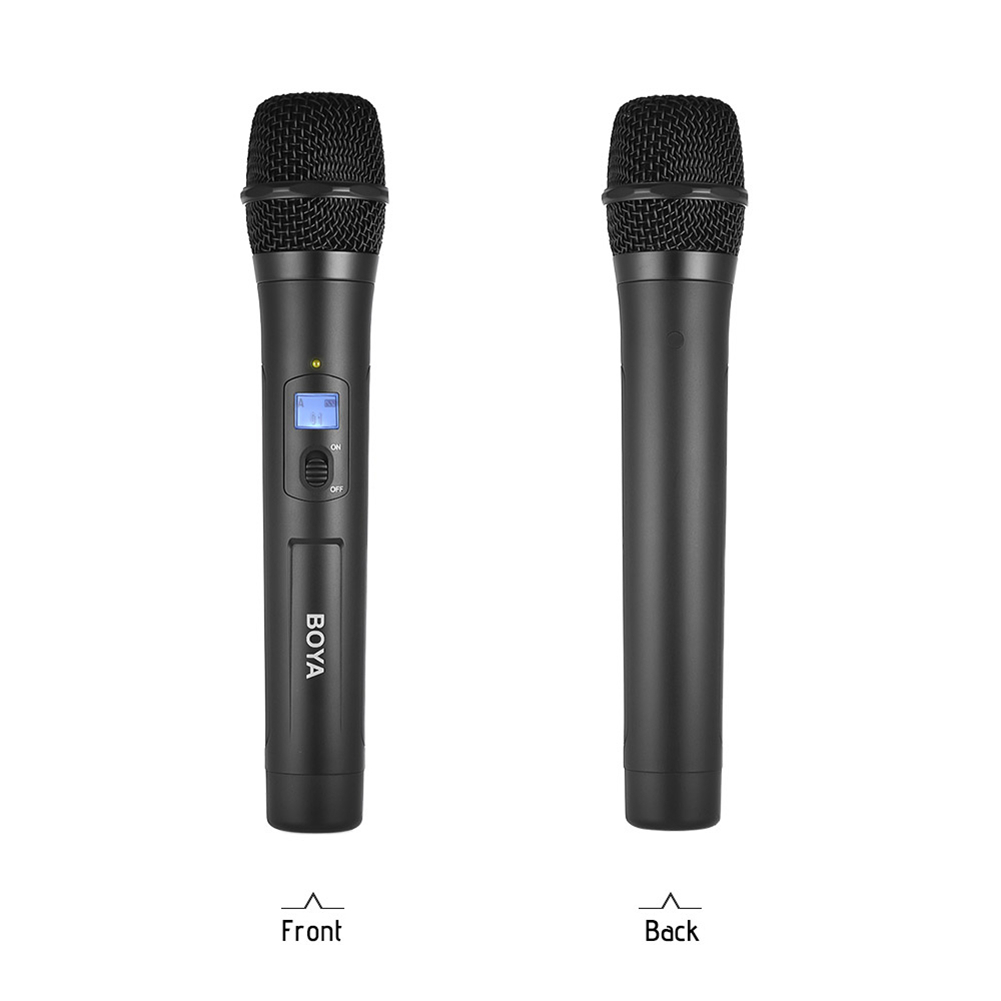

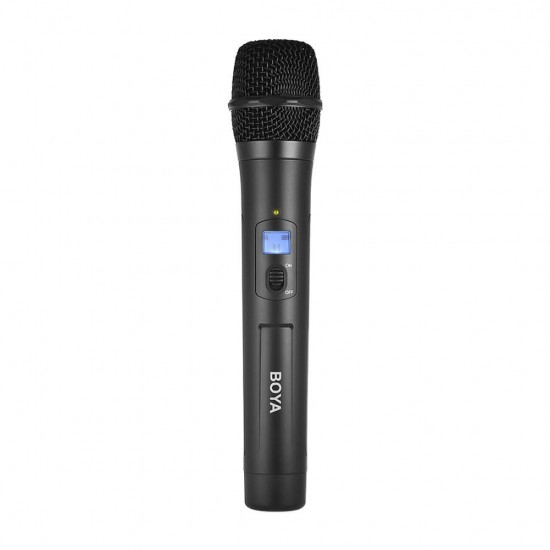

The BOYA BY-WHM8 is a Wireless handheld transmitter with a dynamic, cardioid capsule, suitable for BOYA BY-WM6 and BY-WM8 wireless receiver. The BOYA BY-WHM8 provides professional, portable wireless operation in the 24MHz band, is easy to operate and affordable. It features an easy to read LCD display, easy one-touch channel search and lightweight plastic housing.
The BY-WXLR8 Plug-On XLR Transmitter for BOYA BY-WM6 and BY-WM8 UHF Wireless Mic System. Allows you to connect any XLR microphone the the BY-WM6 and BY-WM8 wireless receiver. It features an easy to read LCD display, a wide switching RF bandwidth, a Mic/Line/MIX switchable inputs, and digital circuitry, rugged lightweight plastic housing, and it’s suitable for DSLR cameras for videography, field recording, broadcast TV, and electronic news gathering (ENG) applications.
UHF frequencies for interference-free reception.

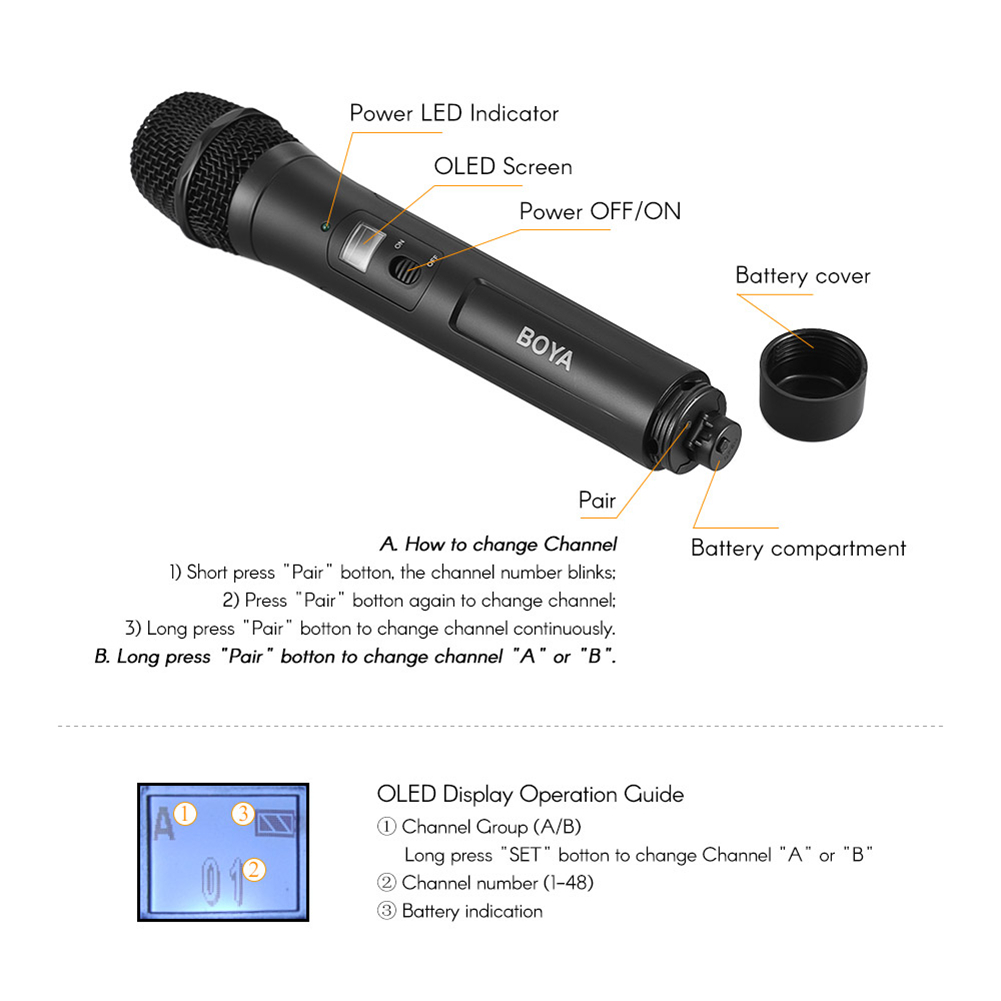

It features an OLED display with information on level, battery status, mute, and channel selection.
24 MHz bandwidth.
Power the transmitter via AA batteries, rechargeable NiMH batteries.
The pilot tone control enables you to maintain the integrity of your audio and avoid bothersome interference.

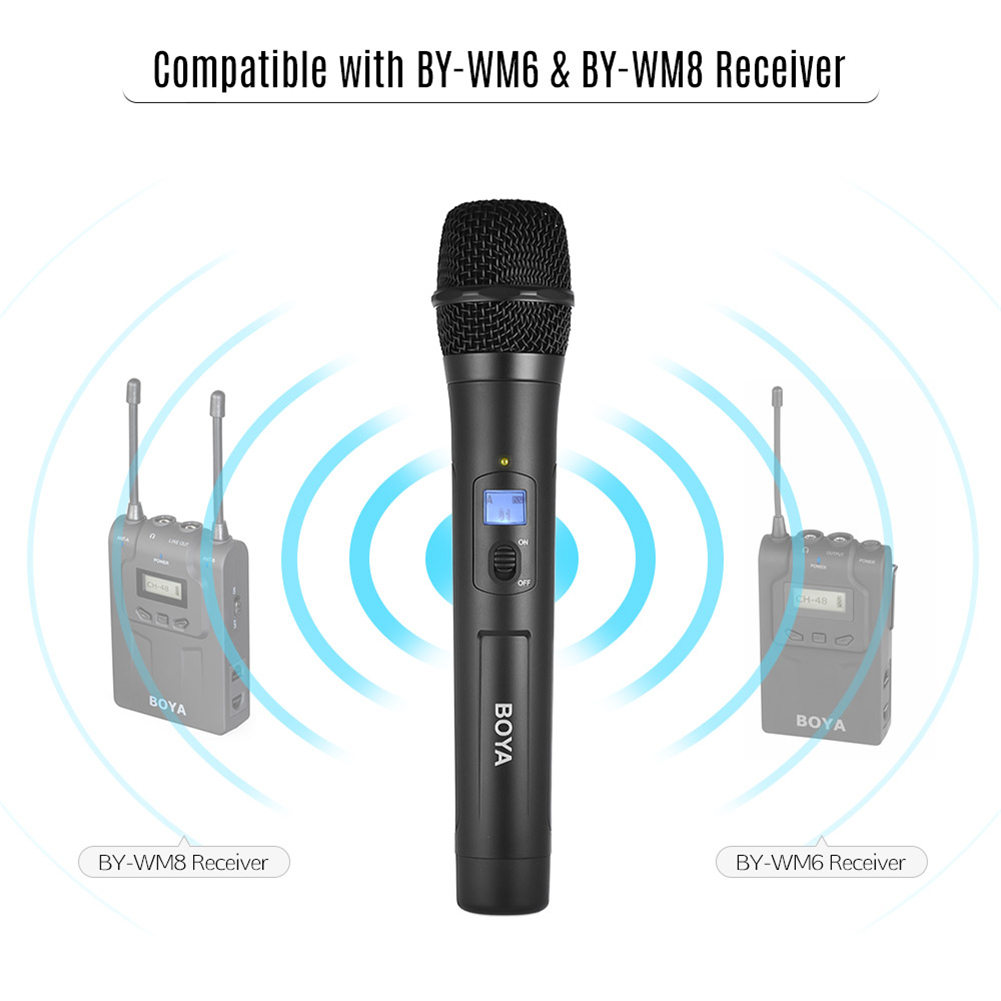

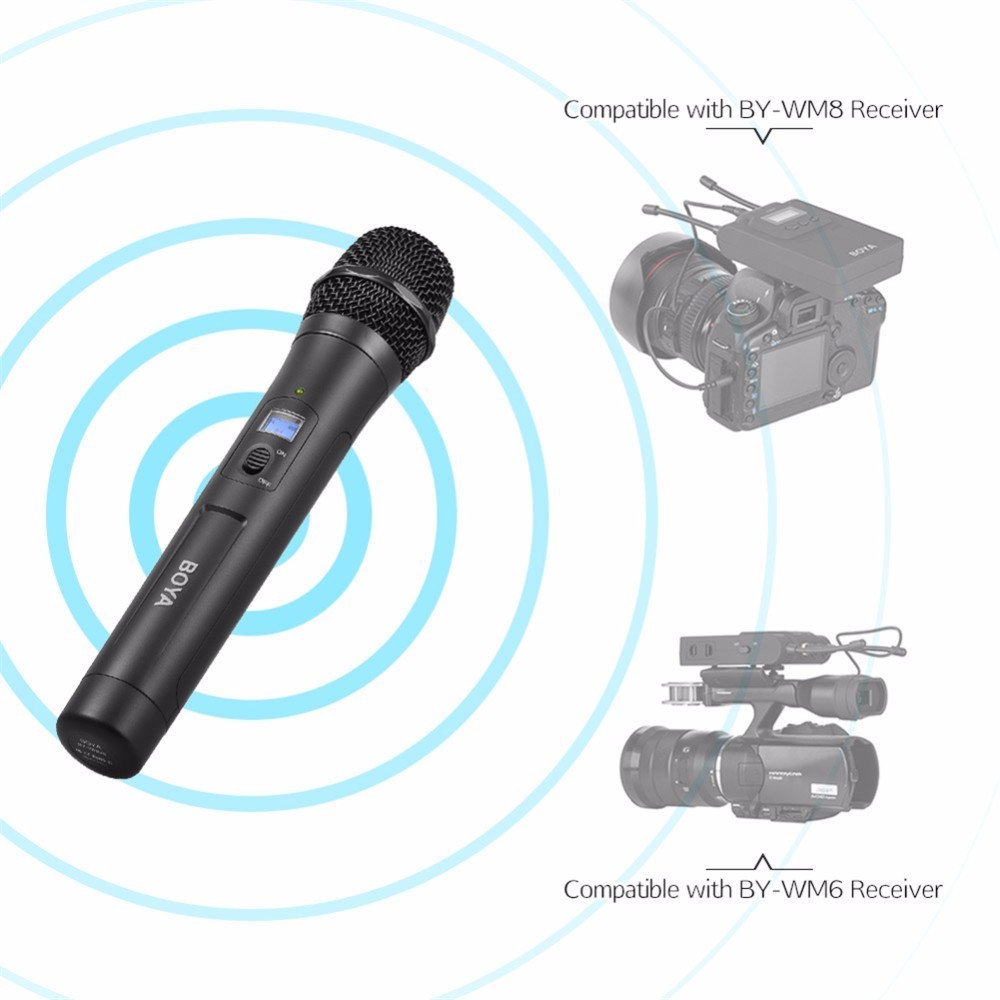

Compatible with BY-WM6 and BY-WM8 receiver.
User-friendly menu operation with more control options.
ÂÂ
Specifications:
ÂÂ
Brand: BOYA
Model: BY-WHM8
Oscillator Type: PLL Synthesized Control Oscillator
Channel Group: A or B
Carrier Frequency Range: 576.4MHz-599.9MHz (Channel Group: A); 568.6MHz-592.1MHz (Channel Group: B)
RF Output Power: ≤10 mW
Signal-to-Noise Ratio: 80 dB
Antenna: flexible
Spurious Emission: 250nW or less
Audio Input Connector: 3.5mm/ 0.14in mini jack
Audio Input Level: 600mV-2000mV
Reference Deviation: ±7KHz (-60dBV, 1 KHz input)
Input Frequency Range: 20Hz~20 KHz
Power Supply: 2pcs AA batteries (not included)
Operation Time: about 6 hours
Operation Range: about 100m (without obstacle)
Item Size: about 25.6 x 5.3 x 5.3cm / 10.1 x 2.1 x 2.1in
Item Weight: about 259g / 9.1oz (without batteries)
Package Size: about 30 x 10.5 x 6cm / 11.8 x 4.1 x 2.4in
Package Weight: about 527g / 18.6oz
ÂÂ
Package Included:
ÂÂ

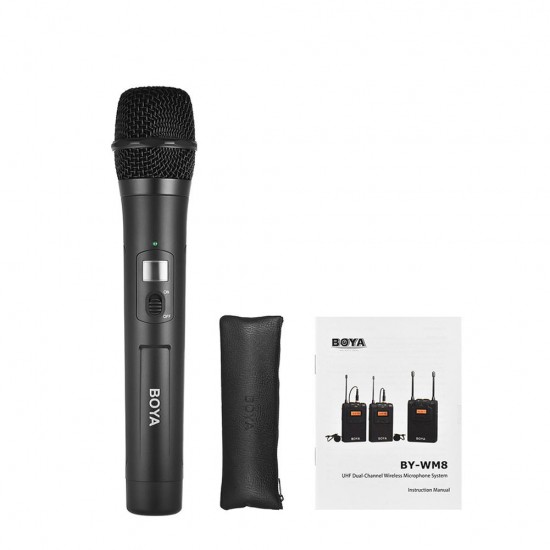

1 x BY-WHM8 Wireless Microphone
1 x Pouch for Microphone
1 x User Manual
(The batteries are not included.)
