LW1650 Portable Shortwave Antenna 1.6-50 MHz Radio Tuner

LW1650 Portable Shortwave Antenna 1.6-50 MHz Radio Tuner
LW1650 Portable Shortwave Antenna 1.6-50 MHz Radio Tuner
LW1650 Portable Shortwave Antenna 1.6-50 MHz Radio Tuner
LW1650 Portable Shortwave Antenna 1.6-50 MHz Radio Tuner
LW1650 Portable Shortwave Antenna 1.6-50 MHz Radio Tuner
LW1650 Portable Shortwave Antenna 1.6-50 MHz Radio Tuner
LW1650 Portable Shortwave Antenna 1.6-50 MHz Radio Tuner
LW1650 Portable Shortwave Antenna 1.6-50 MHz Radio Tuner
LW1650 Portable Shortwave Antenna 1.6-50 MHz Radio Tuner
LW1650 Portable Shortwave Antenna 1.6-50 MHz Radio Tuner
LW1650 Portable Shortwave Antenna 1.6-50 MHz Radio Tuner
LW1650 Portable Shortwave Antenna 1.6-50 MHz Radio Tuner
LW1650 Portable Shortwave Antenna 1.6-50 MHz Radio Tuner
LW1650 Portable Shortwave Antenna 1.6-50 MHz Radio Tuner
LW1650 Portable Shortwave Antenna 1.6-50 MHz Radio Tuner
  • Stock: In Stock
  • Model: 1359620
$29.31
Ex Tax: $29.31







Features:

Portable wire antennas is a simple suite, contains all the necessary components. Is a simple and effective rapid deployment of shortwave antenna. With light weight, small size, easy to carry and set up easily. It is widely used in short wave, medium wave of duty to listen to and QRP radio emission. Suitable for camping, emergency communications, and other places of temporary construction. (if you want to permanently fixed construction need to strengthen the strength of the anchor and waterproof Balun)
Components include the antenna is about 16.2 meters of insulated copper wire (antenna vibrator), 12 meters of wire rope (two volumes), 9:1 Balun, 6 meters of 50 euro coaxial feeder and a SMA BNC connector.
This simple installation without welding. The height of antenna erection as high as possible. Need to stay away from buildings, trees or other large objects. The ideal erection site need a space of about 25 meters. If the space is small, can trim excess traction rope, but in the antenna oscillator and the ends of the support structure, each side shall not be shorter than 1 meter (3 to 4 feet). If it's too long, can shorten the antenna oscillator. But it will reduce the efficiency of the antenna.
Frequency range: 1.6 to 50 MHz
50 Ω impedance:
Power: QRP < 5 watts
Polarization mode: level
Radiation direction: omnidirectional
Interface: SMA/BNC
Antenna length: 16.2 m
Weight: 0.3 kg

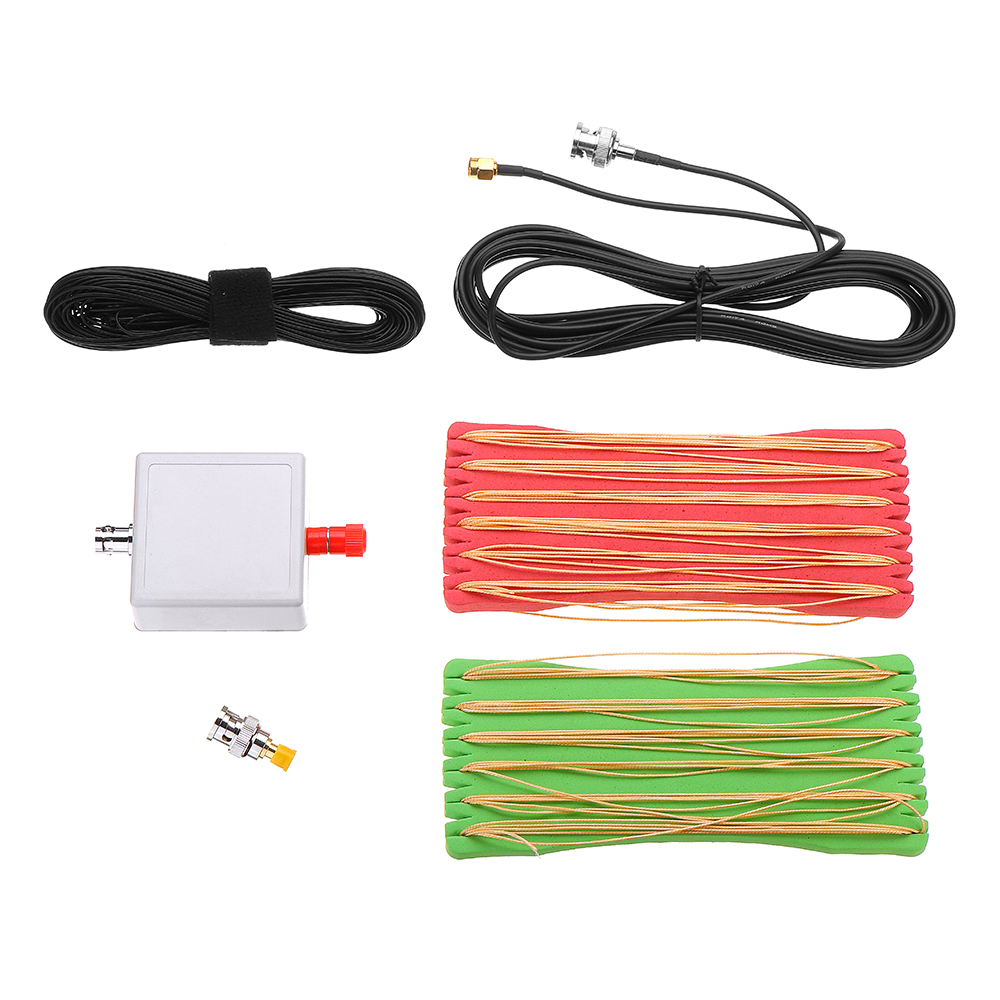

Package Included:

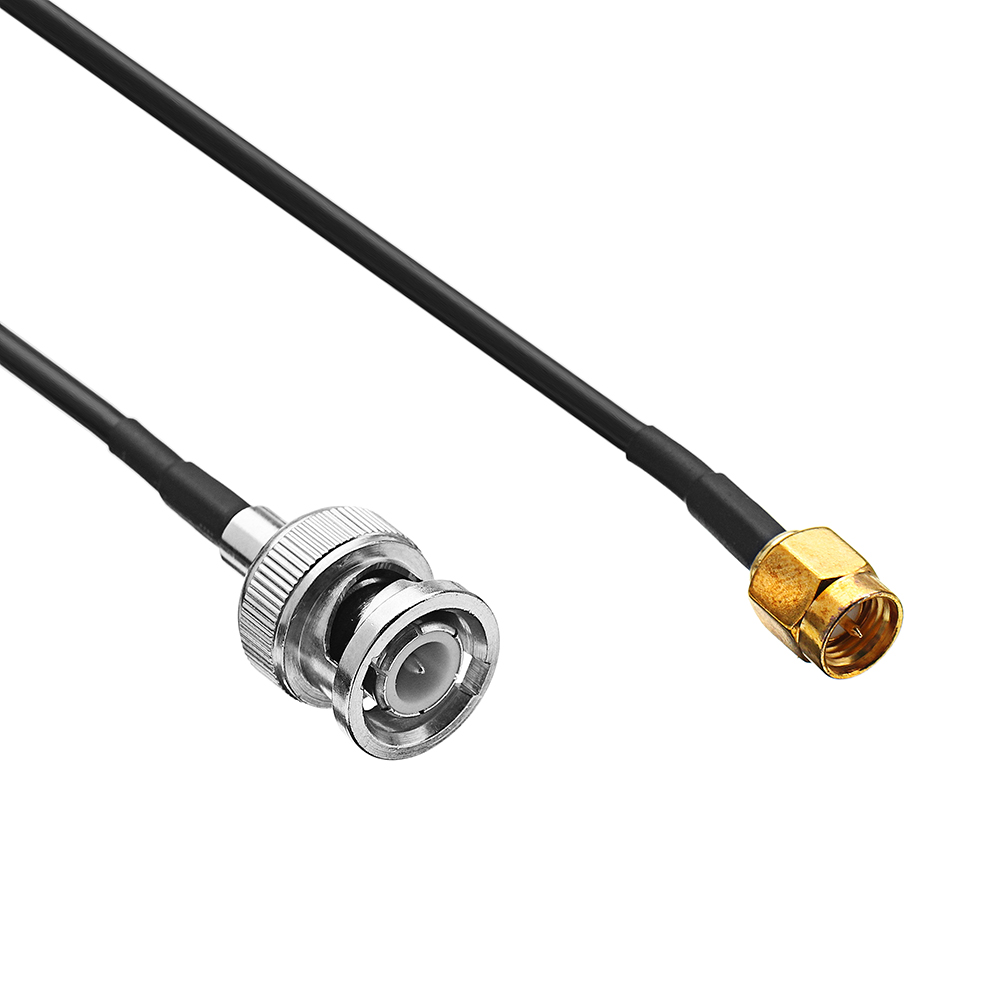

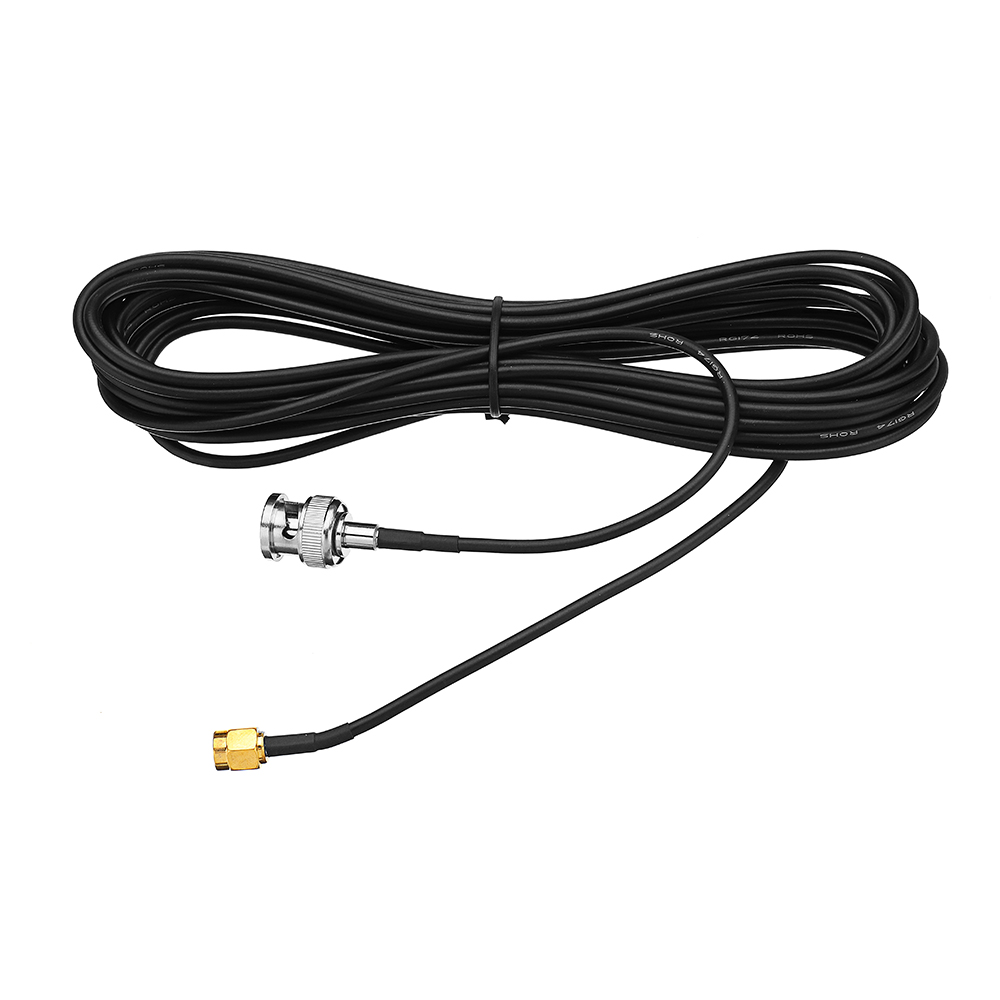

1 x 6M Coaxial Cable
2 x 6M Stay
1 x 16.2M Antenna Vibrator

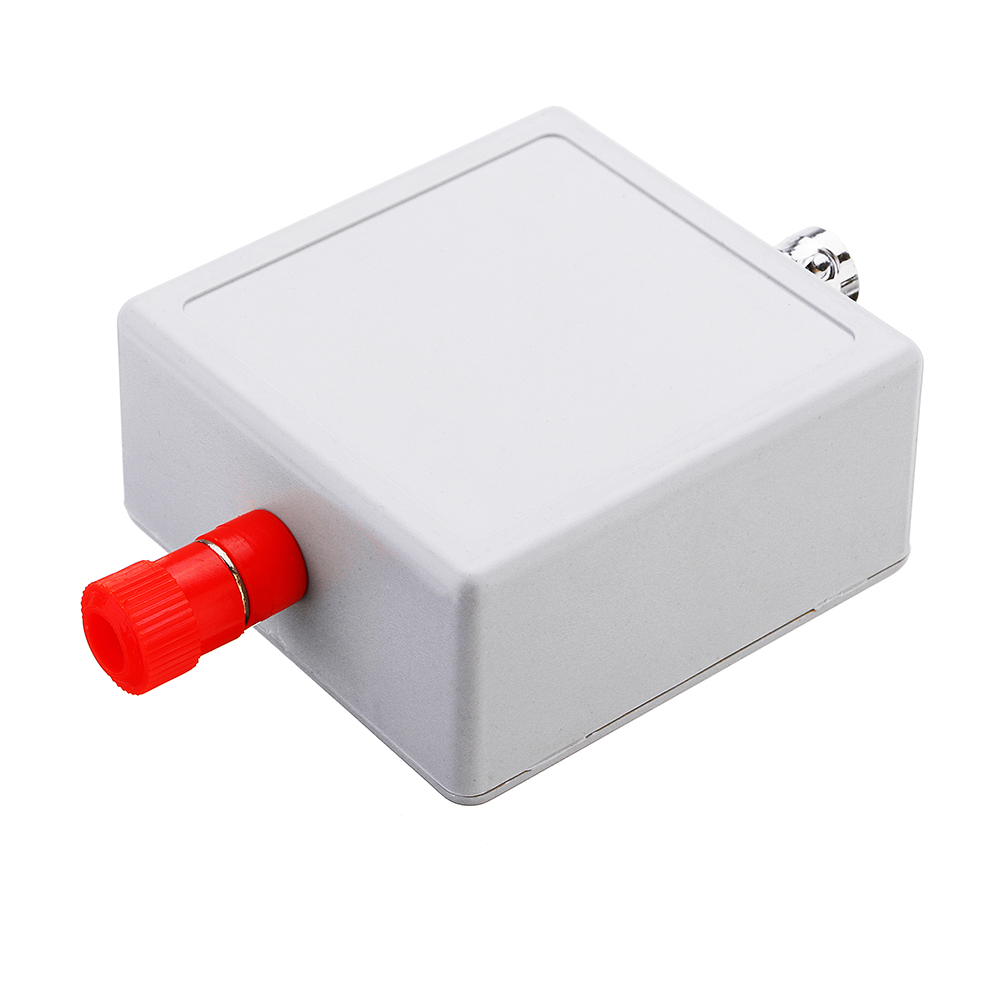

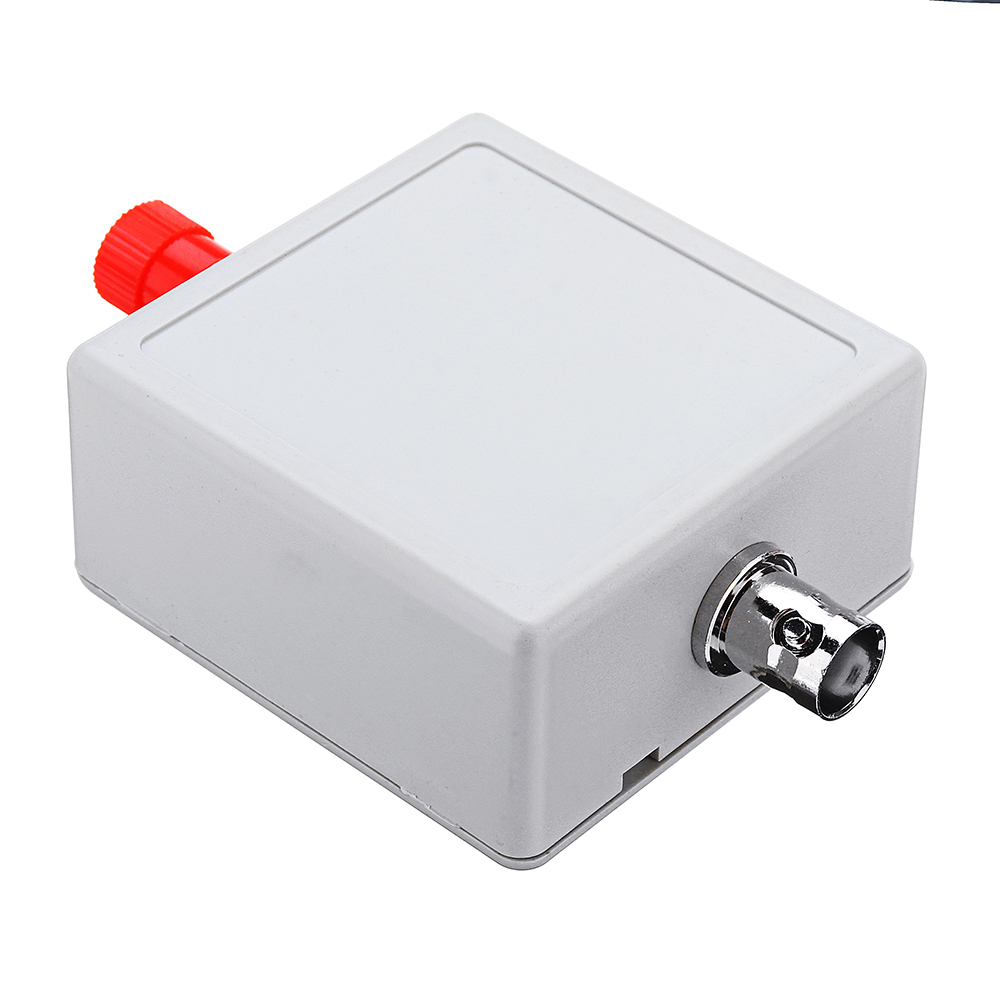

1 x Balun 9:1

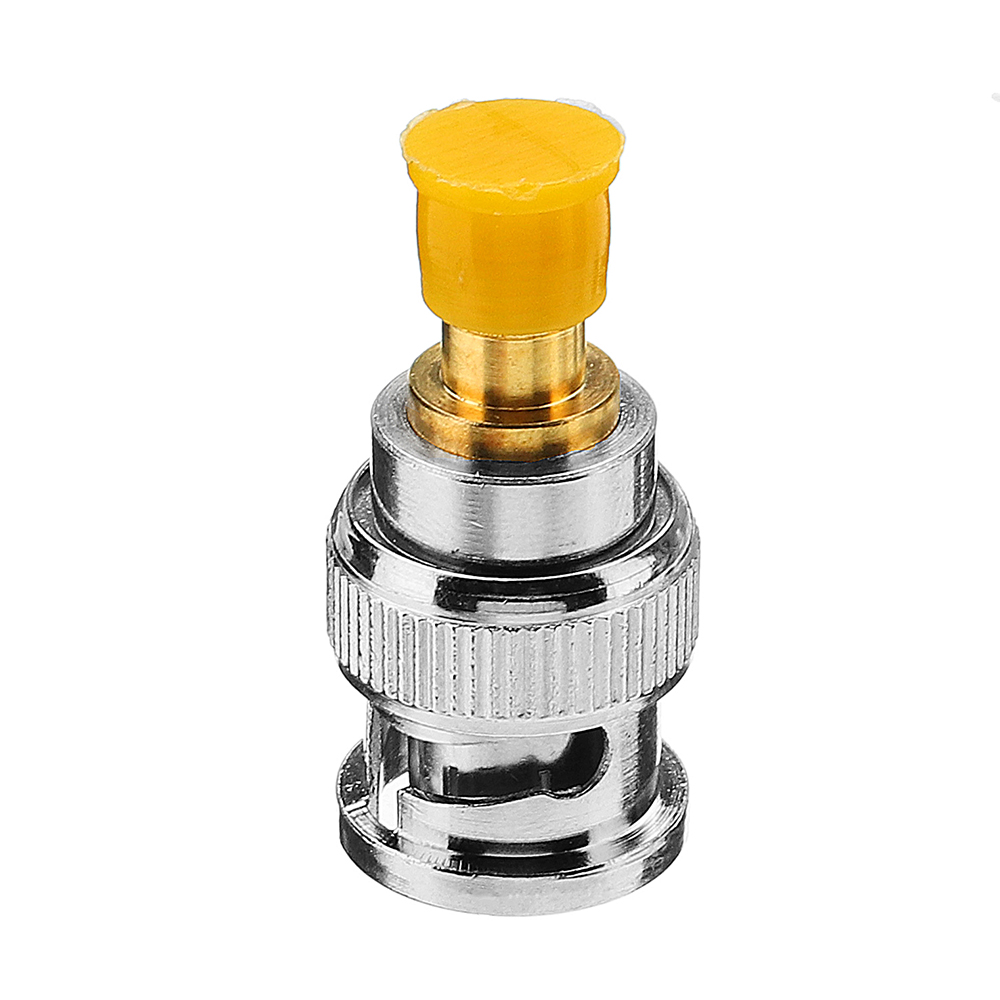

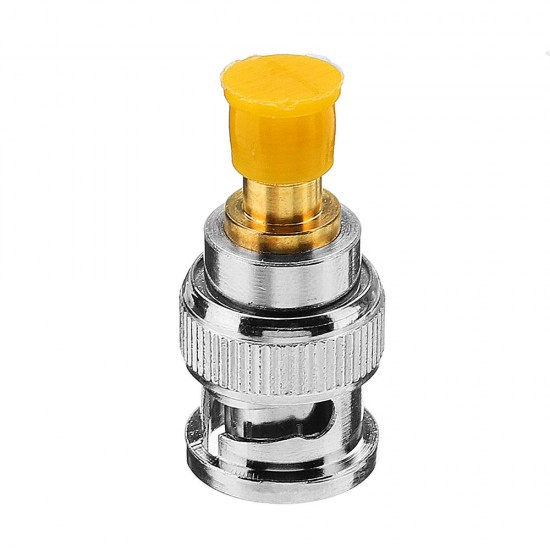

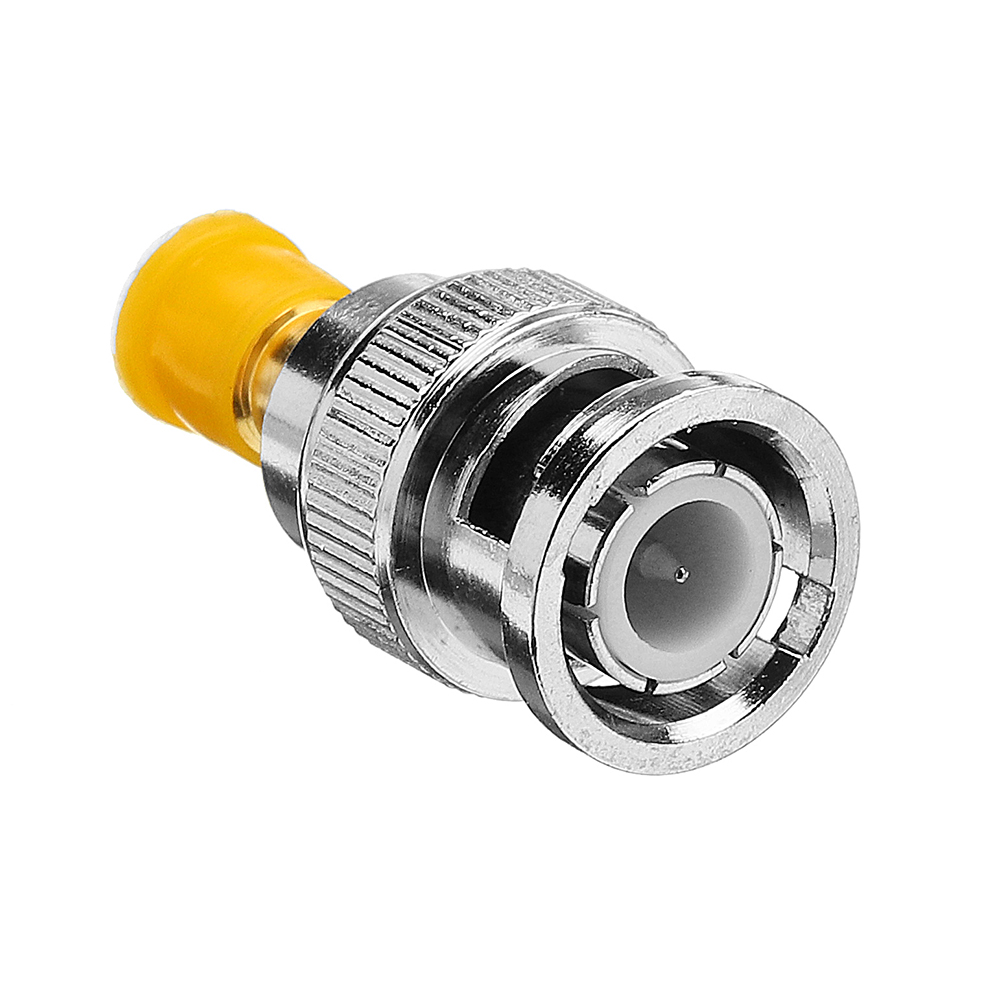

1 x SMA To BNC Connector





LW1650-Portable-Shortwave-Antenna-16-50-MHz-Radio-Tuner-1359620

LW1650-Portable-Shortwave-Antenna-16-50-MHz-Radio-Tuner-1359620

LW1650-Portable-Shortwave-Antenna-16-50-MHz-Radio-Tuner-1359620

LW1650-Portable-Shortwave-Antenna-16-50-MHz-Radio-Tuner-1359620

LW1650-Portable-Shortwave-Antenna-16-50-MHz-Radio-Tuner-1359620

LW1650-Portable-Shortwave-Antenna-16-50-MHz-Radio-Tuner-1359620

LW1650-Portable-Shortwave-Antenna-16-50-MHz-Radio-Tuner-1359620
